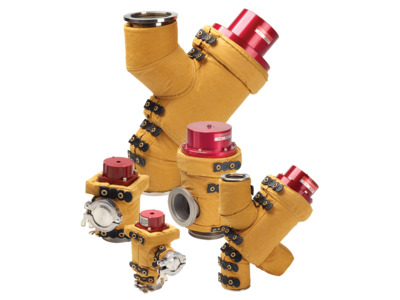

Jalapeño Heated Vacuum Isolation Valves

Jalapeño Vacuum Valves are specifically designed to withstand high internal temperatures to limit process by-product buildup and reduce system maintenance. The valves are specially designed with a thermal barrier between the actuator and the stainless-steel housing, insulating the internal wetted surfaces, greatly improving thermal performance. The Jalapeño Series has a separate thermal barrier located between the valve housing and the valve body. The valves feature spring-to-close, air-to-open pneumatic operation and are available in port diameters ranging from 1 inch to 4 inches. The MKS Jalapeño LoPro™ Series actuator cap is made entirely of a high-quality polymer to provide a superior thermal barrier for the valve housing.

Maintains optimal valve conductance ensuring materials don’t solidify and clog the system
Actuator thermal barrier design improves internal thermal performance and reduces external temperature to safe touch levels
Formed bellows-sealed poppet valve reduces particle trapping resulting in high cycle life

See All Features

Configuration Options

The Jalapeño vacuum valves can be configured/ordered with or without heater jackets, and Jalapeño valve heater jackets can also be ordered separately.

See the Jalapeño Heated Vacuum Isolation Valve datasheet for all product options.

	Description
	JALAPENO-VALVE Jalapeño Vacuum Isolation Valve

Features

Jalapeño Standard & LoPro Valves

Jalapeño Standard Isolation Valves are available in sizes ranging from NW50 - NW100. These valves are suitable for general vacuum isolation where maximum conductance and reliable operation is required. Jalapeño Standard Isolation Valves are also available as two-stage designs with an integrated bypass valve that can be used for soft-pumping.

Jalapeño LoPro Low-profile Isolation Valves are available in sizes ranging from NW25 - NW50. The compact Jalapeño LoPro design, like our unheated LoPro Valves, provides 1,000,000 cycle life operation, a more compact form factor, and a simplified disassembly process for ease of service. Both the Jalapeño Standard and Jalapeño LoPro valves are available in NW50 size.

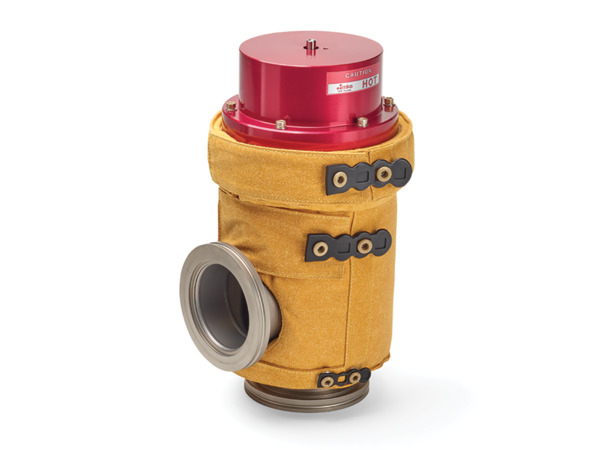

Jalapeño Standard Valve

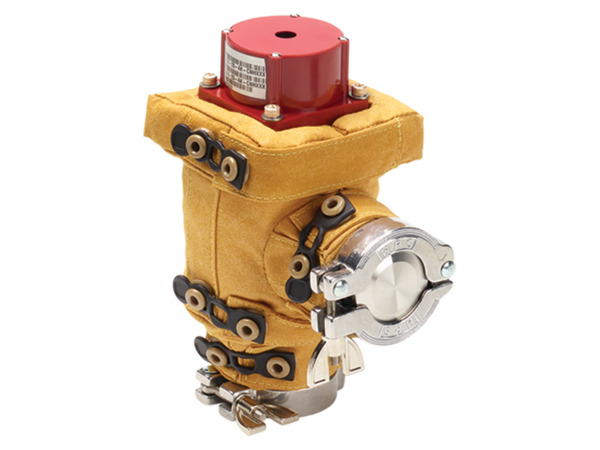

Jalapeño LoPro Valve

For applications where high cycle life is desired Jalapeño LoPro is recommended. For all other applications, Jalapeño Standard is a suitable option.

Jalapeño Thermal Management System

The Jalapeño Vacuum Valves are heated with MKS' Series 49UL Thermal Management System. The heater has a set point temperature of 170°C and typically reaches set point temperature in less than 30 minutes. The heaters can be daisy-chained with integral locking connectors and are available in either polyimide or PTFE-woven materials. The heaters are wired in parallel and independently controlled. A power cord is required for every 10 amps drawn by a chain of heaters.

The S49UL Thermal Management System provides a complete, integrated Thermal Heater Solution for multiple and custom applications.

Specifications

Jalapeño Standard & LoPro Valve Specifications

	Main Valve	ByPass Valve
Vacuum Range	Atmosphere to below 10^-9 Torr	Atmosphere to below 10^-9 Torr
Helium Leak Rate	Less than 1.0 x 10^-9 std cc/sec	Less than 1.0 x 10^-9 std cc/sec
Cylinder Air Pressure	60-100 psig	60-120 psig
Limit Switch Rating, Single Pole, Double Through	5A, 250VAC/5A, 30VDC	n/a
Pneumatic Cylinder Displacement Volume	n/a	0.25 in.³ (4.1 cm³)
Approximate Pneumatic Closing Time	n/a	100 msec
Blow-By Pressure	n/a	47 psia
Maximum Internal Spring Closing Pressure	n/a	40 psia

Jalapeño Standard Valve Specifications

Port Size	Actuator Cylinder Volume	Actuation Opening/Closing Time	Blow By Pressure	Maximium Internal Spring Closing Pressure
2.0 in. (NW50)	13.3 in.³(218 cm³)	1,000/2,000 msec	45 psia	38 psia
3.0 in. (NW80)	27.6 in.³(453 cm³)	2,000/2,000 msec	38 psia	40 psia
4.0 in. (NW100)	27.6 in.³(453 cm³)	2,000/2,000 msec	30 psia	30 psia

Jalapeño LoPro Valve Specifications

Port Size	Actuator Cylinder Volume	Actuation Opening/Closing Time at 100 psi	Blow By Pressure	Maximium Internal Spring Closing Pressure
1.0 in. (NW25)	1.2 in.³(20 cm³)	40/90 msec	80 psia	43 psia
1.5 in. (NW40)	2.2 in.³(36 cm³)	60/90 msec	50 psia	60 psia
2.0 in. (NW50)	6.4 in.³(105 cm³)	160/220 msec	45 psia	38 psia

Accessories

Jalapeño S49UL Heater Power Kits

Description	Compatibility	Price
20021379-001Power Kit, fits Series 49UL Heater Jacket, 8 ft. 120 VAC Cable and Series 49UL Power Adapter	UNIVERSAL	$184
20021381-001Power Kit, fits Series 49UL Heater Jacket, 8 ft. 240 VAC Cable and Series 49UL Power Adapter	UNIVERSAL	$184
20021380-001Power Kit, fits Series 49UL Heater Jacket, 15 ft. 120 VAC Cable and Series 49UL Power Adapter	UNIVERSAL	$184
20021382-001Power Kit, fits Series 49UL Heater Jacket, 15 ft. 240 VAC Cable and Series 49UL Power Adapter	UNIVERSAL	$184

Jalapeño Heater Communications Kits

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		20014265-001Communications Kit, Series 49UL Heaters, Includes Communication Cable and USB Adapter	UNIVERSAL			$184
		20015929-001Communication Kit, Series 49UL Heater, 50 ft. Flying Leads & S49UL Connector	UNIVERSAL			$182

Jalapeño Heater Accessories

Description	Compatibility	Price

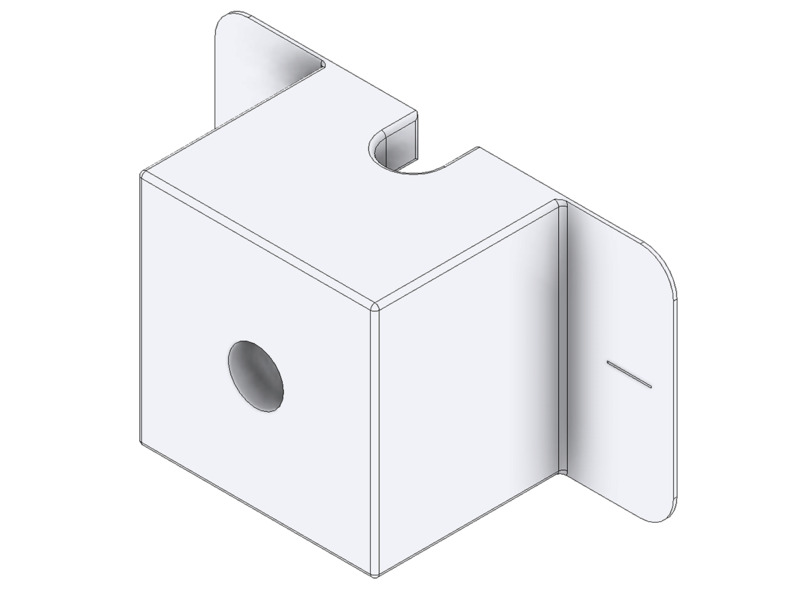

501999-0211Slow Pump Insulator, PTFE	UNIVERSAL	$462

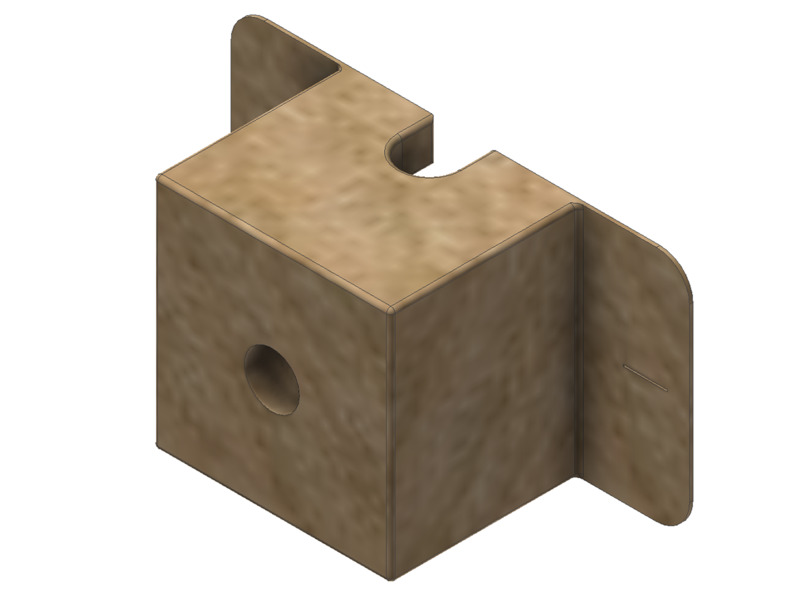

502999-0417Slow Pump Insulator, Polyimide	UNIVERSAL	$414
20018033-001Large Replacement Heater Speed Straps	UNIVERSAL	$14.58
20002133Replacement Heater Speed Straps	UNIVERSAL	$14.58
20003387Controller to Controller Extension Cable, 12 inch	UNIVERSAL	$62
20003388Controller to Controller Extension Cable, 24 inch	UNIVERSAL	$69
20003389Controller to Controller Extension Cable, 36 inch	UNIVERSAL	$75
20003390Controller to Controller Extension Cable, 48 inch	UNIVERSAL	$81
20003610Controller to Controller Extension Cable, 120 inch	UNIVERSAL	$105
20007170-001Controller to Controller Extension Cable, 300 inch	UNIVERSAL	$469
20008474-001Heater to Controller Extension Cable, 12 inch	UNIVERSAL	$113
20008476-001Heater to Controller Extension Cable, 24 inch	UNIVERSAL	$143
20008477-001Heater to Controller Extension Cable, 36 inch	UNIVERSAL	$175
20008478-001Heater to Controller Extension Cable, 48 inch	UNIVERSAL	$206

Jalapeño Standard Valve Spare Parts

Description	Compatibility	Price
100010658Main Valve Rebuild Kit, Chemraz & Viton Seals, Jalapeño Valve, NW50	UNIVERSAL	$1,168
100010656Main Valve Rebuild Kit, Chemraz & Viton Seals, Jalapeño Valves, NW80	UNIVERSAL	$1,817
100010654Main Valve Rebuild Kit, Chemraz & Viton Seals, Jalapeño Valves, NW100	UNIVERSAL	$1,916
100010659Main Valve Rebuild Kit with Chemraz Seal Set, Jalapeño Valves, NW50	UNIVERSAL	$1,582
100010657Main Valve Rebuild Kit with Chemraz Seal Set, Jalapeño Valves, NW80	UNIVERSAL	$2,037
100010655Rebuild Kit, Valve Internals, Chemraz Seals, Jalapeño Heated Main Valve, NW100	UNIVERSAL	$2,464
100001683Limit Switch Kit, 150, 160, V-100, 2-stage Pneumatic Valves, NW50 or NW63	UNIVERSAL	$132
100001684Limit Switch Kit, 150, 160, V-100, 2-stage Pneumatic Valves, NW80	UNIVERSAL	$132
100003663Limit Switch Kit, 150, 160, V-100, 2-stage Pneumatic Valves, NW100	UNIVERSAL	$147
100010643Chemraz and Viton Seal Set, Jalapeño Heated Main Valve, NW50 Port	UNIVERSAL	$252
100010645Chemraz and Viton Seal Set, Jalapeño Heated Main Valve, NW80 Port	UNIVERSAL	$368
100010647Chemraz and Viton Seal Set, Jalapeño Heated Main Valve, NW100 Port	UNIVERSAL	$603
100010642Chemraz Seal Set, for Jalapeño Heated Main Valve, NW50 Port	UNIVERSAL	$609
100010644Chemraz Seal Set, for Jalapeño Heated Main Valve, NW80 Port	UNIVERSAL	$888
100010646Chemraz Seal Set, for Jalapeño Heated Main Valve, NW100 Port	UNIVERSAL	$1,400

Jalapeño Bypass Valve Spare Parts

Description	Compatibility	Price
100010652Bypass Valve Rebuild Kit, Viton & Chemraz Seals, Jalapeño Valves	UNIVERSAL	$397
100010653Valve Rebuild Kit, Viton & Chemraz Seals, Jalapeño Bypass Valve	UNIVERSAL	$384
100010650Bypass Valve Rebuild Kit with Chemraz Seal Set, Jalapeño Valves	UNIVERSAL	$530
100010651Bypass Valve Rebuild Kit with Chemraz Seal Set, Jalapeño Manual Valves	UNIVERSAL	$524
100010649Chemraz & Viton Seal Set, Jalapeño Valve Bypass Stage	UNIVERSAL	$137
100010648Chemraz Seal Set, Jalapeño Bypass Valve	UNIVERSAL	$191

Jalapeño LoPro Valve Spare Parts

Description	Compatibility	Price
100010666Valve Rebuild Kit, Chemraz & Viton Seals, Jalapeño LoPro Valves, NW25	UNIVERSAL	$895
100010667Valve Rebuild Kit, Chemraz & Viton Seals, Jalapeño LoPro Valves, NW40	UNIVERSAL	$949
100010668Valve Rebuild Kit, Chemraz & Viton Seals, Jalapeño LoPro Valves, NW50	UNIVERSAL	$1,200
100010554Valve Rebuild Kit with Chemraz Seal Set, Jalapeño LoPro Valves, NW25	UNIVERSAL	$1,248
100010555Valve Rebuild Kit with Chemraz Seal Set, Jalapeño LoPro Valves, NW40	UNIVERSAL	$755
100010556Valve Rebuild Kit with Chemraz Seal Set, Jalapeño LoPro Valves, NW50	UNIVERSAL	$1,764
100010154Limit Switch Kit, Jalapeño LoPro Valves, NW25	UNIVERSAL	$231
100010155Limit Switch Kit, Jalapeño LoPro Valves, NW40	UNIVERSAL	$163
100010156Limit Switch Kit, Jalapeño LoPro Valves, NW50	UNIVERSAL	$163
100010662Chemraz and Viton Seal Set, Jalapeño LoPro Valve, NW25 Port	UNIVERSAL	$160
100010663Chemraz and Viton Seal Set, Jalapeño LoPro Valve, NW40 Port	UNIVERSAL	$208
100010664Chemraz and Viton Seal Set, Jalapeño LoPro Valve, NW50 Port	UNIVERSAL	$251
100010557Chemraz Seal Set, Jalapeño LoPro Valve, NW25 Port	UNIVERSAL	$409
100010558Chemraz Seal Set, Jalapeño LoPro Valve, NW40 Port	UNIVERSAL	$519
100010559Chemraz Seal Set, Jalapeño LoPro Valve, NW50 Port	UNIVERSAL	$628

Jalapeño Replacement Solenoid Valves

Description	Compatibility	Price
100008539Solenoid Valve, Replacement, 12 VDC, 7 Watt	UNIVERSAL	$111
100008163Solenoid Valve, Replacement, 24 VDC, 7 Watt	UNIVERSAL	$179
100008164Solenoid Valve, Replacement, 24 VAC, 50-60 Hz, 6 Watt	UNIVERSAL	$221
1062179Replacement Solenoid Valve, 100 VAC 50/60 Hz, 6.8 Watts	UNIVERSAL
100008165Replacement Solenoid Valve, 120 VAC, 50-60 Hz, 7.5 Watt	UNIVERSAL	$233
100008166Solenoid Valve, Replacement, 208 VAC, 50-60 Hz, 7.5 Watt	UNIVERSAL	$153
100008167Solenoid Valve, Replacement, 220-240 VAC, 50-60 Hz, 7.5 Watt	UNIVERSAL	$189

Resources

Literature

Jalapeño Heated Vacuum Isolation Valves(4.5 MB, PDF)
