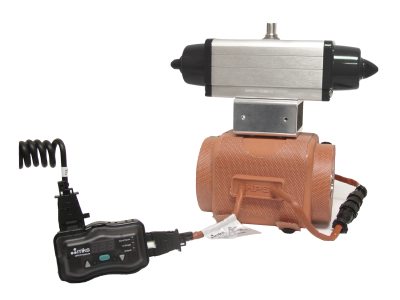

Heated Vacuum Isolation Ball Valve
Overview
Heated Vacuum Isolation Ball Valves are designed with a heater specifically made for the ball. These valves have been designed such that the valve body and actuator are separated by an elongated actuator shaft, allowing the entire valve to not only be heated but insulated from heat loss. The unique ball valve heater covers the entire valve body as well as the heatable stainless steel flange clamps on its ends, protecting from heat loss, maximizing the temperature stability inside the valve.
- KF 40 and KF 50
- Designed with straight-through flow paths and less sensitive to contamination
- Designed for heated use up to 150°C
Products
Configuration Options
Please see the Heated Ball Valve datasheet for available product options.
Specifications
-
TypeHeated Ball Valve
-
Helium Leak RateLess than 1 x 10-9 std.cc/sec
-
Body Materials316L stainless steel
-
SealViton® stem seal standard
Other material available -
SeatTeflon® seats standard
Other material available -
Actuator Operating Pressure80-120 psig
-
Maximum Bakeout Temperature150°C
-
Pre-Set Temperature150°C (302°F)
-
Heater Set Points105°C (221°F)
-
Heater Interior RangeAmbient to 150°C (302°F)
-
Heater MaterialsMolded silicone foam, fiberglass reinforced silicone, Teflon insulated wire
-
Heater Exterior RangeAmbient to 70°C (158°F)
-
Heater Foam Thickness0.5 in. (12.7 mm)
-
Heater ComplianceCE, SEMI S2, UL E52951, cUL E5295
-
Heater ConnectorsMolex Mini-Fit Jr.
-
Heater Weight Range0.5 to 6.2 lb (0.73 to 2.8 kg)
-
Connection Ports1.5 or 2.0 inches, depending on configuration
