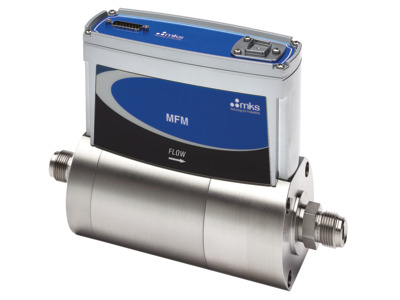

IE500A IP66 Rated Multi-gas, Multi-range Elastomer-sealed 250-500 slm Mass Flow Meter
Overview
IE500A mass flow meters are elastomer-sealed, multi-gas/multi-range MFMs designed for use in harsh environments where resistance to liquid and dust ingress are essential. Applications include those where "hose down" may be required, such as industrial glass production where moisture and particulates are present. With its IP66 rated enclosure, the IE500A MFM meets the stringent requirements of these aggressive environments.Â
The IE500A mass flow meter is capable of being ranged from 250 slm to 500 slm (N2 equivalent). The multi-gas/multi-range capability, along with tight performance specifications for accuracy, allow users to minimize inventory of high flow MFM part numbers.
- IP66 rated enclosure provides protection against water & dust in harsh environments
- Tightly controlled flow accuracy of process gas improves process matching
- Multi-gas/multi-range capability reduces MFM inventory
Products
Configuration Options
The following options are available for IE500A Mass Flow Meters
Ordering Code Example: IE500A013505TBR320
|
Configuration Option |
Option Code |
|---|---|
| IE500A Mass Flow Meter | IE500A |
Gas (Per Semi Standard E52-0703) |
|
| Helium (He): 350-700 slm | 001 |
| Argon (Ar): 250-500 slm | 004 |
| Hydrogen(H2): 250-500 slm | 007 |
| Nitrogen (N2): 250-500 slm | 013 |
| Other Gas Options | See Here |
Flow Range Full Scale |
|
| 500 slm (500,000 sccm) | 505 |
Fittings (compatible with) |
|
| 12 mm Swagelok | L |
| 0.5 in. tube compression | S |
| 0.75 in. tube compression | Z |
| 0.5 in. NPT female | M |
| 0.75 in. NPT female | N |
| 8 VCR male | T |
| 8 VCO male | D |
Connector |
|
| Profibus | 4 |
| PROFINET | 9 |
| 15 pin D (Analog 0-5 VDC I/O) | B |
| 15 pin D (4-20 mA I/O) | G |
Seal Materials |
|
| Viton® | V |
| Buna | B |
| Neoprene® | N |
| EPDM | E |
Valve/Device Type |
|
| Mass Flow Meter | 3 |
Firmware |
|
| MKS will ship firmware revision current to date | 20 |
* For gases not listed in the standard products gas table, please contact the MKS applications department for assistance.
** The Full Scale flow rate is designated by a 3 digit number. The first two digits represent the significant digits of the Full Scale flow rate separated by a decimal point. The third digit is the exponent of the power of ten. Example flow rate code: 255 is 2.5 x 105Â sccm or 250 slm; 105 is 1.0 x 105Â sccm or 100 slm
Specifications
-
TypeMass Flow Meter (MFM)
-
Full Scale Flow Range250-500 slm
-
Measurement Range0.2-100 % Full Scale (range on mech.)
-
Fitting TypeCompatible with:
12 mm Swagelok
0.5 in. tube compression
0.75 in. compression
0.5 in. NPT female
0.75 in. NPT female
8 VCR male
8 VCO male -
ConnectorProfibus
PROFINET
15 pin D (Analog 0-5 VDC I/O)
15 pin D (4-20 mA I/O) -
Maximum Inlet Pressure150 psig
-
Burst Pressure1500 psig
-
Typical Accuracy±1% of Reading (with N2 calibration gas)
-
Repeatability±0.5% of Reading
-
Resolution0.1% of Full Scale
-
Zero Temperature Coefficient<0.05% of Full Scale/°C
-
Span Temperature Coefficient<0.08% of Reading/°C
-
Inlet Pressure Coefficient<0.03% of Reading/psi
-
Warm-up Time1 hour
-
Operating Temperature10-50°C
-
Storage Humidity0 to 95% relative humidity, non-condensing
-
Storage Temperature-20° to 65°C (-4° to 149° F)
-
External Leak Integrity<1 x 10-9
-
Seal MaterialViton®
Buna
Neoprene®
EPDM -
Wetted Materials316L S.S.
-
Surface Finish20μ inch average Ra
-
Enclosure RatingIP66
-
Power Requirements15-24 VDC @ (<4 watts)
-
Flow Input Output SignalVoltage (0-5 VDC)
Current (4-20 mA) -
Analog I/O Connector15 pin Type D male
-
Weight<10.8 lbs (4.9 kg)
-
ComplianceCE
