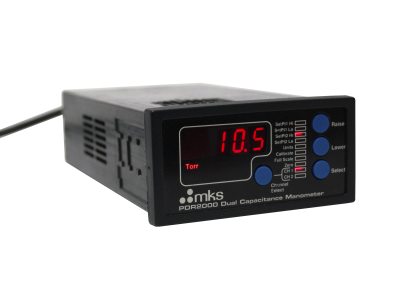

PDR2000A Two-Channel Digital Power Supply and Readout
Overview
The PDR2000A is a versatile, low cost solution for powering and displaying up to two (2) Baratron® transducers. Both instruments are simultaneously powered, so users may alternate between readings with the press of a button. Readings are also available on demand via the RS-232 interface.
- Low cost solution for powering and displaying two Baratron® transducers
- 0.75 Amp power supply supports up to two heated manometers
- Two process relay set points
- Linear analog output and RS-232 interface
Products
Specifications
-
DisplayDigital, 4-place Red LED
-
Display UnitsTorr/mTorr, or mbar/microbar
-
Number of Channels2
-
Power Requirements110-240 VAC; 47-63 Hz, 40 VA
-
Input Signal0 to 10 VDC
-
Output Power±15 VDC @ 750 mA
-
Output SignalAnalog:
0-5VDC output each channel (0.5VDC per decade (based on displayed value)
0-10VDC each channel (duplicate of the input)
Digital:
RS232 (9600 baud, 8 data bits, no parity, 1 stop bit) -
Communication ProtocolRS-232 (9600 baud, 8 data bits, no parity, 1 stop bit)
-
Trip Points2 fully programmable trip points
-
Trip Point Relay Ratings2 Amps @ 30 VDC
-
For Use WithMKS Instruments type 628 (one only), 622, 623, 624, 627, 722, 750, 850, 852, 870, 872, 223 (unidirectional only) capacitance manometers
-
ControlsGauge Select, Full Scale Adjust, Calibrate, Zero, Set Point 1 High, Set Point 1 Low, Set Point 2 High, Set Point 2 Low, Torr/mbar Select
-
Operating Temperature2° - 50°C
-
Weight1 lb
-
Dimensions94 mm x 47 mm x 165 mm
-
Mounting1/8 inch DIN enclosure
-
ComplianceEMC Directive 2014/30/EC
RoHS Directive 2011/65/U
Features
Resources
Drawings & CADs
- PDR2000A Vaccum Gauge Controller Dimensional Drawing (49.8 kB, PDF)
Literature
- PDR2000 Digital Power Supply and Readout (136.7 kB, PDF)
- Analog 600 Series Absolute Baratron® Capacitance Manometer Selection Guide (2.9 MB, PDF)
