Temperature Converters
Overview

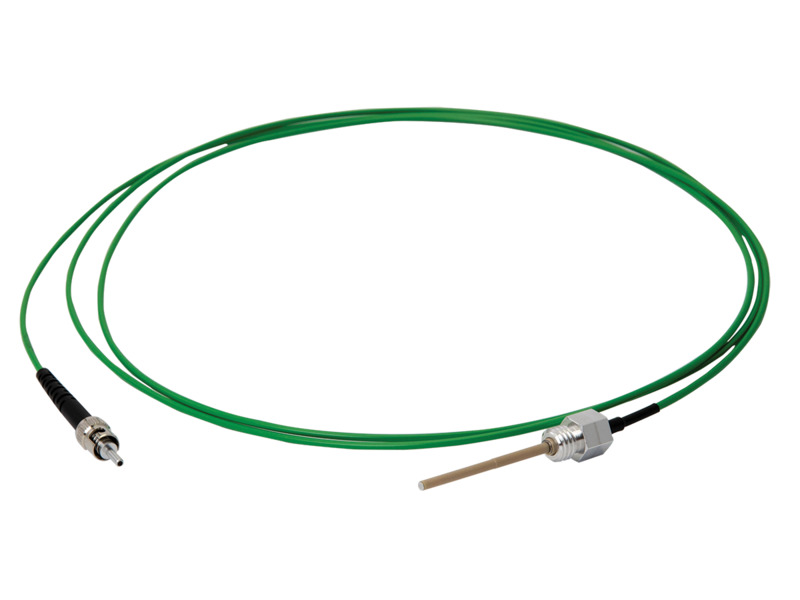

MKS’ fiber optic multichannel temperature converters are compatible with all fiber optic sensor probes and offer industry leading accuracy, repeatability, and reliability for temperature monitoring applications.
- Highly accurate and repeatable across full temperature range
- Probes and converters are fully interchangeable
- Systems do not require recalibration
- Excellent sensor-to-sensor precision
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

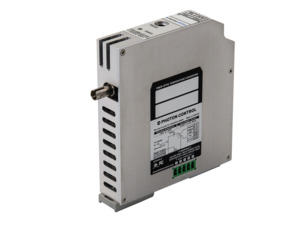

FTC-DIN-GT Temperature Sensor Converter, Single Channel |
|
|||||
|

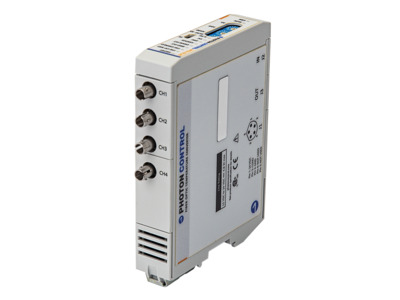

FTC-MC5 Temperature Converter, Multichannel |
|
Specifications
| Models |
|
|
|
|---|---|---|---|
| Number of Channels | 1 to 5 | 1 | |
| Communication Protocol | Modbus® RTU, Analog or EtherCAT® | Modbus® RTU and Analog | |
| Analog Output | 4-20 mA (16-bit DAC) | 4-20 mA (16-bit DAC) | |
| Stability | ±0.1ºC (2σ) | <0.3°C over 100s at 1 Hz (2σ) | |
| Input Power | 24 VDC | 24 VDC | |
| Dimensions | 141 mm H x 25 mm W x 100 mm D | 114 mm H x 22.5 mm W x 98 mm D | |
| Operating Temperature Range | 5-60ºC | -20 to 60°C |
Resources
Literature
- Single Channel Temperature Converter (FTC-DIN-GT) (634.9 kB, PDF)
- Multichannel Temperature Converter (FTC-MC5) (664.4 kB, PDF)
