MultiTherm™ 2000 Temperature Controller
Overview

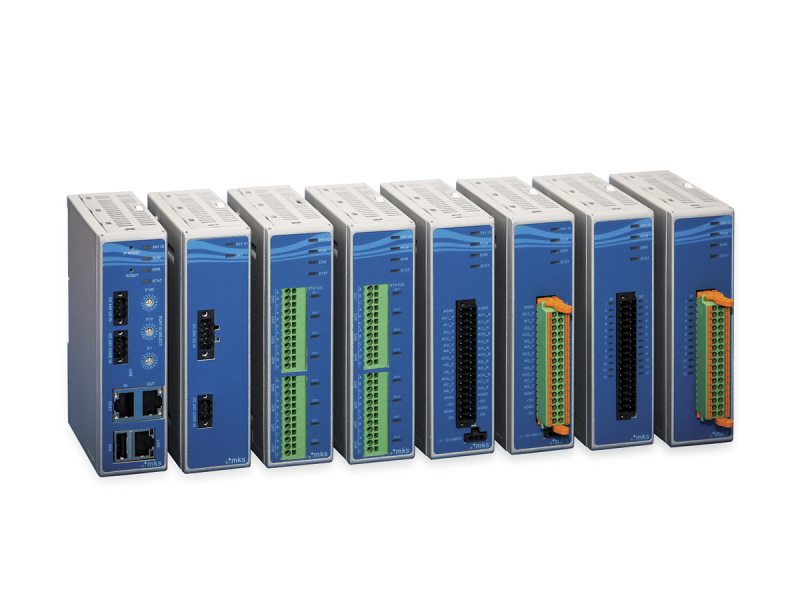

MultiTherm™ 2000 Modular Temperature Controller provides a modular architecture based on the MKS Automation Platform for temperature control that can be easily configured for single zone or multi-zone temperature control applications. MultiTherm™ 2000 Controller can be used as a standalone temperature controller or it can be easily integrated with a PLC or control system, with support for standard fieldbus and control networks, such as EtherCAT® or Modbus TCP/IP.
- High Accuracy, high stability sensing supporting TC's and RTD's
- Fast acting, dynamic outputs using phase-fire and zero crossing methods
- Independent PID loops or coordinated loops using Model Based Control (MBC)
- Supports custom control algorithms without disclosure of source code
- Hardware & software-based Safety Interlocks, custom power distribution with protection and heater health monitoring
Products
Configuration Options
Specifications
-
TypeModular Temperature Controller
-
Dimensions85 mm high (4.9 inches) x 124 mm deep (3.3 inches) x 35 mm wide (1.4 inches)
-
Network ProtocolTCP/IP, ModbusTCP EtherCAT® Slave supporting PDO and Mailbox (CoE and FoE) Serial 115,200 baud rate - Shell command interface (not available currently)
-
Temperature Range0 to 850°C depending on type of sensor used
-
Channels8 sensor input channels supporting RTD's and Thermocouples
RTD's (PT100, PT1000, 3-wire)
T/C's (J, K, T, E, R calibrated)

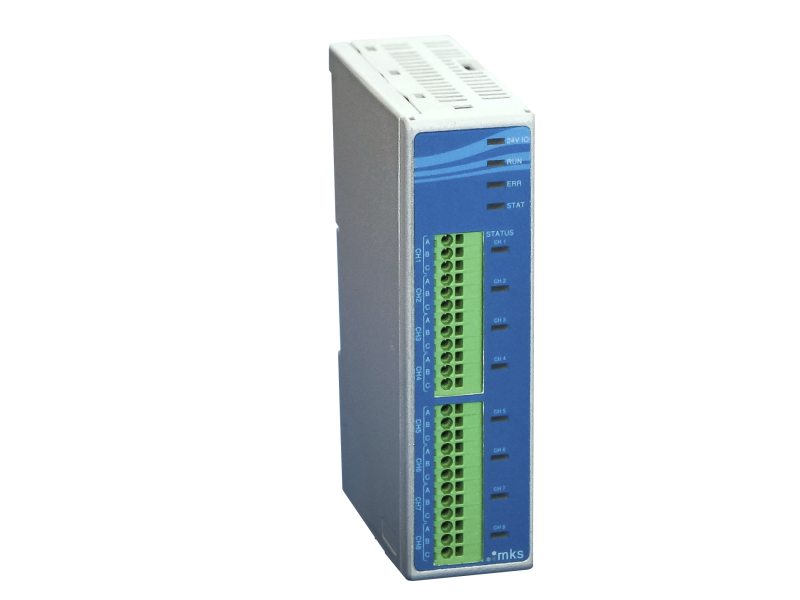

per Temperature Input Module -
Accuracy±0.8°C (typical TC's excludes sensor accuracy)
±0.1°C (typical RTD's excludes sensor accuracy) -
Data Acquisition Speed10 - 625 ms (configurable)
-
Temperature Resolution0.01°C
-
RepeatabilityBetter than 0.1°C depending on sensor type and temperature range
-
Factory Calibration12 months typical, depending on sensor type, temperature range and required accuracy
-
Control MethodControl via EtherCAT Master PID with auto-tuning
Control via Modbus Master PID with auto-tuning
Open loop manual control of outputs
Model Based Control (optional) -

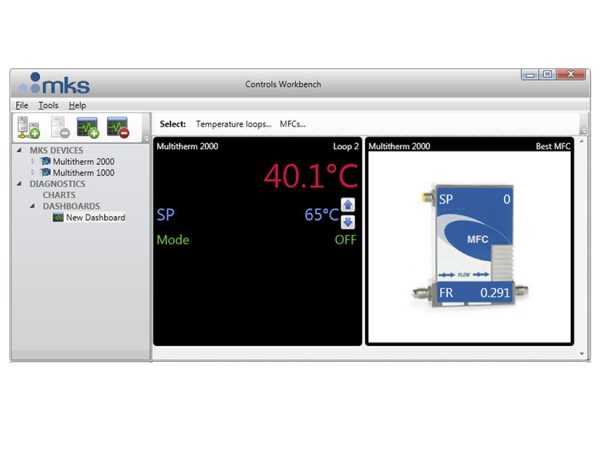

SoftwareEtherCAT Configurators (i.e. TwinCAT, KPA Studio) (not supplied with product)
-
MountingDIN rail
-
Operating Temperature0 to +50°C
-
Humidity0-85 % RH, no condensation
-
ComplianceCE
Features
Resources
Manuals
- MKS PAC 100 Modbus® & EtherCAT® Manual Addendum for AS11870G (469.9 kB, PDF)
- MultiTherm™ 2000 Temperature controller Manual (2.9 MB, PDF)
Literature
- MultiTherm™ 2000 Modular Temperature Controller (299.8 kB, PDF)
