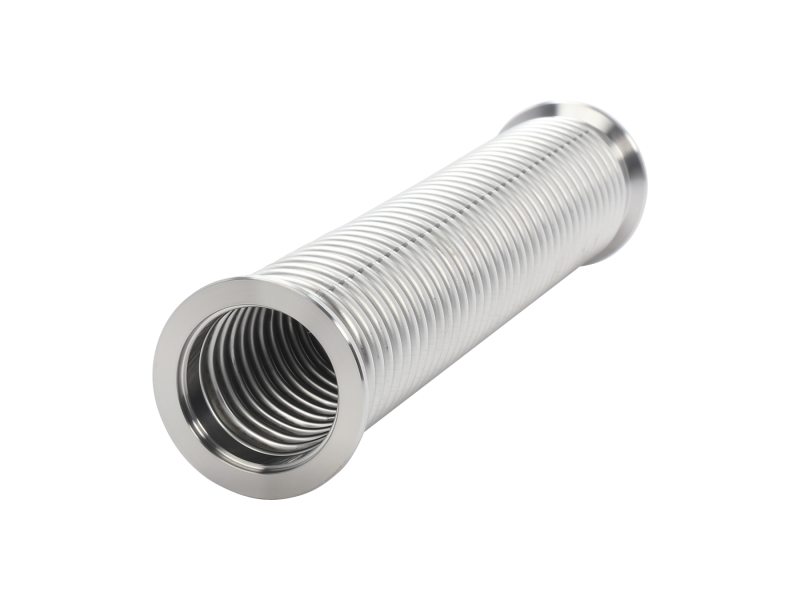

ISO-KF Thin Wall Metal Vacuum Hose
Model: 100317415
ISO-KF Thin Wall Metal Vacuum Hose
Model: 100317415
Overview
Overview
The 100317415 Thin Metal Wall Vacuum Hose is 9.84 inch (250 mm) in length with size NW40 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 2 1/2 inch static bend radius and can be compressed to a 6.23 in. (158 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW40
- Wall Thickness0.006 in. (0.15 mm)
- Free Length9.84 in. (250 mm)
- Compressed Length6.23 in. (158 mm)
- Static Bend Radius2.5 in.
- Spring Rate8.6 lb/in.
- Dimension "A"9.84 in.
- Dimension "B"6.23 in.
