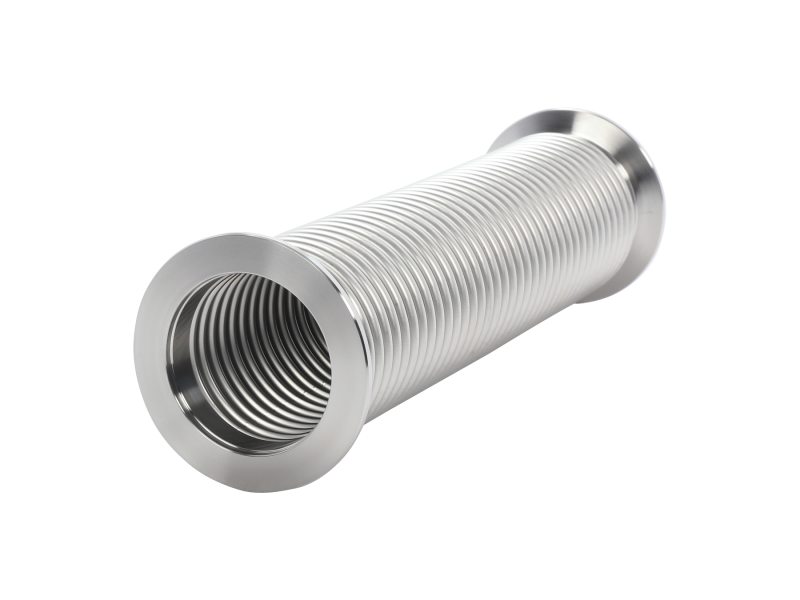

ISO-KF Thin Wall Metal Vacuum Hose
Model: 100317416
ISO-KF Thin Wall Metal Vacuum Hose
Model: 100317416
Overview
Overview
The 100317416 Thin Metal Wall Vacuum Hose is 9.84 inch (250 mm) in length with size NW50 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 3 1/4 inch static bend radius and can be compressed to a 7.05 in. (179 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Wall Thickness0.006 in. (0.15 mm)
- Free Length9.84 in. (250 mm)
- Compressed Length7.05 in. (179 mm)
- Static Bend Radius3.25 in.
- Spring Rate13 lb/in.
- Dimension "A"9.84 in.
- Dimension "B"7.05 in.
