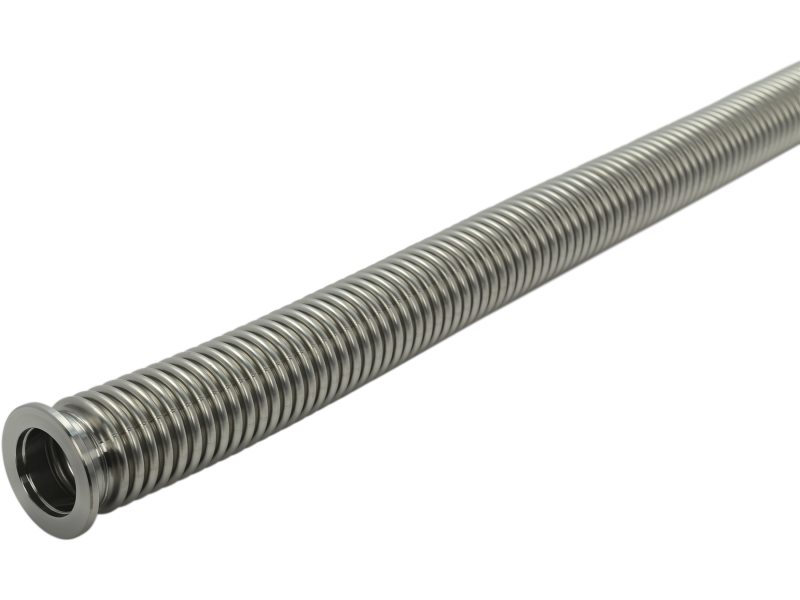

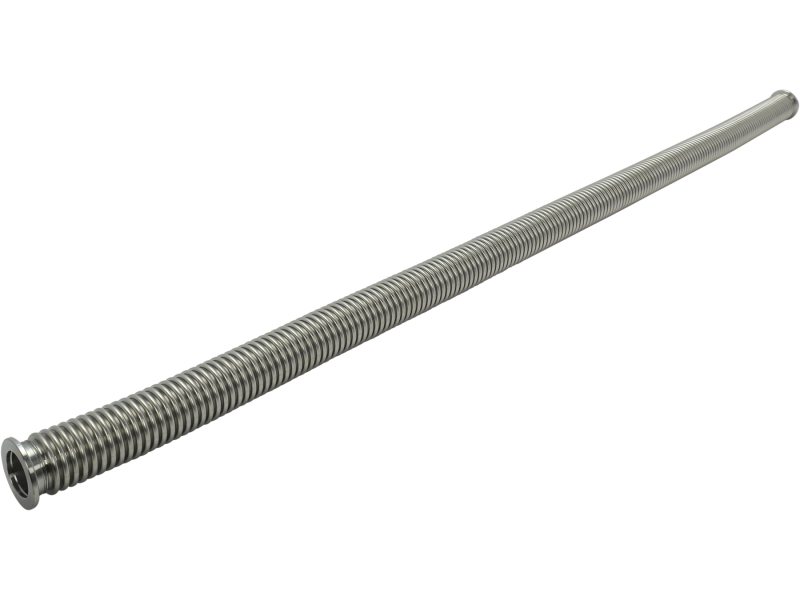

ISO-KF Thin Wall Metal Vacuum Hose
Model: 100317443
ISO-KF Thin Wall Metal Vacuum Hose
Model: 100317443
Overview
Overview
The 100317443 Thin Metal Wall Vacuum Hose is 39.40 inch (1000 mm) in length with size NW25 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 1 3/8 inch static bend radius and can be compressed to a 24.1 in. (613 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- Wall Thickness0.006 in. (0.15 mm)
- Free Length39.40 in. (1000 mm)
- Compressed Length24.10 in. (613 mm)
- Static Bend Radius1.375 in.
- Spring Rate3.4 lb/in.
- Dimension "A"39.40 in.
- Dimension "B"24.10 in.
