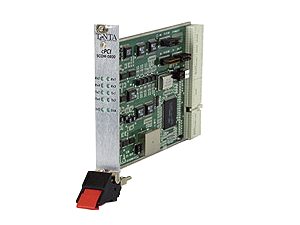

CompactPCI Serial Communication Cards
Model: AS00801-01
CompactPCI Serial Communication Cards
Model: AS00801-01
Overview
Overview
The AS00801-01 3U Serial Communications Card features 8 channels and is designed as general-purpose CompactPCI (cPCI) serial communication cards with standard RS-232 and RS-485 ports. Protocol is jumper selectable per channel. The I/O and power signals are distributed through J2 rear connector. The board form factor, physical dimensions and BUS interface comply with CompactPCI (cPCI) Specification PICMG® 2.0 R2.1.
Technical Specs
- TypeSerial Card
- BusCompact PCI, 32 bit (16 bit data transfer) 33MHz
- Channels8
- Plug and PlaySupports auto-recognition of board on power-on and plug-in, includes Device ID, Vendor ID, and configuration
- Power RequirementsDigital Section: +5 VDC @ 800 mA from J1, I/O Section: +5 VDC @ 300 mA generated on board by DC/DC (1.5 W)
- Form FactorPlug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
- Front Panel Dimension128.5 x 20.32 x 2.5 mm (height x depth x thick)
- PCB Dimensions100 x 160 x 1.6 mm (3.9370 x 6.2992 x 0.0629 in.) (height x depth x thick)
- Size3U
- Rear ConnectorsMetric 2.0mm grid, female connector type A is used for J1 (cPCI BUS) and J2 (Signal distribution).
- Front Panel Indicators5V Bus, 5V Isolated, Tx and Rx for each channel
- IsolationOpto-isolation, Min 1500V
- VoltageTTL
- Current±20 mA
- Operating Temperature0 - 70°C
- Storage Temperature-40 - 85°C
- Humidity5 - 95% non-condensing
- Weight200 g (0.44 lb)
