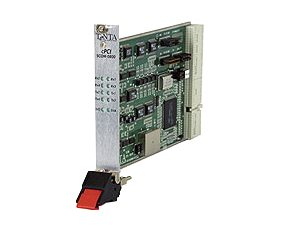

CompactPCI Serial Communication Cards
CompactPCI Serial Communication Cards
Our serial communications cards are designed as general-purpose CompactPCI (cPCI) communication cards with standard RS-232 and RS-485 ports. Protocol is jumper selectable per channel. The I/O and power signals are distributed through J2 rear connector. The board form factor, physical dimensions and BUS interface comply with CompactPCI (cPCI) Specification PICMG® 2.0 R2.1.
- 3U or 6U CompactPCI form factors
- All channels are optically isolated
- Rear signal transition cards are available See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AS00800-01Serial Communications Card, 4 Channel, 3U, cPCI, RS-232, RS-422, RS-485 | |||||
| AS00801-01Serial Communications Card, 8 Channel, 3U, cPCI, RS-232, RS-422, RS-485 |
Resources
Literature
3U CompactPCI® Serial Communication Card(206.6 kB, PDF)
Manuals
SCOM-080x Serial Communication Card Manual(148.4 kB, PDF)
