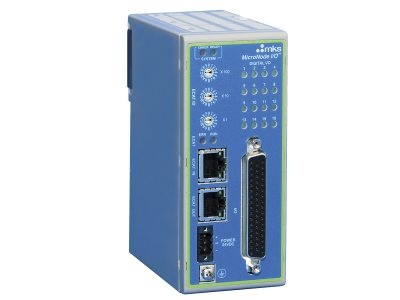

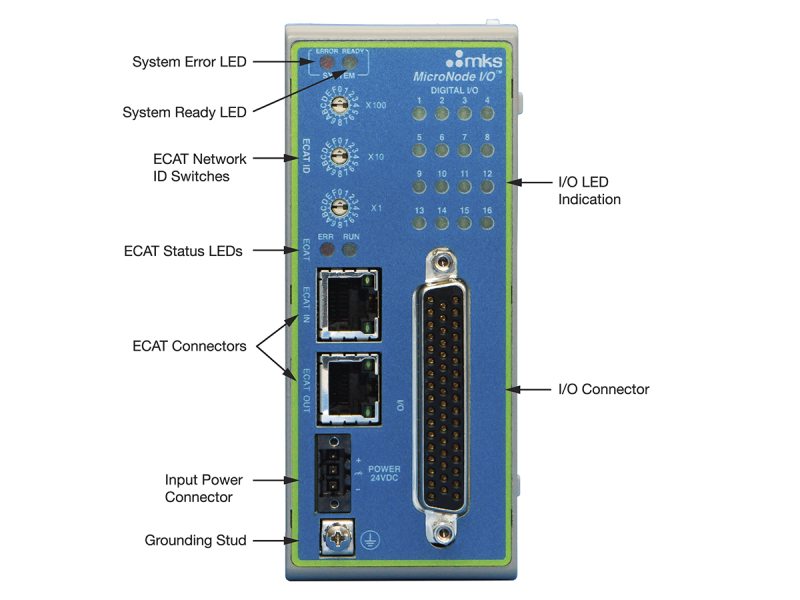

AS08482G-06
Networked IO, MicroNode, EtherCAT, Combo IO, Digital Sink
$661
AS08482G-06 Networked IO, MicroNode, EtherCAT, Combo IO, Digital Sink $661

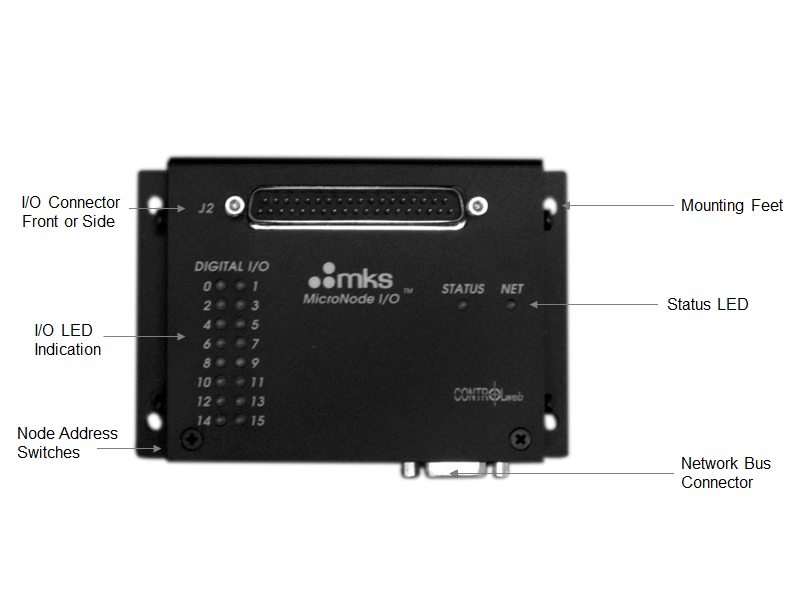

MicroNode I/O for DeviceNet-based fieldbus networks

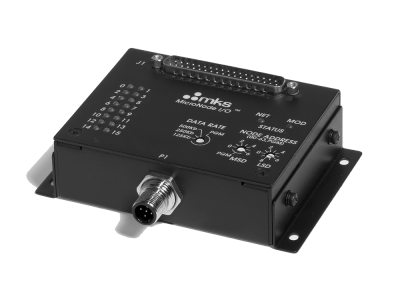

AS00124R-08
Networked IO, MicroNode, DeviceNet, Combo IO, Digital Sink, Front Connector
$738
Contact Us
 AS00124R-08 Networked IO, MicroNode, DeviceNet, Combo IO, Digital Sink, Front Connector
Contact Us
 $738

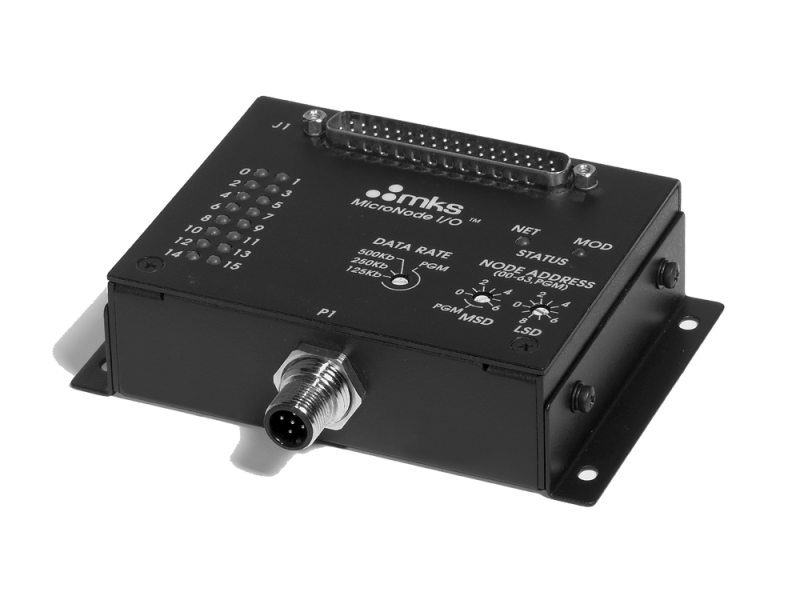

MicroNode I/O for DeviceNet-based fieldbus networks
AS00127R-08
Networked IO, MicroNode, DeviceNet, Combo IO, Digital Source, Front Connector
$870
Contact Us
 AS00127R-08 Networked IO, MicroNode, DeviceNet, Combo IO, Digital Source, Front Connector
Contact Us
 $870

Specifications

  • Type
    Compact Networked I/O
  • Power Requirements
    Minimum for Network and CPU: 24 VDC, 120 mA
    AIO Power: Internal ±15 VDC; 50 mA.
  • Digital I/O
    DIDO: Each point either digital input or output (except for Profibus Combo)
    Inputs: Optocoupler, 1.5 mA minimum, 1.5 msec filtering
    Outputs: Open collector, 200mA maximum/channel
    Max Output Current: 800 mA maximum on DIO 0-7, 800 mA maximum on DIO 8-15
    Isolation: 500V optical isolation between CPU and digital I/O
  • Analog Input
    Inputs: Single-ended analog inputs
    Input Range: Software selectable (0 to 10 V), (-5 to +5 V)
    Resolution: 12-bit; 16-bit (ECAT MicroNode model only)
    Filtering: 16 Hz
    Protection: ±15 V over-voltage protection
    Non-linearity: ±3 bit (0.0732%)
    Offset Error: ±10 mV (0.2%)
    Gain Error: ±0.5%
    Impedance: 10 kOhm minimum at 10 V
  • Analog Output
    Outputs: Single-ended analog outputs
    Output Range: -10 to +10V
    Resolution: 12-bit; 16-bit (ECAT MicroNode model only)
    Output Current: 5 mA/channel into a 2 kOhm load
    Offset Error: ±2 LSB (~5 mV)
    Gain Error: ±0.4%
  • Front Panel Indicators
    Network, Module: DeviceNet bi-color (red/green) status LEDs
    Digital I/O Points: Green status LEDs
    Rotary Switches: Node Address, Baud Rate (DeviceNet only)
  • Operating Temperature
    0 to +55°C
  • Storage Temperature
    -40 - 85°C
  • Humidity
    5 to 95% non-condensing
  • Weight
    0.44 lb (200 g)
    0.661 lb (300 g) ECAT MicroNode model only
  • Dimensions
    3.150 x 4.724 x 1.142 in. (80 x 120 x 29 mm)
    4.921 x 2.066 x 3.633 in. (125 x 52.5 x 92.3 mm) ECAT MicroNode model only
