307 Bayard-Alpert Vacuum Gauge Controller
Overview

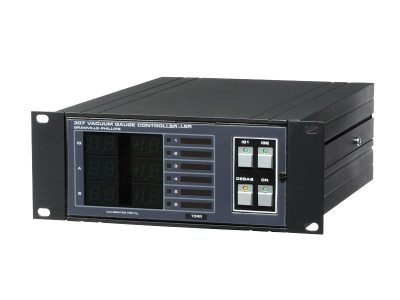

The Granville-Phillips® 307 Bayard-Alpert Vacuum Gauge Controller measures pressure, and utilizes pressure-related outputs to control a variety of vacuum system functions and processes. To fit a wide range of applications, the 307 Bayard-Alpert Vacuum Gauge Controller is available in a variety of configurations and prices. In its simplest form the 307 Bayard-Alpert Vacuum Gauge Controller runs a single ionization vacuum gauge in the range from 1 x 10-10 to 1 x 10-1 Torr.

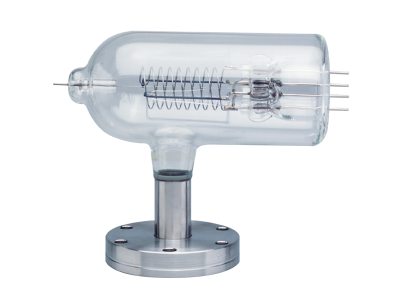

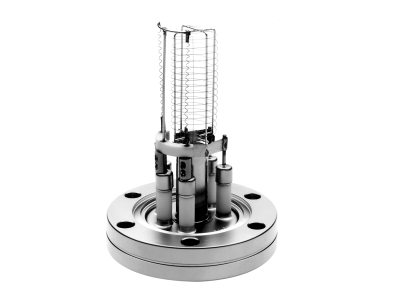

- Operates MKS Granville-Phillips® 274 Bayard-Alpert Ionization Vacuum Gauges
- Sequential operation of a second ionization gauge
- Up to six process control set points are available
- Increased reliability due to conservative design and cooler operating temperature
- Electric shock danger significantly reduced by using only low voltage circuits
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
307501-000-M3 | $2,447 |
|
||||
|
|
307501-000-M4 | $2,447 |
|
||||
|
|
307501-000-T1 | $2,447 |
|
||||
|
|
307501-010-P1 | $3,108 |
|
||||
|
|
307501-A00-T1 | $3,014 |
|
||||
|
|
307501-B0A-T1 | $2,675 |
|
||||
|
|
307501-B1B-T1 | $4,410 |
|
||||
|
|
307502-000-M3 | $2,510 |
|
||||
|
|
307507-000-P1 | $2,919 |
|
||||
|
|
307507-D1B-T1 | $4,568 |
|
||||
|
|
307508-000-T1 | $3,014 |
|
Specifications
-
TypeBayard-Alpert Gauge Controller
-
Lower Measurement Limit1 x 10-10 Torr with 10 mA emission and tube sensitivity of 10/Torr
-
Upper Measurement Limit0.1 Torr with 0.1 mA emission and tube sensitivity of 10/Torr
-
Pressure Range7 decades within above limits for given emission setting and tube sensitivity
-
DisplayDigital (green LED)
-
Display Update Rate0.5 second typical
-
UnitsTorr, mbar, Pascal (user-selectable)
-
Power Requirements100/115/230 ±10% VAC (user-specified), 250 watts, 50 or 60 Hz
-
Communication ProtocolOptional: RS-232 or RS-485 (serial)
-
Analog OutputLogarithmic: 1 V per decade, 0-10 VDC
-
Emission CurrentControlled, adjustable from 0.01 to 10.0 mA
-
DegasElectron Bombardment: 10-40 watts adjustable
I2R: 8 V nominal, (fixed) 80 W maximum -
Operating Temperature40°C maximum
