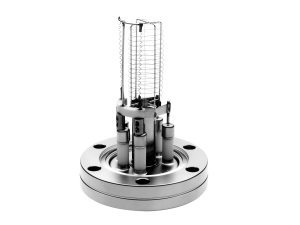

274 Nude Bayard-Alpert Type Ionization Vacuum Pressure Sensors
Overview
The Granville-Phillips® industry standard 274 Nude Bayard-Alpert Type Hot Cathode Ionization Vacuum Gauges provide good vacuum pressure measurement at an economical cost. 274 Nude Bayard-Alpert Type Hot Cathode Ionization Vacuum Gauges are available in two types: a single thoria-coated iridium filament gauge and a dual filament UHV gauge.
- Cage grid or non-sag bifilar grid
- Burn-out resistant filament or dual tungsten filaments
- Resistance heating or electron bombardment degas
- Replaceable filament
- Mates with standard electric connector
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
274022 Vacuum Gauge, Nude Bayard-Alpert, Dual Tungsten Filament, 2.75 in. CF | $609 |
|
||||
|
|
274023 Vacuum Gauge, Nude Bayard-Alpert, Dual Thoria-coated Iridium Filament, 2.75 in. CF | $656 |
|
||||
|
|

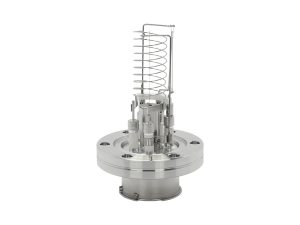

274028 Vacuum Gauge, Nude Bayard-Alpert, Single Thoria-coated Iridium Filament, 2.75 in. CF | $609 |
|
||||
|
|
274041 Vacuum Gauge, Nude Bayard-Alpert, Dual Tungsten Filament, 2.75 in. CF, Pin Guard | $690 |
|
||||
|

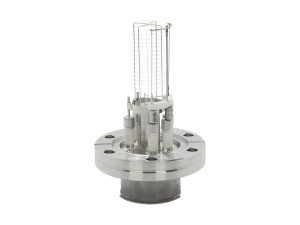

274042 Vacuum Gauge, Nude Bayard-Alpert, Dual Thoria-coated Iridium Filament, 2.75 in. CF, Pin Guard |
|
$725 |
|
|||
|
274043 Vacuum Gauge, Nude Bayard-Alpert, Single Thoria-coated Iridium Filament, 2.75 in. CF, Pin Guard |
|
$690 |
|
|||
|
|
274050 Vacuum Gauge, Nude Bayard-Alpert, Dual Tungsten Filament, NW40 ISO-KF | $621 |
|
||||
|
|
274053 Vacuum Gauge, Nude Bayard-Alpert, Single Thoria-coated Iridium Filament, NW40 ISO-KF, Pin Guard | $708 |
|
||||
|
|
274057 Vacuum Gauge, Nude Bayard-Alpert, Dual Tungsten Filament, NW40 ISO-KF, Pin Guard | $708 |
|
||||
|
|
274058 Vacuum Gauge, Nude Bayard-Alpert, Dual Thoria-coated Iridium Filament, NW40 ISO-KF, Pin Guard | $737 |
|
Specifications
-
Sensor TypeBayard-Alpert Type Ionization Vacuum Gauge
-
CollectorTungsten, 0.005 or 0.010 diameter
-
Accuracy±20%
-
Bake Out Temperature450°C
-
Installation OrientationAny
-
EnvelopeNude with 2 3/4 in. OD ConFlat flange
-
CathodeDual tungsten or dual thoria coated iridium on replaceable assembly or Thoria coated iridium on replaceable assembly
-
GridRefractory Metals
-
Length4 1/8 in. (105 mm)
3 in. (76 mm) Insertion length
-
Sensitivity for N2Electron Bombardment Degassable: 25/Torr
Resistance Heated Degassable: 10/Torr -
Electron Bombardment Degas40 watts max.
-
Resistance Heated Degas100 watts max., 70 watts nominal
-
Cathode Heating CurrentElectron Bombardment Degassable: 2.5 to 3.5 A
Resistance Heated Degassable: 4 to 6 A -
Cathode Heating Voltage3 to 5 V
-
Cathode Voltage Potential+30 VDC
-
Collector Potential0 V
-
Grid Potential+180 VDC
Features
Resources
Literature
- Vacuum Measurement Product Guide (711.5 kB, PDF)
- 274 Bayard-Alpert Type Ionization Vacuum Gauges (310.5 kB, PDF)
Manuals
- 274 Bayard-Alpert Type Ionization Gauges (274026) (1.1 MB, PDF)
- 274 Gauge Radiation Baffle Installation (016117) (66.9 kB, PDF)
