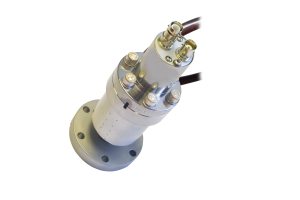

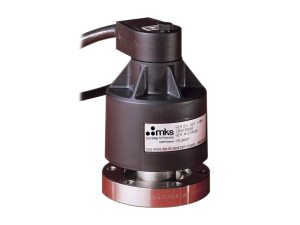

423 I-Mag® & 431 Cold Cathode Vacuum Pressure Sensors
Overview
Using an inverted magnetron design, 423 I-Mag® vacuum pressure sensors can operate at pressures as low as 10-10 Torr with the proper controller which is much lower than a traditional Penning cold cathode sensor. This increased pressure range makes the Cold Cathode sensors ideal for for OEM or industrial use.
- Wide pressure measurement range 10-10 to 10-2 Torr
- No adjustment in emission current or filament voltage required
- No need to degas the gauge and no filaments to burn out
- Sensor tubes can be mounted in any position without affecting reading
- Cleaning of sensor is easy with a demountable tube
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
104230001 Vacuum Gauge, Cold Cathode Sensor, 1 x 10-11 to 1 x 10-2 Torr, NW40 ISO-KF | $522 |
|
||||
|
|
104230002 Vacuum Gauge, Cold Cathode Sensor, 1 x 10-11 to 1 x 10-2 Torr, 2.75 in. OD CF |
|
$598 |
|
|||
|
|
104230003 Vacuum Gauge, Cold Cathode Sensor, 1 x 10-11 to 1 x 10-2 Torr, 1 in. OD Tube | $476 |
|
||||
|
|
104230004 Vacuum Gauge, Cold Cathode Sensor, 1 x 10-11 to 1 x 10-2 Torr, NW25 ISO-KF | $453 |
|
||||
|
104310001 Cold Cathode Vacuum Sensor, 1 x 10-11 - 1 x 10-2 Torr, NW40-KF | $1,188 |
|
||||
|
|
104310002 Cold Cathode Vacuum Sensor, 1 x 10-11 - 1 x 10-2, 2.75 in. CF | $1,188 |
|
||||
|
|
104310003 Cold Cathode Vacuum Sensor, 1 x 10-11 - 1 x 10-2 Torr, 1 in. tube | $1,078 |
|
||||
|
|
104310004 Cold Cathode Vacuum Sensor, 1 x 10-11 - 1 x 10-2 Torr, NW25-KF | $1,130 |
|
||||
|
|
104310005 Cold Cathode Vacuum Sensor, 1 x 10-11 - 1 x 10-2 Torr, 8 VCR female | $1,136 |
|
Specifications
-
Sensor TypeI-Mag® Cold Cathode
-
Measurement Range1 x 10-11 to 1 x 10-2 Torr
1 x 10-11 to 1 x 10-2 mbar
1 x 10-9 to 1.0 Pa -
ConnectorsTube Side: molded connector with a positive locking bolt
Controller Side: bayonet connector and threaded coaxial connector -
Exposed MaterialsStainless steel, 6061 aluminum, Inconel®, glass and alumina ceramic
-
Reproducibility5% of reading at constant temperature
-
Bake Out Temperatureto 400°C (752°F) with CF flanges and magnet and cable removed
-
Operating Temperature0° to 70°C (32° to 158°F)
-
Calibration GasAir, Nitrogen
-
Installation OrientationAny
-
Internal Volume15 cc
-
Weight2.0 lbs (0.8 kg) with CF flange
Features
Resources
Drawings & CADs
- 423 I-Mag® Cold Cathode Vacuum Sensor Dimensional Drawing (58.1 kB, PDF)
Manuals
- 423 I-MAG Cold Cathode Ionization Vacuum Sensor Manual (166.9 kB, PDF)
Literature
- 937B Digital Combination Vacuum Gauge Controller (585.5 kB, PDF)
- 943 Cold Cathode Vacuum Gauge System (305.7 kB, PDF)
- Vacuum Measurement Product Guide (711.5 kB, PDF)
