120 VAC PTFE 45 Degree Elbow Heater Jackets
Overview
- Compatible with ISO and Buttweld 45 elbows
- PTFE heater with Teflon woven shell
- 100-120 VAC power requirement
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Heater Jacket, PTFE-Teflon®, fits ISO 45 Degree Elbow, 1.5 in. Diameter Tubing, 120V
$713
|
494015162-1150 Heater Jacket, PTFE-Teflon®, fits ISO 45 Degree Elbow, 1.5 in. Diameter Tubing, 120V | $713 |
|
|||
|
Heater Jacket, PTFE-Teflon®, fits ISO 90 Degree Long Elbow, 1.5 in. Tubing, 240V
$921
|
494015263-1150 Heater Jacket, PTFE-Teflon®, fits ISO 90 Degree Long Elbow, 1.5 in. Tubing, 240V | $921 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits ISO 45 Degree Elbow, 1.7 in. Diameter Tubing, 120V
$725
|
494017162-1150 Heater Jacket, PTFE-Teflon®, fits ISO 45 Degree Elbow, 1.7 in. Diameter Tubing, 120V | $725 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 2.0 in. Tubing, 120V
$731
|
494020160-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 2.0 in. Tubing, 120V | $731 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits ISO-KF 45 Degree Elbow, 2 in. OD Tube, 120V
$742
|
494020162-1150 Heater Jacket, PTFE-Teflon®, fits ISO-KF 45 Degree Elbow, 2 in. OD Tube, 120V | $742 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 2 in. OD Tube, 120V
$742
|
494020164-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 2 in. OD Tube, 120V | $742 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Elbow with Tangents, 2 in. OD Tube, 120V
$771
|
494020165-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Elbow with Tangents, 2 in. OD Tube, 120V | $771 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 2.4 in. Tubing, 120V
$771
|
494024160-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 2.4 in. Tubing, 120V | $771 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 2.5 in. Tubing, 120V
$783
|
494025160-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 2.5 in. Tubing, 120V | $783 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 2.5 in. OD Tube, 120V
$824
|
494025164-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 2.5 in. OD Tube, 120V | $824 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 3.0 in. Tubing, 120V
$865
|
494030160-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 3.0 in. Tubing, 120V | $865 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits ISO-MF 45 Degree Elbow, 3 in. OD Tube, 120V
$880
|
494030162-1150 Heater Jacket, PTFE-Teflon®, fits ISO-MF 45 Degree Elbow, 3 in. OD Tube, 120V | $880 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 3 in. OD Tube, 120V
$880
|
494030164-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 3 in. OD Tube, 120V | $880 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Elbow with Tangents, 3 in. OD Tube, 120V
$880
|
494030165-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Elbow with Tangents, 3 in. OD Tube, 120V | $880 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits 3.31 in. Long Bellows, 1.5 in. Diameter Tubing, 240V
$911
|
494035160-1150 Heater Jacket, PTFE-Teflon®, fits 3.31 in. Long Bellows, 1.5 in. Diameter Tubing, 240V | $911 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 3.5 in. Diameter Piping, 120V
$934
|
494035164-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 3.5 in. Diameter Piping, 120V | $934 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 4.0 in. Tubing, 120V
$957
|
494040160-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 4.0 in. Tubing, 120V | $957 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits ISO 45 Degree Elbow, 4 in. OD Tubing, 120V
$1,008
|
494040162-1150 Heater Jacket, PTFE-Teflon®, fits ISO 45 Degree Elbow, 4 in. OD Tubing, 120V | $1,008 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 4 in. OD Tube, 120V
$985
|
494040164-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 4 in. OD Tube, 120V | $985 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Elbow with Tangents, 4 in. OD Tube, 120V
$985
|
494040165-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Elbow with Tangents, 4 in. OD Tube, 120V | $985 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 4.5 in. Tubing, 120V
$1,008
|
494045160-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow with Flange on one side, 4.5 in. Tubing, 120V | $1,008 |
|
|||
|
|
Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 4.5 in. Diameter Piping, 120V
$1,037
|
494045164-1150 Heater Jacket, PTFE-Teflon®, fits Weld 45 Degree Elbow, 4.5 in. Diameter Piping, 120V | $1,037 |
|
Specifications
-
SeriesSeries 49
-
TypeHeater Jacket
-
Insulation MaterialPTFE Teflon-Woven
-
Component TypeElbow
-
For Use WithSee order table
-
Temperature Range35 - 200°C
-
Pre-Set Temperature150°C Standard
-
Voltage Requirements100-120 VAC
-
Heater ConnectorsCircular 6 Contact Locking Bayonet
-
Housing MaterialsController: Injection Molded
-
Controller DimensionsØ2.2 in. x 3.7 in.
-
Operating Temperature0° to 60°C
-
ComplianceCE, SEMI S2
Features
Accessories
120 VAC Heater Jacket Power Kits
Heater jacket power kits includes a power cord and a Series 49 power junction block. The junction block supplies power to a chain of heater jackets and provides for communications pass thru to adjacent upstream and downstream chains of heaters.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
 |
20021379-001 Power Kit, fits Series 49UL Heater Jacket, 8 ft. 120 VAC Cable and Series 49UL Power Adapter | $175 |
|
||||
 |

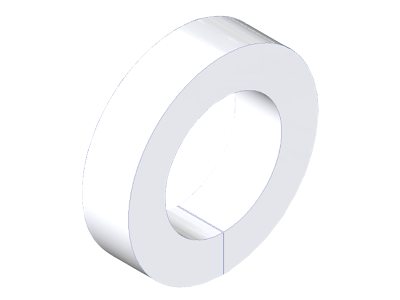

Polyimide Flange Insulators for ISO-KF Wing Nut Clamped Flanges | ||||||
| |
20021380-001 Power Kit, fits Series 49UL Heater Jacket, 15 ft. 120 VAC Cable and Series 49UL Power Adapter | $175 |
|
User Interface Communications Kit
The communications kit includes a 24 in. communication cable and a USB to Micro USB adapter. Its used for setting up an monitoring a chain of heater jackets with a user supplied tablet running the Series 49 software application.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
| |
20014265-001 Communications Kit, Series 49UL Heaters, Includes Communication Cable and USB Adapter | $175 |
|
