Butt Weld 45 Degree Elbow Fittings

Butt Weld 45 Degree Elbow Fittings

Products
Features
Resources
Contact Us

2 inch diameter 45 degree elbow butt weld vacuum fitting

Overview

Butt weld 45 degree elbow fittings are offered in 0.5 to 6 inch diameter stainless steel vacuum tubing. These elbows have a radius equal to 1.5x the tubing diameter and are used to make a 45 degree change of direction in vacuum tubing.

45° butt weld elbow fittings
304 Stainless Steel construction
0.5 to 6 in. vacuum tubing diameters

See All Features

2 inch diameter 45 degree elbow butt weld vacuum fitting

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Tube OD	Elbow Radius	Modulus	Wall Thickness	Availability	Featured Item	Price		Brand
		1002345050 45 Degree Elbow Fitting, Buttweld, 0.5 inch O.D., 304 Stainless Steel $10.80 Show	1002345050 45 Degree Elbow Fitting, Buttweld, 0.5 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	0.5 in.	0.75 in.	0.31 in.	0.065 in.	Show		$10.80

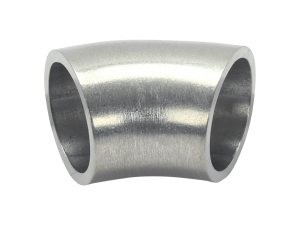

		1002345075 45 Degree Elbow Fitting, Buttweld, 0.75 inch O.D., 304 Stainless Steel $10.80 Show	1002345075 45 Degree Elbow Fitting, Buttweld, 0.75 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	0.75 in.	1.125 in.	0.47 in.	0.065 in.	Show		$10.80

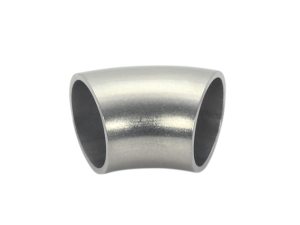

		1002345100 45 Degree Elbow Fitting, Buttweld, 1.0 inch O.D., 304 Stainless Steel $17.54 Show	1002345100 45 Degree Elbow Fitting, Buttweld, 1.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	1.0 in.	1.5 in.	0.62 in.	0.065 in.	Show		$17.54

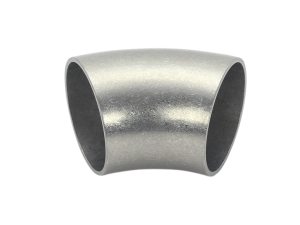

		1002345150 45 Degree Elbow Fitting, Buttweld, 1.5 inch O.D., 304 Stainless Steel $18.86 Show	1002345150 45 Degree Elbow Fitting, Buttweld, 1.5 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	1.5 in.	2.25 in.	0.93 in.	0.065 in.	Show		$18.86

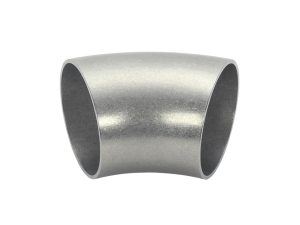

		1002345200 45 Degree Elbow Fitting, Buttweld, 2.0 inch O.D., 304 Stainless Steel $22.93 Show	1002345200 45 Degree Elbow Fitting, Buttweld, 2.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	2.0 in.	3 in.	1.24 in.	0.065 in.	Show		$22.93

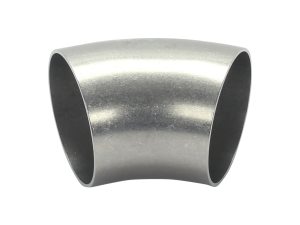

		1002345250 45 Degree Elbow Fitting, Buttweld, 2.5 inch O.D., 304 Stainless Steel $40 Show	1002345250 45 Degree Elbow Fitting, Buttweld, 2.5 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	2.5 in.	3.75 in.	1.56 in.	0.065 in.	Show		$40
		1002345300 45 Degree Elbow Fitting, Buttweld, 3.0 inch O.D., 304 Stainless Steel $45 Show	1002345300 45 Degree Elbow Fitting, Buttweld, 3.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	3.0 in.	4.5 in.	1.86 in.	0.065 in.	Show		$45
		1002345400 45 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.083 in. Thick 304 SS $75 Show	1002345400 45 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.083 in. Thick 304 SS	UNIVERSAL	0.0	1.0	0.0		0.0	4.0 in.	6 in.	2.49 in.	0.083 in.	Show		$75

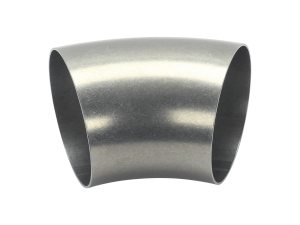

		1002345401 45 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.065 in. Thick 304 SS $69 Show	1002345401 45 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.065 in. Thick 304 SS	UNIVERSAL	0.0	1.0	0.0		0.0	4.0 in.	6 in.	2.49 in.	0.065 in.	Show		$69

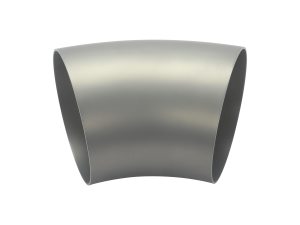

		1002345600 45 Degree Elbow Fitting, Buttweld, 6.0 inch O.D., 304 Stainless Steel $182 Show	1002345600 45 Degree Elbow Fitting, Buttweld, 6.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	6.0 in.	9 in.	3.75 in.	0.083 in.	Show		$182

Show All

Specifications

Component Type

45 Degree Elbow
Fitting Type

Butt Weld

Series

Series 23
Material

304 Stainless Steel

Features

Resources

Literature

Series 23 ButtWeld Vacuum Components & Fittings (2 MB, PDF)
