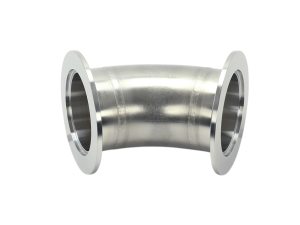

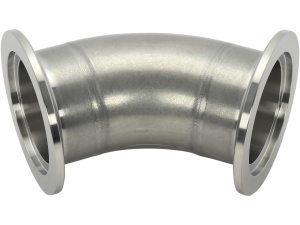

ISO-KF Flange Smooth Radius 45 Degree Elbow Fittings

Smooth radius 45 degree elbow fittings are used to make a change of direction between two ISO-KF flange faces.

Compare	Description	Compatibility	rankScore	Flange Size	Availability	Price
100318701 45 Degree Elbow Fitting, NW16 Size ISO-KF Vacuum Flange, 304 Stainless Steel $87 Show	100318701 45 Degree Elbow Fitting, NW16 Size ISO-KF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	1.0	NW16	Show	$87
100318703 45 Degree Elbow Fitting, NW25 Size ISO-KF Vacuum Flange, 304 Stainless Steel $77 Show	100318703 45 Degree Elbow Fitting, NW25 Size ISO-KF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	1.0	NW25	Show	$77
100318705 45 Degree Elbow Fitting, NW40 Size ISO-KF Vacuum Flange, 304 Stainless Steel $118 Show	100318705 45 Degree Elbow Fitting, NW40 Size ISO-KF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	1.0	NW40	Show	$118
100318706 45 Degree Elbow Fitting, NW50 Size ISO-KF Vacuum Flange, 304 Stainless Steel $126 Show	100318706 45 Degree Elbow Fitting, NW50 Size ISO-KF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	1.0	NW50	Show	$126

Show All

Models	100318701	100318703	100318705	100318706
Component Type	Elbow	Elbow	Elbow	Elbow
Flange Type	ISO-KF	ISO-KF	ISO-KF	ISO-KF
Flange Size	NW16	NW25	NW40	NW50
Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Dimension "A"	0.91 in.	1.12 in.	1.68 in.	1.99 in.
