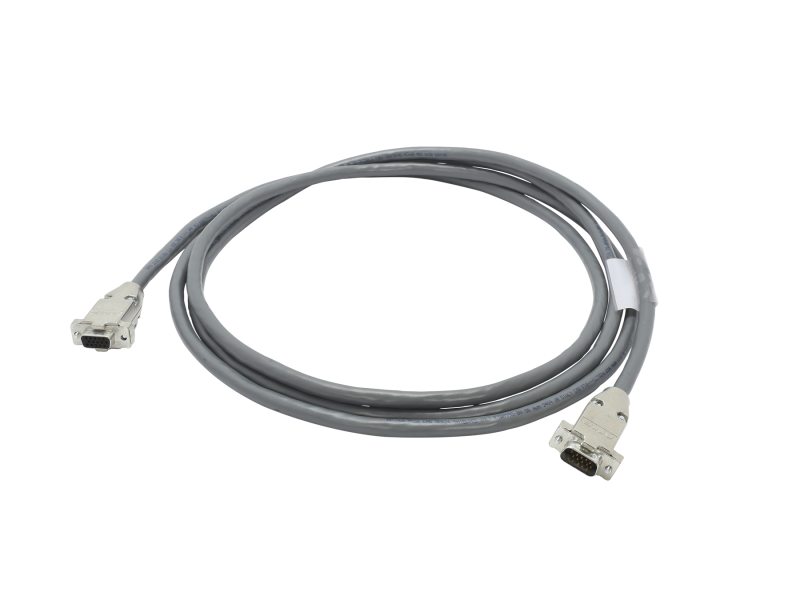

Series 970B vacuum transducers feature RS232, RS485, and EtherCAT (972B only) digital communications interface for setup of transducer parameters and to provide real time pressure measurement. The digital interface can be used to control pressure units, baud rate, address, factory default, user tag, RS485 test, gas correction; set point functions: value, hysteresis, direction, HV enable, protect, control set point, and gas type.

All Series 970B transducers have an analog pressure output of 0.5 VDC per decade that can be interfaced to external analog equipment for pressure readout or control. Other analog outputs and curves can be selected via the digital user interface. It can emulate analog voltage outputs from a variety of other vacuum transducers. The emulation feature can be used to upgrade and replace other vendors’ gauges in OEM applications without changing system software.

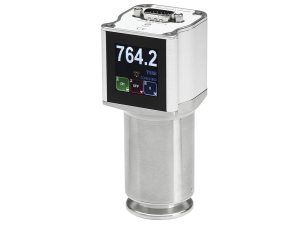

The optional integrated touch-screen display is user configurable; the user can change pressure units, orientation and has access to set point parameters as well as gas type. The display also indicates the status of the available set point relays. Displayed pressure reading from individual sensors or combined reading can be seen from >5 meters away on the high contrast display.

The Series 970B has up to three mechanical SPST relays which can be used for process control, examples are interlocking valves or pumps. Relay contacts are rated at 1 amp for 30 VAC or VDC, resistive loads.
