Butt Weld 90 Degree Elbow Fittings

Butt Weld 90 Degree Elbow Fittings

Products
Features
Resources
Contact Us

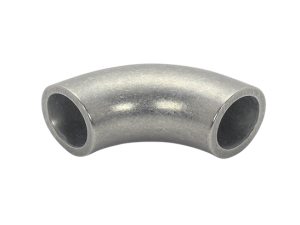

2 inch diameter 90 degree elbow butt weld vacuum fitting

Overview

Butt weld 90 degree elbow fittings are offered in 0.5 to 6 inch diameter stainless steel vacuum tubing. These elbows have a radius equal to 1.5x the tubing diameter and are used to make a right angle change of direction in vacuum tubing.

90° butt weld elbow fittings
304 Stainless Steel construction
0.5 to 6 in. vacuum tubing diameters

See All Features

2 inch diameter 90 degree elbow butt weld vacuum fitting

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Tube OD	Modulus	Wall Thickness	Availability	Featured Item	Price		Brand
		1002390050 90 Degree Elbow Fitting, Buttweld, 0.5 inch O.D., 304 Stainless Steel $12.79 Show	1002390050 90 Degree Elbow Fitting, Buttweld, 0.5 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	0.5 in.	0.75 in.	0.065 in.	Show		$12.79
		1002390075 90 Degree Elbow Fitting, Buttweld, 0.75 inch O.D., 304 Stainless Steel $13.45 Show	1002390075 90 Degree Elbow Fitting, Buttweld, 0.75 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	0.75 in.	1.13 in.	0.065 in.	Show		$13.45

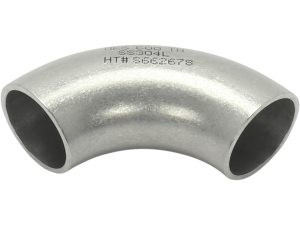

		1002390100 90 Degree Elbow Fitting, Buttweld, 1.0 inch O.D., 304 Stainless Steel $17.54 Show	1002390100 90 Degree Elbow Fitting, Buttweld, 1.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	1.0 in.	1.52 in.	0.065 in.	Show		$17.54
		10023901000 90 Degree Elbow Fitting, Buttweld, 10.0 inch O.D., 304 Stainless Steel $1,527 Show	10023901000 90 Degree Elbow Fitting, Buttweld, 10.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	10.0 in.			Show		$1,527

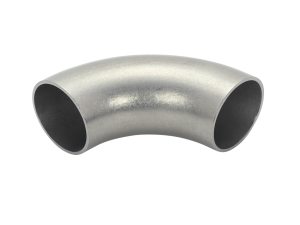

		1002390150 90 Degree Elbow Fitting, Buttweld, 1.5 inch O.D., 304 Stainless Steel $18.86 Show	1002390150 90 Degree Elbow Fitting, Buttweld, 1.5 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	1.5 in.	2.25 in.	0.065 in.	Show		$18.86

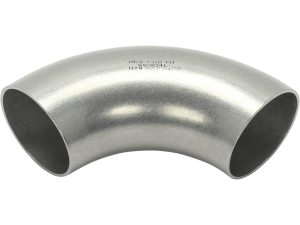

		1002390200 90 Degree Elbow Fitting, Buttweld, 2.0 inch O.D., 304 Stainless Steel $21.39 Show	1002390200 90 Degree Elbow Fitting, Buttweld, 2.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	2.0 in.	3.0 in.	0.065 in.	Show		$21.39

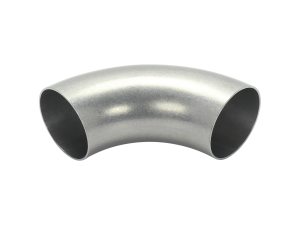

		1002390250 90 Degree Elbow Fitting, Buttweld, 2.5 inch O.D., 304 Stainless Steel $40 Show	1002390250 90 Degree Elbow Fitting, Buttweld, 2.5 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	2.5 in.	3.75 in.	0.065 in.	Show		$40

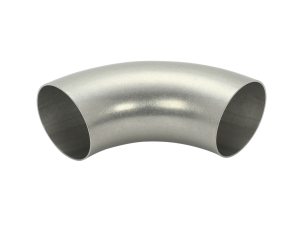

		1002390300 90 Degree Elbow Fitting, Buttweld, 3.0 inch O.D., 304 Stainless Steel $45 Show	1002390300 90 Degree Elbow Fitting, Buttweld, 3.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	3.0 in.	4.5 in.	0.065 in.	Show		$45

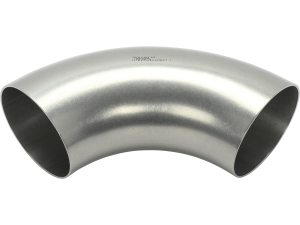

		1002390400 90 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.083 in. Thick 304 SS $80 Show	1002390400 90 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.083 in. Thick 304 SS	UNIVERSAL	0.0	1.0	0.0		0.0	4.0 in.	6.0 in.	0.083 in.	Show		$80

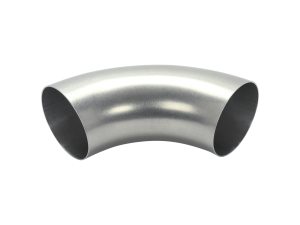

		1002390401 90 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.065 in. Thick 304 SS $69 Show	1002390401 90 Degree Elbow Fitting, Buttweld, 4.0 inch O.D., 0.065 in. Thick 304 SS	UNIVERSAL	0.0	1.0	0.0		0.0	4.0 in.	6.0 in.	0.065 in.	Show		$69

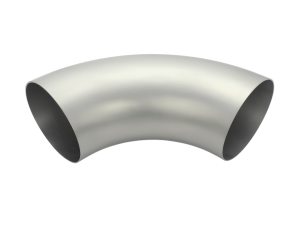

		1002390600 90 Degree Elbow Fitting, Buttweld, 6.0 inch O.D., 304 Stainless Steel $284 Show	1002390600 90 Degree Elbow Fitting, Buttweld, 6.0 inch O.D., 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	6.0 in.	9.0 in.	0.083 in.	Show		$284

Show All

Specifications

Component Type

90 Degree Elbow
Fitting Type

Butt Weld

Series

Series 23
Material

304 Stainless Steel

Features

Resources

Literature

Series 23 ButtWeld Vacuum Components & Fittings (2 MB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
