CF Ultra High Vacuum Flange Bolt and Nut Sets
Overview
These bolt and nut sets contain 25 bolts and 25 nuts for use with various size thru bolt hole CF UHV flanges.
- Bolt sets for thru hole CF flanges
- 1 1/3 inch to 4 5/8 inch CF flange size
- Sold in packs of 25
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100889047 Flange Bolt and Nut Set, Thru Hole, 1.33 inch CF, 8-32 x 0.75 in., Qty 25 | $47 |
|
||||
|
|
100889048 Bolt and Nut Set, Silver Plated, Thru-hole 1.33 in. CF, 8-32 x 0.75 in., Qty 25 | $131 |
|
||||
|

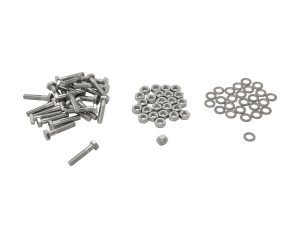

100889049 Flange Bolt and Nut Set, Thru Hole, 2.125 or 2.75 in. CF, 1/4-28 x 1.25 in., Qty 25 |
|
$21.28 |
|
|||
|
|
100889051 Flange Bolt and Nut Set, Thru Hole, 3.375 in. CF, 5/16-24 x 1.75 in., Qty 25 | $54 |
|
||||
|
|
100889053 Flange Bolt and Nut Set, Thru Hole, 4.5 inch CF, 5/16-24 x 2.0 in., Qty 25 | $44 |
|
||||
|
|
100889055 Flange Bolt and Nut Set, Thru Hole, 4.625 inch CF, 5/16-24 x 2.25 in., Qty 25 | $45 |
|
||||
|

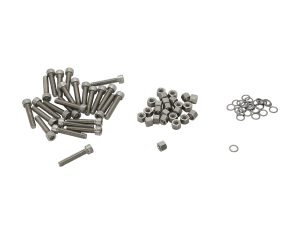

100889147 Flange Bolt and Nut Set, Thru Hole, 1.33 inch CF, 8-32 x 0.87 in., Qty 25 |
|
$53 |
|
|||
|

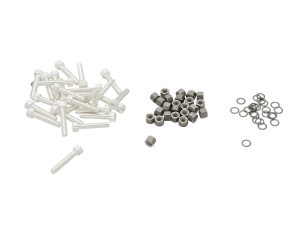

100889148 Bolt and Nut Set, Silver Plated, Thru-hole 1.33 in. CF, 8-32 x 0.87 in., Qty 25 |
|
$196 |
|
|||
|

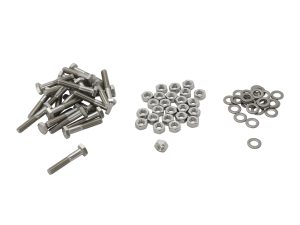

100889150 Flange Bolt and Nut Set, Thru Hole, 2.125 or 2.75 in. CF, 1/4-28 x 1.38 in., Qty 25 |
|
$56 |
|
Specifications
-
Component TypeFlange Bolt and Nut Set
-
SeriesSeries 88
-
Flange TypeCF Ultra High Vacuum
-
Quantity25
Features
Resources
Literature
- Series 88 CF UHV Components & Fittings (399.8 kB, PDF)
