ISO-KF Vacuum Flange Bulkhead Clamps
Overview
- Adapts to a baseplate or fixed flange
- Standard KF seal assembly
- Stainless steel bolts and washers included
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100318901 Bulkhead Flange Clamp, NW16 Size ISO-KF Flange, 6 Bolts, Aluminum |
|
$22.61 |
|
|||
|

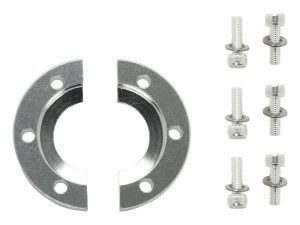

100318903 CLAMP,BULKHEAD,NW25,AL Bulkhead Flange Clamp, NW25 Size ISO-KF Flange, 6 Bolts, Aluminum |
|
$27 |
|
|||
|

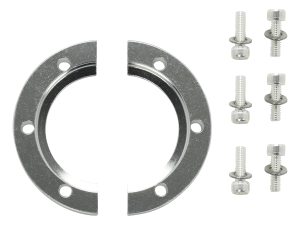

100318905 CLAMP,BULKHEAD,NW40,AL Bulkhead Flange Clamp, NW40 Size ISO-KF Flange, 6 Bolts, Aluminum |
|
$33 |
|
|||
|

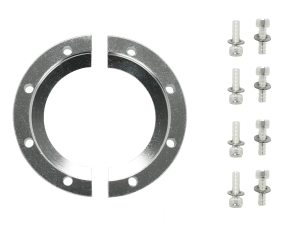

100318906 CLAMP,BULKHEAD,NW50,AL Bulkhead Flange Clamp, NW50 Size ISO-KF Flange, 8 Bolts, Aluminum |
|
$38 |
|
|||
|
100930754 Bulkhead Clamp, ISO-KF NW16 | $22.83 |
|
Specifications
| Models |
|
CLAMP,BULKHEAD,NW25,AL |
CLAMP,BULKHEAD,NW40,AL |
CLAMP,BULKHEAD,NW50,AL |
|
|
|---|---|---|---|---|---|---|
| Series | Series 31 | Series 31 | Series 31 | Series 31 | Series 31 | |
| Component Type | Bulkhead Flange Clamp with silver-plated socket head cap screws | Bulkhead Flange Clamp | Bulkhead Flange Clamp | Bulkhead Flange Clamp | Bulkhead Flange Clamp with silver plated  Hex head screws | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW16 | NW25 | NW40 | NW50 | NW16 | |
| Number of Bolt Holes | 6 | 6 | 6 | 8 | ||
| Material | Aluminum | Aluminum | Aluminum | Aluminum | ||
| Outer Diameter | 2.0 in. (50.8 mm) | 2.38 in. (60 mm) | 2.94 in. (75 mm) | 3.75 in. (95 mm) | ||
| Width | 0.36 in. (9 mm) | 0.39 in. (10 mm) | 0.37 in. (9 mm) | 0.40 in. (10 mm) | ||
| Dimension "A" | 0.36 in. | 0.39 in. | 0.37 in. | 0.40 in. | ||
| Dimension "B" | 2.00 in. | 2.38 in. | 2.94 in. | 3.75 in. | ||
| Dimension "C" | 1.50 in. | 1.89 in. | 2.44 in. | 3.25 in. |
Notes:
Please see clamp schematic for dimension callouts.
Features
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
