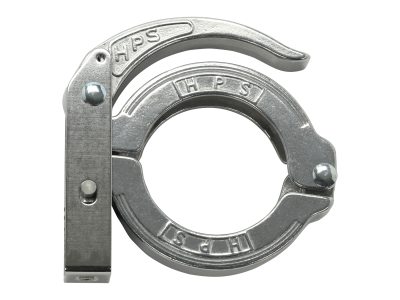

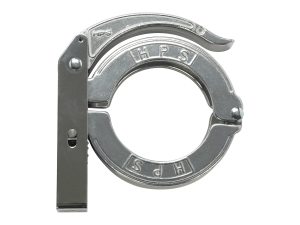

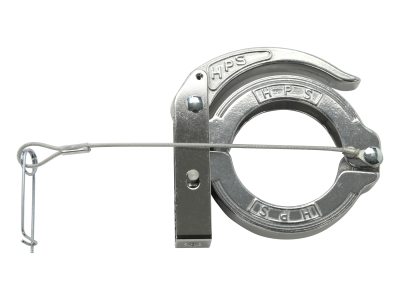

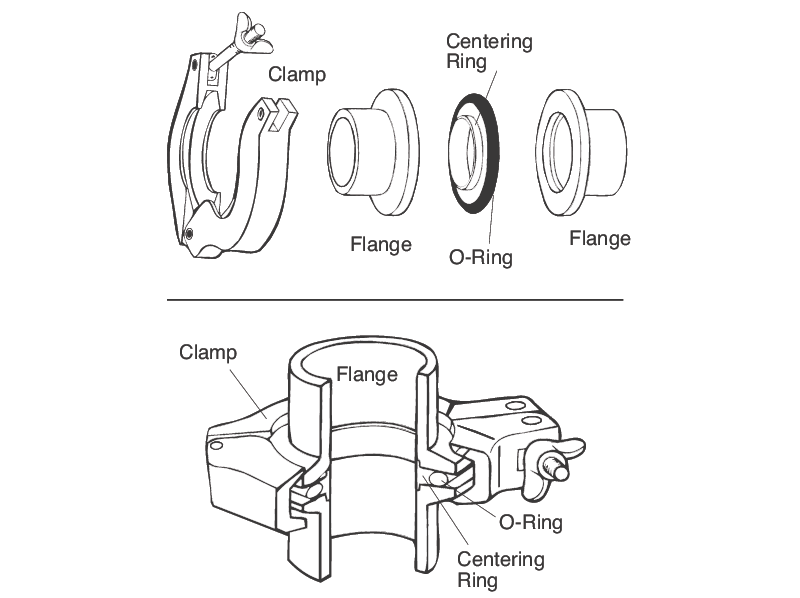

ISO-KF Vacuum Flange Toggle Clamps
Overview
- Quick operating ISO-KF flange clamp
- Positive locking method
- Can not be over tightened
- Self-adjusting
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100318801 ASSY,TOGGLE CLAMP, NW16/10 Toggle Flange Clamp, NW16 Size ISO-KF Vacuum Flange, Aluminum |
|
$18.74 |
|
|||
|
100318803 ASSY,TOGGLE CLAMP,NW25 Toggle Flange Clamp, NW25 Size ISO-KF Vacuum Flange, Aluminum |
|
$19.74 |
|
|||
|
100318805 ASSY,TOGGLE CLAMP,NW40 Toggle Flange Clamp, NW40 Size ISO-KF Vacuum Flange, Aluminum |
|
$21.17 |
|
|||
|
100318806 ASSY,TOGGLE CLAMP,NW50 Toggle Flange Clamp, NW50 Size ISO-KF Vacuum Flange, Aluminum |
|
$29 |
|
Specifications
| Models |
ASSY,TOGGLE CLAMP, NW16/10 |
ASSY,TOGGLE CLAMP,NW25 |
ASSY,TOGGLE CLAMP,NW40 |
ASSY,TOGGLE CLAMP,NW50 |
|
|---|---|---|---|---|---|
| Series | Series 31 | Series 31 | Series 31 | Series 31 | |
| Component Type | Toggle Flange Clamp | Toggle Flange Clamp | Toggle Flange Clamp | Toggle Flange Clamp | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW16 | NW25 | NW40 | NW50 | |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | |
| Width | 0.75 in. (19.05 mm) | 0.75 in. (19.05 mm) | 0.75 in. (19.05 mm) | 0.89 in. (23 mm) | |
| Dimension "A" | 4.05 in. | 4.31 in. | 4.87 in. | 6.34 in. | |
| Dimension "B" | 2.50 in. | 2.96 in. | 3.29 in. | 4.73 in. | |
| Dimension "C" | 0.75 in. | 0.75 in. | 0.75 in. | 0.89 in. |

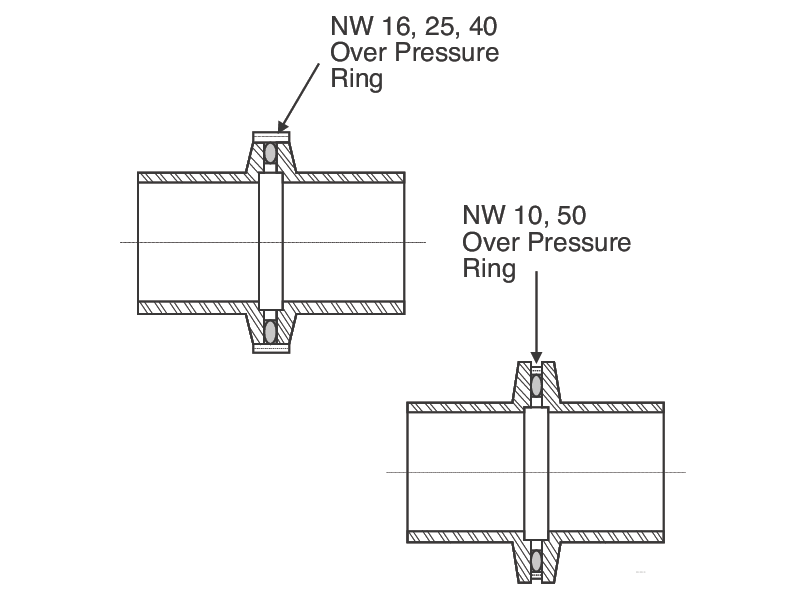

Notes:

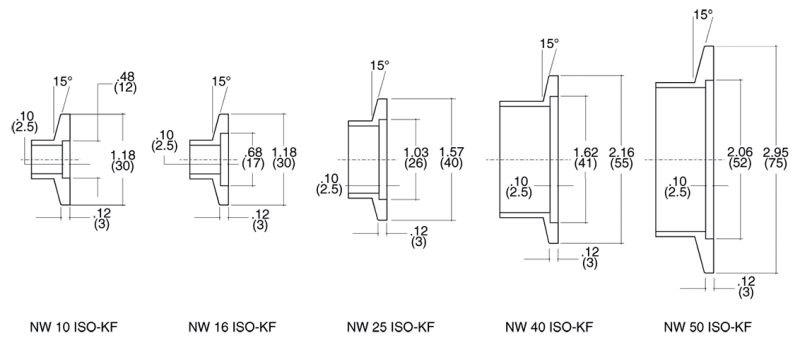

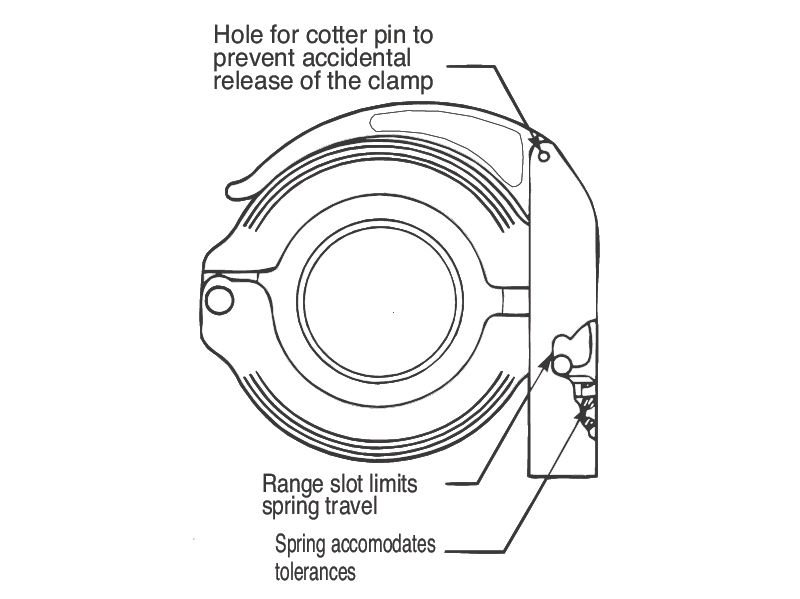

Please see flange clamp schematic for dimension callouts.
Features
Resources
Literature

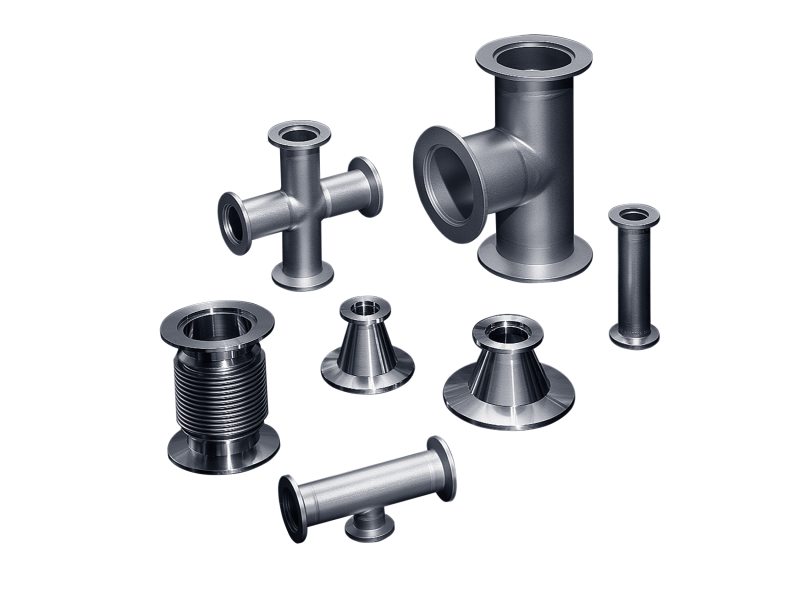

- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
