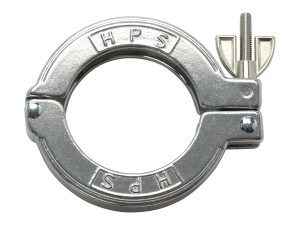

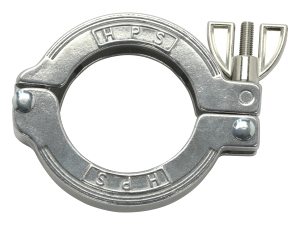

ISO-KF Vacuum Flange Wing Nut Clamps
Overview
- Hand tightened ISO-KF flange clamp
- 70 inch-pounds maximum torque
- wing nut mechanism
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100312901 Wing Nut Flange Clamp, NW16 Size ISO-KF Vacuum Flange, Aluminum |
|
$7.61 |
|
|||
|
100312903 Wing Nut Flange Clamp, NW25 Size ISO-KF Vacuum Flange, Aluminum |
|
$10.14 |
|
|||
|
100312905 Wing Nut Flange Clamp, NW40 Size ISO-KF Vacuum Flange, Aluminum |
|
$11.36 |
|
|||
|
100312906 Wing Nut Flange Clamp, NW50 Size ISO-KF Vacuum Flange, Aluminum |
|
$19.18 |
|
Specifications
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Series | Series 31 | Series 31 | Series 31 | Series 31 | |
| Component Type | Wing Nut Flange Clamp | Wing Nut Flange Clamp | Wing Nut Flange Clamp | Wing Nut Flange Clamp | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW16 | NW25 | NW40 | NW50 | |
| Outer Diameter | 1.69 in. (43 mm) | 2.17 in. (55 mm) | 2.76 in. (70 mm) | 3.70 in. (94 mm) | |
| Width | 0.63 in. (16 mm) | 0.63 in. (16 mm) | 0.63 in. (16 mm) | 0.79 in. (20 mm) | |
| Dimension "A" | 2.24 in. | 2.76 in. | 3.39 in. | 4.33 in. | |
| Dimension "B" | 1.69 in. | 2.17 in. | 2.76 in. | 3.70 in. | |
| Dimension "C" | 0.63 in. | 0.63 in. | 0.63 in. | 0.79 in. |
Notes:
Please see flange clamp schematic for dimension callouts.
Features
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
