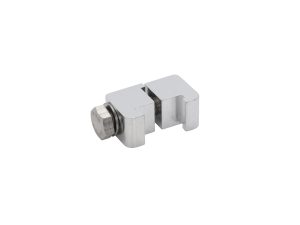

ISO-MF Double Claw Vacuum Flange Clamps
Overview
- Join two ISO-MF vacuum flanges
- Aluminum clamps with Stainless Steel hardware
- NW63 to NW500 flange sizes
- Torque to 7-10 lb-ft
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100761106 Double Claw Flange Clamp, ISO-MF, For Sizes NW63, NW80 or NW100 |
|
$4.27 |
|
|||
|
100761116 Double Claw Flange Clamp, ISO-MF, For Sizes NW160, NW200 or NW250 |
|
$8.60 |
|
|||
|
100761132 Double Claw Flange Clamp, ISO-MF Size NW320 | $17.09 |
|
||||
|
|
100761140 Double Claw Flange Clamp, ISO-MF For Sizes NW400 or NW500 | $17.42 |
|
Specifications
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Component Type | Clamp | Clamp | Clamp | Clamp | |
| Flange Type | ISO-MF | ISO-MF | ISO-MF | ISO-MF | |
| Flange Size | NW63 to NW100 | NW160 to NW250 | NW320 | NW400 or NW500 | |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | |
| Dimension "A" | 0.95 in. (24 mm) | 1.10 in. (28 mm) | 1.34 in. (34 mm) | 1.34 in. (34 mm) | |
| Dimension "B" | 1.98 in. (50 mm) | 2.05 in. (52 mm) | 2.56 in. (65 mm) | 2.56 in. (65 mm) | |
| Dimension "C" | 0.63 in. (16 mm) | 0.80 in. (20 mm) | 1.04 in. (26 mm) | 1.04 in. (26 mm) |
