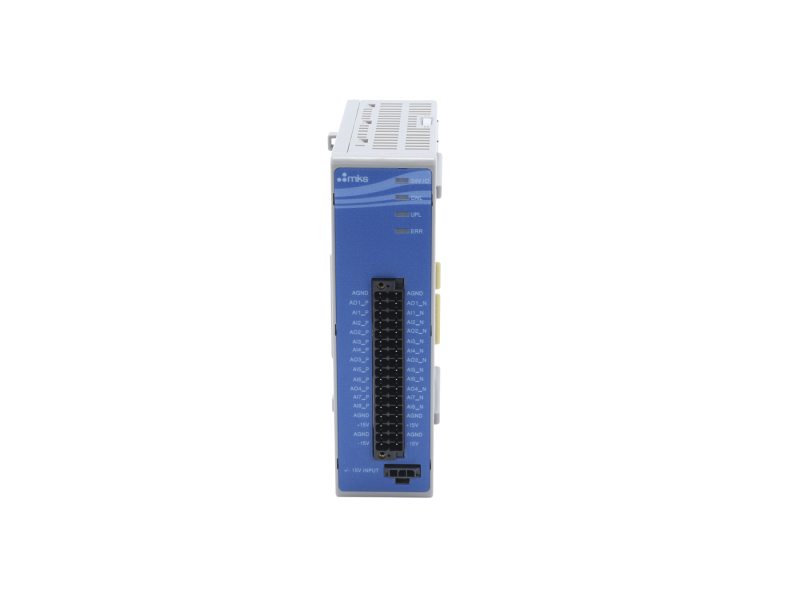

Analog Input/Output Modules
Model: AS11880G-32
Analog Input/Output Modules
Model: AS11880G-32
Overview
Overview
The AS11880G-32 Analog Input/Output module provides a compact and high density solution for integrating up to 8 current input and 4 voltage output channels with MKS Automation Platform PAC or CM modules using an MKS System bus. Analog IO modules support a variety of input and output ranges, to interface any type of analog I/O with the MKS platform. The voltage outputs are configurable within the following ranges: 0-5V, 0-10V, ±5V, ±10V. The current inputs are configurable within the following ranges: 0-20mA, 4-20mA.
Technical Specs
- TypeAnalog Input/Output Module
- ADC Native Resolution16-bit
- BusMKS System
- InputCurrent
- Number of Inputs8 (differential only)
- OutputVoltage
- Number of Outputs4, differential or single ended (configured by the user)
- Minimum Precision14 noise-free bit for 95% of readings over full voltage range
- Input & Output Ranges0-5 V, 0-10 V, ±5 V, ±10 V
- Output Voltage Range-10 - 9.9997 Volts
- Current0-20ma , 4-20ma (Factory configurable between voltage and current)
- Anti-alias HW Filtering200Hz ±20%, 6dB/octave minimum
- Input Voltage Measurement Range-10 - +9.9997 V
- DAC Native Resolution16-bit
- Minimum Input CMRR50 dB, 0-1 kHz
- Maximum Output Current5mA, into a 2 kOhm, 10 nF load
- Minimum Common Mode Voltage Range±8 V
- Minimum Input Impedance10 MOhm
- Maximum Power Consumption per ModuleAssuming all AOs are current outputs @20mA = 24 V_IO@ 0.25 Amp, 24 V_CORE@ 0.15 Amp
- Output Accuracy at 25°C Ambient±1.2 mV measured at IO connector with 2 kOhm load
- Output Accuracy Temperature Drift (20°C - 35°C)0.02% of output value
- Pull Down Resistors on + and - Inputs10 MOhm to AGround
- ProtectionESD to IEC 61000-4-2 ±4 kV contact, short to 24 V, +15 V, or -15 V
- Sampling Rate6.25 khz (160 µSec, for all 8 channels)
- Operating Temperature0 - 55°C
- Storage Temperature-40 - 85°C
- AltitudeUp to 2000 meters
- Humidity5 - 95% non-condensing
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 in.)
- MountingDIN rail
- ComplianceCE
