Analog Input/Output Modules
Analog Input/Output Modules

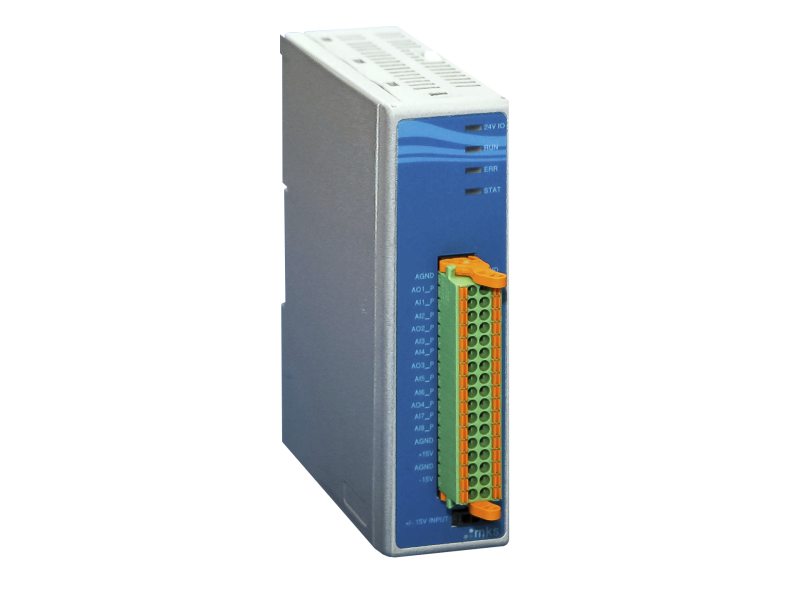

MKS Analog Input/Output Modules are a compact and high density solution for integrating analog input and output channels with MKS Automation Platform PAC or CM modules. AIO modules support a variety output and output ranges, to interface any type of analog I/O with the MKS platform. Each AIO module supports 8 analog inputs and 4 analog outputs.
- 8 analog inputs and 4 analog outputs
- Current or voltage inputs
- EtherCAT or MKS system bus See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AS11880G-12Analog IO Module, 8 Voltage Inputs, 4 Voltage Outputs, MKS System Bus | |||||
 | AS11880G-32Analog IO Module, 8 Current Inputs, 4 Voltage Outputs, MKS System Bus |
Specifications
- TypeAnalog Input/Output Module
- ADC Native Resolution16-bits
(irrespective of the range user selects) - Number of Inputs8 (differential only)
- Number of Outputs4, differential or single ended (configured by the user)
- Minimum Precision14 noise-free bits for 95% of readings over full voltage range
- Input & Output RangesVoltage: 0-5V, 0-10V , ±5V, ±10V
Current: 0-20ma , 4-20ma
(Factory configurable between voltage and current) - Output Voltage Range-10V to 9.9997V
- Anti-alias HW Filtering200Hz ±20%, 6dB/octave minimum
- Input Voltage-10V to +9.9997V
- DAC Native Resolution16-bits
- Analog Input Minimum Input CMRR50dB, 0-1kHz
- Analog Input Sampling Rate6.25 kHz (160 µSec, for all 8 channels)
- Analog Output Output Accuracy at 25°C Ambient±1.2mV measured at I/O connector with 2 kOhm load
- Analog Output Output Accuracy Temp Drift0.02% of output value (20 - 35°C)
- Maximum Output Current5mA, into a 2 kOhm, 10 nF load
- Minimum Common Mode Voltage Range±8V
- Minimum Input Impedance10 milliohms
- Maximum Power Consumption per ModuleAssuming all AOs are current outputs @20mA ≥24V_IO@ 0.25Amp, 24V_CORE@ 0.15Amp
- Pull Down Resistors on + and - Inputs10 milliohms to Ground
- ProtectionESD to IEC 61000-4-2 ±4kV contact, short to 24V, +15V, or -15V
- Operating Temperature0° to +55°C
- Storage Temperature-40 to 85°C
- AltitudeUp to 2000 meters
- Humidity5 to 95% non-condensing
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
- MountingDIN rail
- ComplianceRoHs, CE
Features
MKS Automation Platform
These modules are part of the MKS Automation Platform that provides a modular, scalable and configurable solution to meet your automation and control requirements. Designed to provide a complete automation solution to improve operational and productivity efficiencies, the Automation Platform enables faster implementations, provides lowest total cost of ownership, and improves utilization of existing tools and assets.
Resources
Drawings & CADs
MKS AIO Analog Input/Output Module Model File(37.8 MB, STEP)
