1249B Solenoid Control Valve Driver
Overview

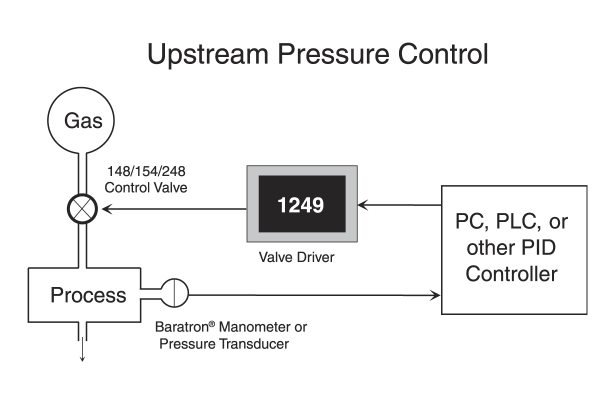

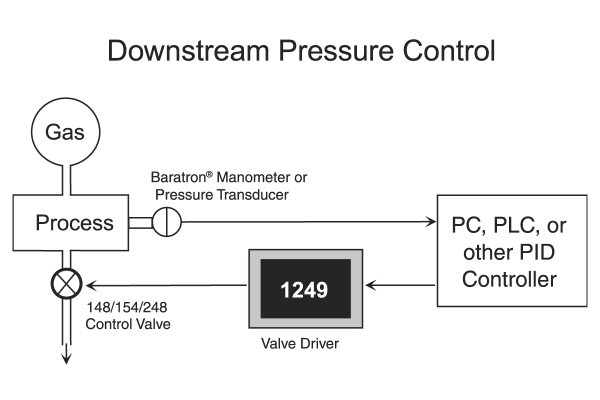

- Enables PC, PLC, or other user- supplied control algorithm to operate a proportioning control valve
- Makes use of existing system capabilities to lower the cost of pressure or flow control
- Flexible power and signal requirements
- Small package can be mounted wherever space is available
Products
Specifications
-

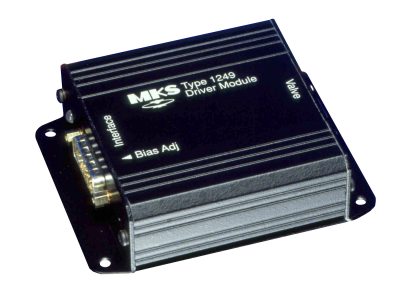

Type1249 Solenoid Control Valve Driver
-

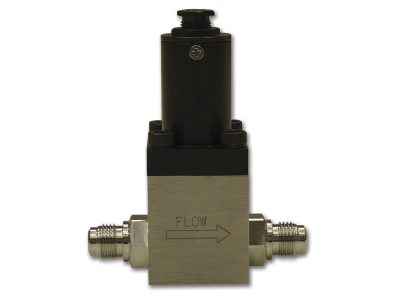

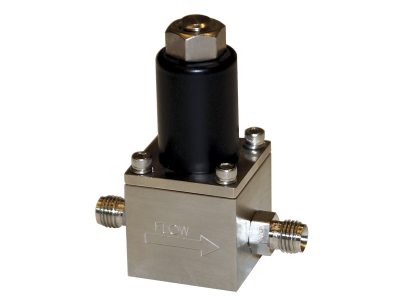

For Use With148J & 248D Pressure Control Valves
-
Power Input±15 VDC ±5% @ 330 mA max. or
24 VDC ±10% @ 270 mA max.(including valve) -
Signal InputAnalog: 0-5 VDC, 0-10 VDC or 4-20 mA (user selectable)
Digital: TTL or open collector overrides to open or close valve -
Output Signal0-300 mA
-
Operating Temperature0 - 50°C
-
Storage Humidity0% to 95% RH non-condensing
-
DisplayValve open/valve closed LED
-
ConnectorsInput: 15-pin Type “D” male
Output: 9-pin Type “D” female -
Dimensions1.13 inches H x 3.28 inches L x 4.12 inches D (28.7 mm x 83.3 mm x 104.6 mm)
-
ControlsManual bias pot
-
ComplianceCE
