220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 1 Torr, 0.5 in. Tube, NEMA1, 45C
$2,663.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 1 Torr, 8 VCR, NEMA1, 45C
$2,866.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 1 Torr, NW16 ISO-KF, NEMA1, 45C
$2,866.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 10 Torr, 0.5 in. Tube, NEMA1, 45C
$2,663.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 10 Torr, 8 VCR, NEMA1, 45C
$2,866.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 10 Torr, NW16 ISO-KF, NEMA1, 45C
$2,866.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 100 Torr, 0.5 in. Tube, NEMA1, 45C
$2,663.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 100 Torr, 8 VCR, NEMA1, 45C
$2,866.00
220d baratron heated capacitance manometer
Vacuum Pressure Transducer, Differential, 100 Torr, NW16 ISO-KF, NEMA1, 45C
$2,866.00

Configuration Options

Description

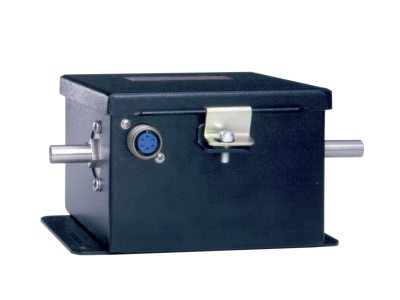

220d baratron heated capacitance manometer 220DD Differential Capacitance Manometer, 45°C, 0.1-1000 Torr, NEMA1

Specifications

  • Type
    Pressure Transducer and Transmitter
  • Sensor Type
    Industrial Capacitance Manometer
  • Measurement Type
    Differential
  • Full Scale Pressure Ranges
    1, 10, 100, 1000, 5000, 10000, 15000, 20000, 25000 Torr
  • Sensor Temperature
    Controlled to 45°C
  • Accuracy
    ±0.15% of Reading (± temperature coefficients)
  • Resolution
    0.01% of Full Scale
  • Analog Output
    0 to 10 VDC into > 10K Ω load and 4 to 20 mA into <500 Ω load
  • Electrical Connector
    Mating connector P/N MS306A-14S-6S; MKS Connector Kit 220C-AC-K1
  • Zero Temperature Coefficient
    0.008% of Full Scale/°C for 1 Torr
    0.005% of Full Scale/°C > 1 Torr
  • Span Temperature Coefficient
    0.02% of Reading/°C
  • Exposed Materials
    Px side: Inconel
    Pr side: Inconel, Ceramic, Palladium, Stainless Steel, Glass
  • Volume
    Measurement Side (Px): 7.0 cc
    Reference Side (Pr): 19.0 cc
  • Overpressure Limit
    120% of Full Scale or 20 psi (140 kPa), whichever is greater For Full Scale ranges less than 1000 Torr
  • Power Requirements
    115/230 VAC, 50/60 Hz
  • Enclosure Rating
    NEMA 1

Features
