355 Micro-Ion® Hot-cathode Bayard-Alpert Vacuum Sensors
Overview
Granville-Phillips® 355 Micro-Ion® Hot-cathode Bayard-Alpert Ionization Vacuum Gauges are the smallest Bayard-Alpert style gauges. They are more rugged and wider range than glass gauges. In addition, they generate less heat and provide greater burnout resistance.
- Small size that allows for easy installation in complex, tightly packed vacuum systems
- Rugged, all-metal design that eliminates costly downtime due to glass breakage
- Wider usable range compared to glass gauges
- Dual burn-out resistant filaments that provide long life for increased uptime
- Lower power requirements that result in less heat generation
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
355001-TA Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, 0.75 in. Tube | $291 |
|
||||
|
355001-TD Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, NW16 ISO-KF | $325 |
|
||||
|
|
355001-TE Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, NW25 ISO-KF | $331 |
|
||||
|
355001-TF Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, 1.33 in. OD CF | $331 |
|
||||
|
|
355001-TG Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, 2.75 in. OD CF | $343 |
|
||||
|
355001-TH Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, 8 VCR Male | $343 |
|
||||
|
|
355001-TJ Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, 1.0 in. tube | $331 |
|
||||
|
|
355001-TK Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, NW40 ISO-KF | $343 |
|
||||
|
|
355001-YA Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, 0.75 in. Tube | $291 |
|
||||
|
|
355001-YD Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, NW16 ISO-KF | $325 |
|
||||
|
|
355001-YE Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, NW25 ISO-KF |
|
$331 |
|
|||
|
|
355001-YF Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, 1.33 in. OD CF | $331 |
|
||||
|
|
355001-YG Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, 2.75 in. OD CF |
|
$343 |
|
|||
|
|
355001-YH Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, 8 VCR Male | $343 |
|
||||
|
|
355001-YJ Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, 1.0 in. tube | $331 |
|
||||
|
|
355001-YK Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, NW40 ISO-KF | $343 |
|
||||
|
|
355001-YM Vacuum Gauge, Bayard-Alpert, Hot Cathode, Iridium, 5 x 10-10 to 5 x 10-2 Torr, NW16 ISO-KF Extended | $361 |
|
Specifications
-
Sensor TypeMicro-Ion Ionization Gauge
-
Measurement Range5x10-10 to 5x10-2 Torr
6x10-10 to 7x10-2 mbar
6x10-8 to 7 Pa -
FilamentYttria-coated iridium or tungsten
-
Exposed Materials304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar®
-
Bake Out Temperature200°C maximum, non-operating, cable disconnected
-
Internal Volume10.8 cc to port screen
-
Weight113 g (4 oz) with NW16KF fitting
-
Sensitivity for N220/Torr, 15/mbar, 0.15/Pa
-
X-ray Limit< 3x10-10 Torr, < 4 x10-10 mbar, < 4x10-8 Pa
Features
Resources
Literature
- Vacuum Measurement Product Guide (711.5 kB, PDF)

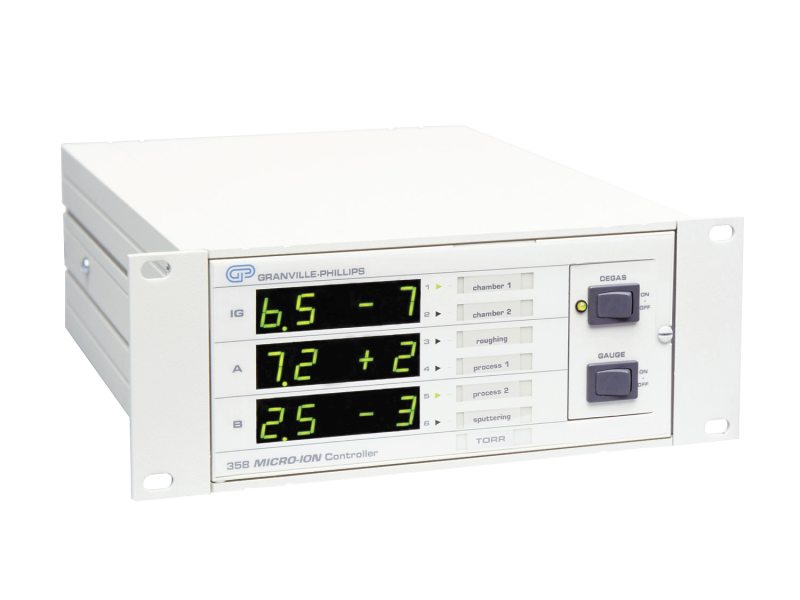

- 358 Micro-Ion® Gauge Controller & 355 Micro-Ion® Gauge (348.7 kB, PDF)
Manuals
- Micro-Ion® Gauge Adapter Installation and Operating Instructions (229.1 kB, PDF)
- 355 Micro-Ion® Gauge Instruction Manual (013606) (98.7 kB, PDF)
Other
- 355 RoHS Certificate of Compliance (543.2 kB, PDF)
