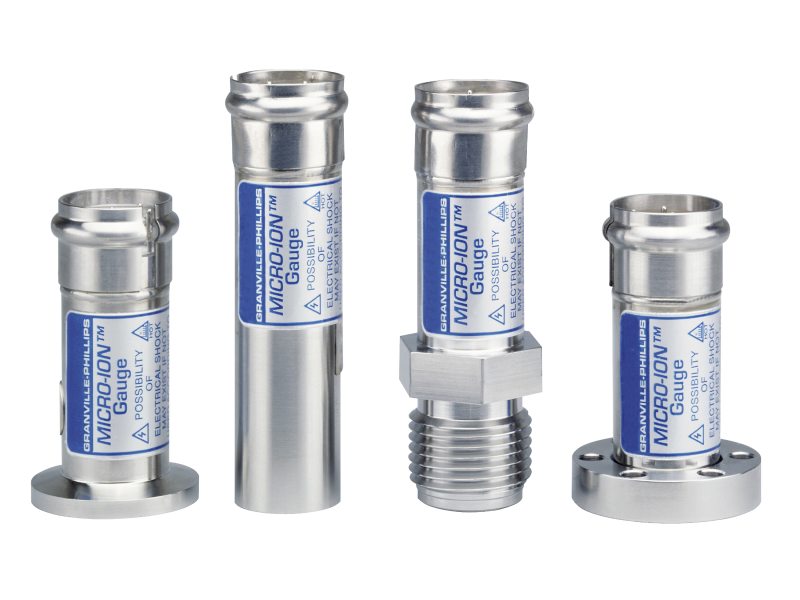

The Granville-Phillips® 358 Micro-Ion® Vacuum Gauge Controller is designed to obtain the highest performance from Granville-Phillips® Micro-Ion® Gauges. It is capable of measuring from a lower limit in the 10^-10 Torr range to 5x10^-2 Torr. Pressure measurement range can be extended to Atmosphere with the Dual Convectron® Vacuum Gauge Option.

Compact, reliable, rack-mount controller for optimum Micro-Ion® Gauge performance
Pressure measurement from 3x10^-10 Torr to 5x10^-2 Torr
Dual Convectron® Gauge option extends the measurement range to Atmosphere
RS-232 or RS-485/422 computer interface options
Process control options with up to six setpoint relays and manual override

See All Features

Products

Compare	Description	Compatibility	rankScore	Set Point Configuration	Interface	Units	Electrical Plug	Availability	Price
358501-010-M1 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, mBar, 120 V $2,284 Show	358501-010-M1 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, mBar, 120 V	UNIVERSAL	1.0	none	none	mbar	North America and Japan 115 VAC	Show	$2,284
358501-010-T1 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 120 V $2,284 Show	358501-010-T1 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 120 V	UNIVERSAL	1.0	none	none	Torr	North America and Japan 115 VAC	Show	$2,284
358501-010-T2 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 240 V $2,284 Show	358501-010-T2 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 240 V	UNIVERSAL	1.0	none	none	Torr	North America 240 VAC	Show	$2,284
358501-010-T3 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 220V European $2,284 Show	358501-010-T3 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 220V European	UNIVERSAL	1.0	none	none	Torr	Universal Europe 220 VAC	Show	$2,284
358501-010-T4 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 240V UK $2,284 Show	358501-010-T4 Vacuum Gauge Controller, Micro-Ion, Dual Convectron Card, Torr, 240V UK	UNIVERSAL	1.0	none	none	Torr	United Kingdom 240 VAC	Show	$2,284
358501-01A-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, 2 Relays, 120V $2,699 Show	358501-01A-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, 2 Relays, 120V	UNIVERSAL	1.0	2 set point relays for Micro-Ion Gauge	none	Torr	North America and Japan 115 VAC	Show	$2,699
358501-01B-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, 6 Relays, 120V $2,888 Show	358501-01B-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, 6 Relays, 120V	UNIVERSAL	1.0	6 set point relays, 2 per channel	none	Torr	North America and Japan 115 VAC	Show	$2,888
358501-A00-T1 Vacuum Gauge Controller, Micro-Ion, RS232, Torr Units, 120 VAC Cord $2,190 Show	358501-A00-T1 Vacuum Gauge Controller, Micro-Ion, RS232, Torr Units, 120 VAC Cord	UNIVERSAL	1.0	none	RS232	Torr	North America and Japan 115 VAC	Show	$2,190
358501-A10-P1 Vacuum Gauge Controller, Micro-Ion, RS232, Dual Convectron, Pascal, 120V $2,856 Show	358501-A10-P1 Vacuum Gauge Controller, Micro-Ion, RS232, Dual Convectron, Pascal, 120V	UNIVERSAL	1.0	none	RS232	Pa	North America and Japan 115 VAC	Show	$2,856
358501-A10-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, RS232, 120V $2,856 Show	358501-A10-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, RS232, 120V	UNIVERSAL	1.0	none	RS232	Torr	North America and Japan 115 VAC	Show	$2,856
358501-A1A-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, 2 Relays, Torr, RS232, 120V $3,266 Show	358501-A1A-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, 2 Relays, Torr, RS232, 120V	UNIVERSAL	1.0	2 set point relays for Micro-Ion Gauge	RS232	Torr	North America and Japan 115 VAC	Show	$3,266
358501-A1B-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, 6 Relays, Torr, RS232, 120V $3,460 Show	358501-A1B-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, 6 Relays, Torr, RS232, 120V	UNIVERSAL	1.0	6 set point relays, 2 per channel	RS232	Torr	North America and Japan 115 VAC	Show	$3,460
358501-B00-T1 Vacuum Gauge Controller, Micro-Ion, RS485, Torr Units, 120 VAC Cord $2,190 Show	358501-B00-T1 Vacuum Gauge Controller, Micro-Ion, RS485, Torr Units, 120 VAC Cord	UNIVERSAL	1.0	none	RS485/422	Torr	North America and Japan 115 VAC	Show	$2,190
358501-B10-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, RS485/422, 120V $2,856 Show	358501-B10-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, Torr, RS485/422, 120V	UNIVERSAL	1.0	none	RS485/422	Torr	North America and Japan 115 VAC	Show	$2,856
358501-B1A-M1 Vacuum Gauge Controller, Micro-Ion, RS485, Dual Convectron, 2 Relays, mBar, 120V $3,266 Show	358501-B1A-M1 Vacuum Gauge Controller, Micro-Ion, RS485, Dual Convectron, 2 Relays, mBar, 120V	UNIVERSAL	1.0	2 set point relays for Micro-Ion Gauge	RS485/422	mbar	North America and Japan 115 VAC	Show	$3,266
358501-B1A-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, 2 Relays, Torr, RS485/422, 120V $3,266 Show	358501-B1A-T1 Vacuum Gauge Controller, Micro-Ion, Half-rack Mount, Dual Convectron, 2 Relays, Torr, RS485/422, 120V	UNIVERSAL	1.0	2 set point relays for Micro-Ion Gauge	RS485/422	Torr	North America and Japan 115 VAC	Show	$3,266
358501-B1B-T1 Vacuum Gauge Controller, Micro-Ion, RS485, Dual Convectron, 6 Relays, Torr, 120V $3,460 Show	358501-B1B-T1 Vacuum Gauge Controller, Micro-Ion, RS485, Dual Convectron, 6 Relays, Torr, 120V	UNIVERSAL	1.0	6 set point relays, 2 per channel	RS485/422	Torr	North America and Japan 115 VAC	Show	$3,460

Show All

Specifications

Measurement Range

Torr: 5x10^-10 to 5x10^-2 (to 1000 Torr with Convectron option)
mbar: 6x10^-10 to 7x10^-2 (to 1300 mbar with Convectron option)
Pa: 6x10^-8 to 7 (to 130 kPa with Convectron option)
(for air and N2)
Display

2 digits plus exponent, green LED
Display Update Rate

Every 0.5 sec
Power Requirements

100 to 240 Vac, 50 to 60 Hz, 50 W max
Communication Protocol

RS-232 or RS-485/422
Analog Output

Micro-Ion: 1 Volt/decade, logarithmic, 0 to 10 V
Set Point Contact Rating

5 A at 30 Vdc, 5 A at 120 Vac, 4 A at 240 Vac, resistive load
Set Point Configuration

Single-pole, double-throw (SPDT) relays
Emission Current

0.02, 1 or 4 mA, switch selectable
Degas

Electron bombardment, 4 W with 2-minute timer

Operating Temperature

0° to 40°C
Storage Temperature

-40° to 70°C
Case Materials

Aluminum extrusion
Filament Selections

Filament 1, filament 2 or both, switch selectable
Overpressure Protection

Ion gauge turns off at factory set upper pressure limit
Remote Input Signals

Gauge on/off and degas on/off, selected by momentary continuity to ground
Remote Output Signals

Gauge status indicated by a single-pole, double-throw relay rated at 1 A @ 30 VDC resistive, AC non-inductive
Connector

9-pin subminiature-D male
Weight

1.8 kg (4 lbs)

Features

Accessories

Compatible Cables

Description	Compatibility	Avail.	Price
358011-10 Vacuum Gauge Cable, Micro-ion Gauge to Controller, 10 ft.	UNIVERSAL	Show	$640
358011-50 Vacuum Gauge Cable, Micro-ion Gauge to Controller, 50 ft.	UNIVERSAL	Show	$894
358011-25 Vacuum Gauge Cable, Micro-ion Gauge to Controller, 25 ft.	UNIVERSAL	Show	$1,115
370021 Mounting Hardware, for Two 358 Controllers	UNIVERSAL	Show	$81
370010 Mounting Hardware, for One 358 Controller, Left or Right Side Mounting	UNIVERSAL	Show	$81
370011 Mounting Hardware, for One 358 Controller, Center Mount	UNIVERSAL	Show	$81
