475 Convectron® Vacuum Gauge Controller
Overview

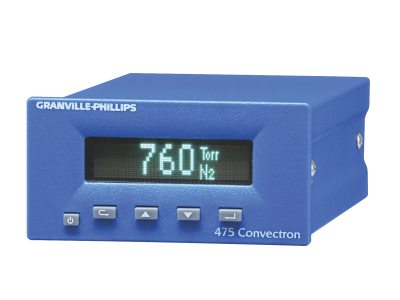

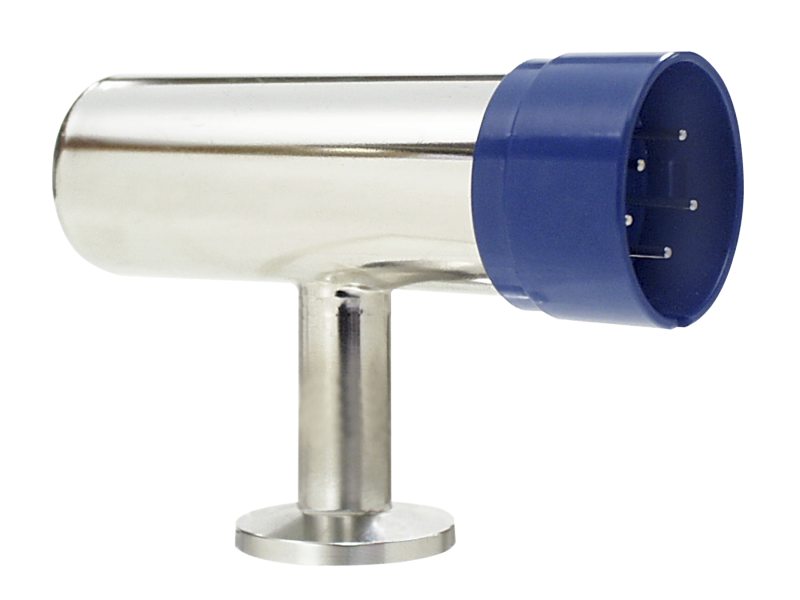

The Granville-Phillips® 475 Convectron® Vacuum Gauge Controller combines with the industry-standard Series 275 Convectron® gauge to provide high performance vacuum pressure measurement using a unique variation of thermal conductivity. The Convectron® gauge is a convection-enhanced Pirani design vacuum gauge that features individually calibrated gauges, temperature compensation and convection technology for increased accuracy and repeatable vacuum measurements over seven decades from 1x10-4 Torr to Atmosphere.
- Vacuum pressure measurement from 1x10-4 Torr to Atmosphere
- High-performance compact controller for bench-top or panel mount applications
- I/O options include analog outputs, setpoint relays, and serial communications
- Pre-programmed gas curves for N2, Ar, He, CO2 and O2
- Intuitive menu control for simplified configuration and parameter setup
- RoHS and CE compliant
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
475001-00-M Vacuum Gauge Controller, Convectron®, mBar Units | $699.00 |
|
||||
|
|
475001-00-P Vacuum Gauge Controller, Convectron®, Pascal Units | $699.00 |
|
||||
|
|
475001-00-T Vacuum Gauge Controller, Convectron®, Torr Units |
|
$699.00 |
|
|||
|
|
475001-02-M Vacuum Gauge Controller, Convectron®, 2 Relays, mBar Units | $877.00 |
|
||||
|
|
475001-02-P Vacuum Gauge Controller, Convectron®, 2 Relays, Pascal Units | $877.00 |
|
||||
|
|
475001-02-T Vacuum Gauge Controller, Convectron®, 2 Relays, Torr Units |
|
$877.00 |
|
|||
|
|
475001-A0-M Vacuum Gauge Controller, Convectron®, RS232, mBar Units | $867.00 |
|
||||
|
|
475001-A0-P Vacuum Gauge Controller, Convectron®, RS232, Pascal Units | $867.00 |
|
||||
|
|
475001-A0-T Vacuum Gauge Controller, Convectron®, RS232, Torr Units | $867.00 |
|
||||
|
|
475001-A2-M Vacuum Gauge Controller, Convectron®, RS232, 2 Relays, mBar Units | $1,045.00 |
|
||||
|
|
475001-A2-P Vacuum Gauge Controller, Convectron®, RS232, 2 Relays, Pascal Units | $1,045.00 |
|
||||
|
|
475001-A2-T Vacuum Gauge Controller, Convectron®, RS232, 2 Relays, Torr Units | $1,045.00 |
|
||||
|
|
475001-B0-M Vacuum Gauge Controller, Convectron®, RS485, mBar Units | $867.00 |
|
||||
|
|
475001-B0-P Vacuum Gauge Controller, Convectron®, RS485, Pascal Units | $867.00 |
|
||||
|
|
475001-B0-T Vacuum Gauge Controller, Convectron®, RS485, Torr Units | $867.00 |
|
||||
|
|
475001-B2-M Vacuum Gauge Controller, Convectron®, RS485, 2 Relays, mBar Units | $1,045.00 |
|
||||
|
|
475001-B2-P Vacuum Gauge Controller, Convectron®, RS485, 2 Relays, Pascal Units | $1,045.00 |
|
||||
|
|
475001-B2-T Vacuum Gauge Controller, Convectron®, RS485, 2 Relays, Torr Units | $1,045.00 |
|
Specifications
-
TypeConvectron® Gauge Controller
-
Measurement Range1x10-4 Torr to Atmosphere
1x10-4 mbar to Atmosphere
1x10-2 Pa to Atmosphere
(N2) -
Step Size at Minimum Pressure1 x 10-4 Torr, 1 x 10-4 mbar, 1 x 10-2 Pa
-
DisplayVacuum Fluorescent
-
Display Update RateEvery 0.5 sec
-
UnitsmBar, Pascal, or Torr (optional)
-
Compatible withSeries 275 Convectron® Vacuum Gauges
-

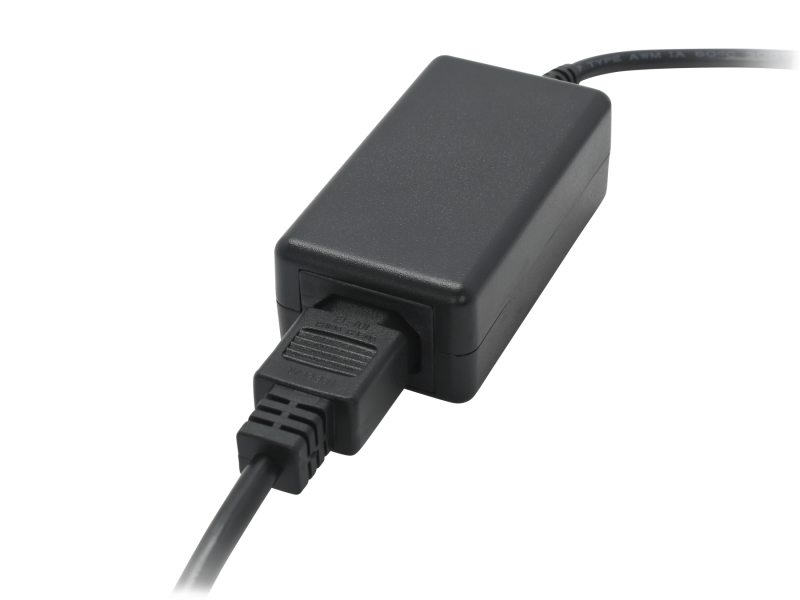

Power Requirements12 to 24 VDC, 6 W continuous
-
Communication ProtocolRS232 or RS485 (optional)
-
Relays0 or 2 (optional)
-
Set Point Contact Rating5 A @ 250 VAC resistive load
-
Set Point ConfigurationTwo single pole, double-throw (optional)
-
Set Point Range1 x 10-3 to 1000 Torr
1 x 10-3 to 1333 mbar
1 x 10-1 Pa to 133 kPa -
Set Point Resolution2 significant digits
-
Operating Temperature0° to 40°C
-
Storage Temperature-40°C to 70°C
-
Weight720 gm (25 oz)
-
ComplianceCE
Features
Resources
Literature
- 475 Convectron® Gauge Controller (266 kB, PDF)
Manuals
- 475 Convectron® Vacuum Gauge Controller Manual (2.3 MB, PDF)
