ISO-BF Vacuum Flange Bolt Sets
Overview

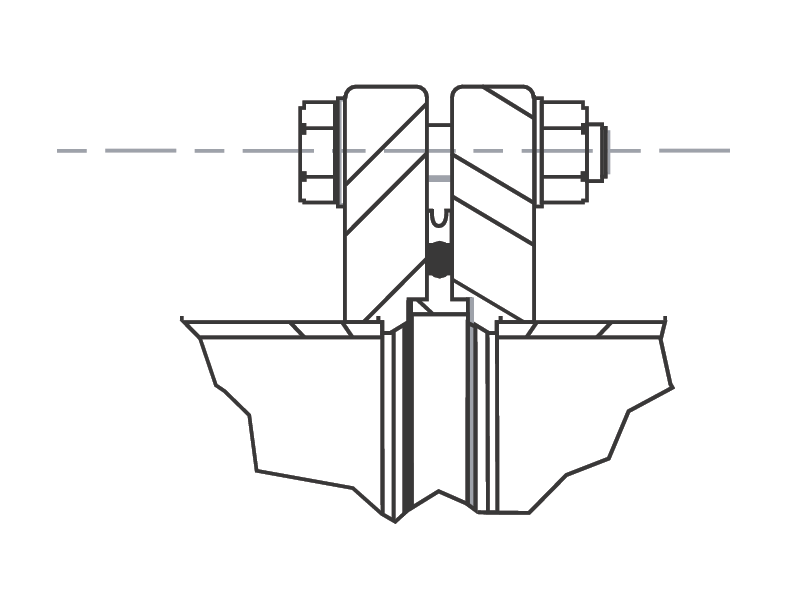

- Bolt ISO-BF flanges to tapped flanges
- Includes correct bolt size and number of bolts
- NW63 to NW630 flange sizes
- Torque to 7-10 lb-ft
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100761306 Flange Bolt Set, NW63 ISO-BF, M8 Thread x 40 mm, 1.25 mm Pitch, Set of 4 |
|
$17.10 |
|
|||
|

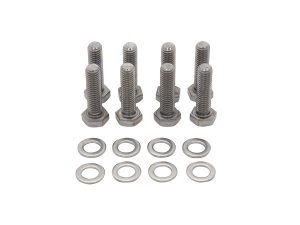

100761308 Flange Bolt Set, NW80 or NW100 ISO-BF, M8 x 40 mm, 1.25 mm Pitch, Set of 8 |
|
$27 |
|
|||
|

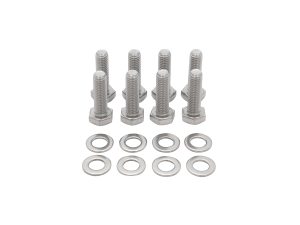

100761316 Flange Bolt Set, NW160 ISO-BF, M10 x 50 mm, 1.50 mm Pitch, Set of 8 |
|
$72 |
|
|||
|
100761320 Flange Bolt Set, NW200 or NW250 ISO-BF, M10 x 50 mm, 1.50 mm Pitch, Set of 12 | $41 |
|
||||
|
|
100761332 Flange Bolt Set, NW320 ISO-BF, M12 x 60 mm, 1.75 mm Pitch, Set of 12 | $37 |
|
||||
|
|
100761340 Flange Bolt Set, NW400 or NW500 ISO-BF, M12 x 60 mm, 1.75 mm Pitch, Set of 16 | $50 |
|
||||
|
|
100761363 Flange Bolt Set, NW630 ISO-BF, M12 x 65 mm, 1.75 mm Pitch, Set of 20 | $69 |
|
Specifications
-
Component TypeFlange Bolt Set
-
SeriesSeries 76
-
Flange TypeISO-BF
-
MaterialStainless Steel
