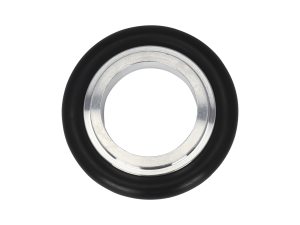

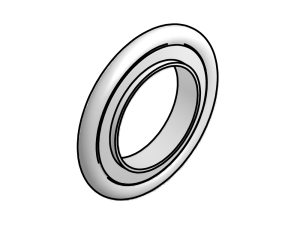

ISO-KF Aluminum-Buna-N Adaptive Centering Ring Seal Assemblies

ISO-KF Aluminum-Buna-N Adaptive Centering Ring Seal Assemblies

Products
Features
Resources
Contact Us

Overview

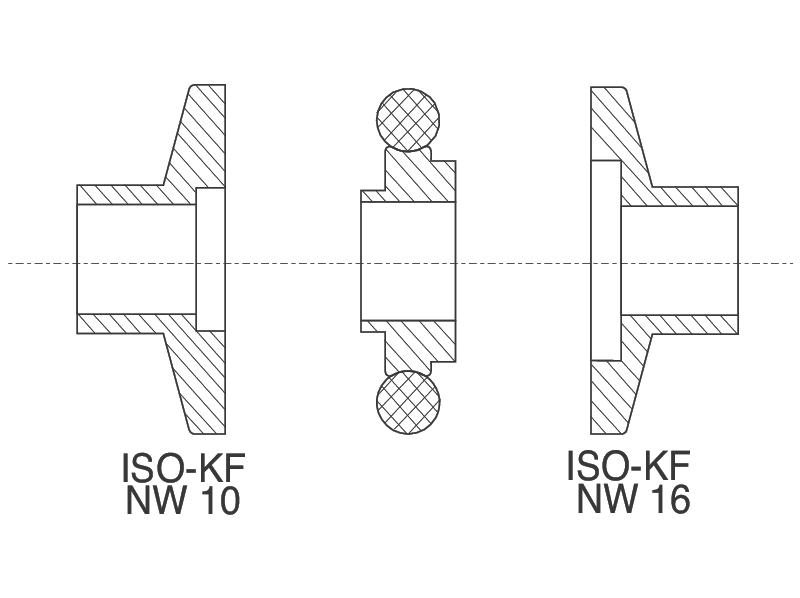

These aluminum adaptive centering rings feature a Buna-N O-Ring rated to 80°C and can work with obsolete bore sizes. They are used to seal the connection between two ISO-KF vacuum flange faces when used with a flange clamp.

Seal connection between two ISO-KF flange faces
Replaceable 80 °C Max. Buna-N O-Ring
Adapts to obsolete bore sizes

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Flange Size 2	Availability	Featured Item	Price		Brand
		100315801 Adaptive Centering Ring, ISO-KF, NW16 to NW10, Buna-N O-ring, Aluminum $6.29 Show	100315801 Adaptive Centering Ring, ISO-KF, NW16 to NW10, Buna-N O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW16	NW10	Show		$6.29
		100315803 Adaptive Centering Ring, ISO-KF, NW25 to NW20, Buna-N O-ring, Aluminum $7.94 Show	100315803 Adaptive Centering Ring, ISO-KF, NW25 to NW20, Buna-N O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	NW20	Show		$7.94
		100315805 Adaptive Centering Ring, ISO-KF, NW40 to NW32, Buna-N O-ring, Aluminum $10.70 Show	100315805 Adaptive Centering Ring, ISO-KF, NW40 to NW32, Buna-N O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	NW32	Show		$10.70

Show All

Specifications

Component Type

Adaptive Centering Ring
Series

Series 31
Material

Aluminum

Seal Material

Buna-N
Flange Type

ISO-KF
Maximum Temperature

80°C

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
