Compare Description Drawings, CAD & Specs Tube OD Flange Size Bore Diameter Inner Diameter Thickness Availability Price
100319700
$48
100319700 0.5 in. NW10 0.51 in. (13 mm) 0.44 in. (11 mm) 0.20 in. (5 mm) $48
100319701
$11.14
100319701 0.75 in. NW16 0.76 in. (19 mm) 0.68 in. (17 mm) 0.20 in. (5 mm) $11.14
100319703
$12.68

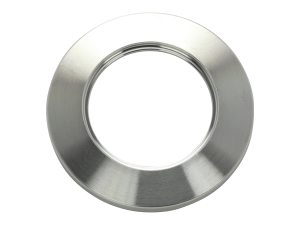

100319703 1.0 in. NW25 1.02 in. (26 mm) 0.89 in. (23 mm) 0.20 in. (5 mm) $12.68
100319705
$17.98

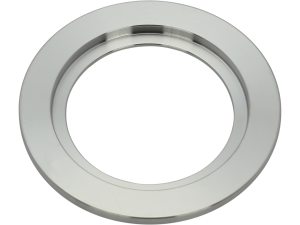

100319705 1.5 in. NW40 1.52 in. (39 mm) 1.39 in. (35 mm) 0.20 in. (5 mm) $17.98
100319706
$26
100319706 2.0 in. NW50 2.02 in. (51 mm) 1.89 in. (48 mm) 0.20 in. (5 mm) $26
100319710
$11.14

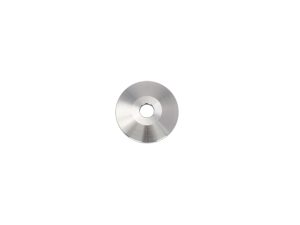

100319710 0.25 in. NW10 0.26 in. (7 mm) 0.26 in. (7 mm) 0.20 in. (5 mm) $11.14
100319711
$11.14
100319711 0.25 in. NW16 0.26 in. (7 mm) 0.26 in. (7 mm) 0.20 in. (5 mm) $11.14
100319713
$12.68

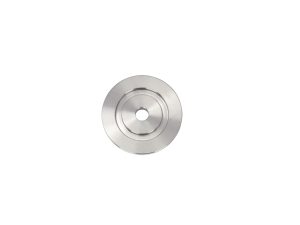

100319713 0.25 in. NW25 0.26 in. (7 mm) 0.26 in. (7 mm) 0.20 in. (5 mm) $12.68
100319715
$17.98
100319715 0.25 in. NW40 0.26 in. (7 mm) 0.26 in. (7 mm) 0.20 in. (5 mm) $17.98
100319716
$24.68

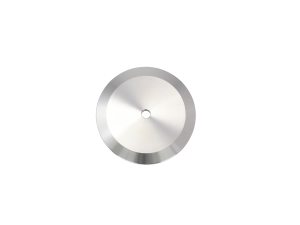

100319716 0.25 in. NW50 0.26 in. (7 mm) 0.26 in. (7 mm) 0.20 in. (5 mm) $24.68
100319720
$11.14
100319720 0.375 in. NW10 0.39 in. (10 mm) 0.39 in. (10 mm) 0.20 in. (5 mm) $11.14
100319721
$11.14
100319721 0.375 in. NW16 0.39 in. (10 mm) 0.39 in. (10 mm) 0.20 in. (5 mm) $11.14
100319723
$12.68
100319723 0.375 in. NW25 0.39 in. (10 mm) 0.39 in. (10 mm) 0.20 in. (5 mm) $12.68
100319725
$17.98
100319725 0.375 in. NW40 0.39 in. (10 mm) 0.39 in. (10 mm) 0.20 in. (5 mm) $17.98
100319726
$78
100319726 0.375 in. NW50 0.39 in. (10 mm) 0.39 in. (10 mm) 0.20 in. (5 mm) $78
100319731
$11.14
100319731 0.5 in. NW16 0.51 in. (13 mm) 0.51 in. (13 mm) 0.20 in. (5 mm) $11.14
100319733
$12.68
100319733 0.5 in. NW25 0.51 in. (13 mm) 0.51 in. (13 mm) 0.20 in. (5 mm) $12.68
100319735
$17.98
100319735 0.5 in. NW40 0.51 in. (13 mm) 0.51 in. (13 mm) 0.20 in. (5 mm) $17.98
100319736
$26
100319736 0.5 in. NW50 0.51 in. (13 mm) 0.51 in. (13 mm) 0.20 in. (5 mm) $26
100319743
$12.68
100319743 0.75 in. NW25 0.76 in. (19 mm) 0.63 in. (16 mm) 0.20 in. (5 mm) $12.68
100319745
$17.98
100319745 0.75 in. NW40 0.76 in. (19 mm) 0.63 in. (16 mm) 0.20 in. (5 mm) $17.98
100319746
$60
100319746 0.75 in. NW50 0.76 in. (19 mm) 0.63 in. (16 mm) 0.20 in. (5 mm) $60
100319755
$17.98
100319755 1.0 in. NW40 1.02 in. (26 mm) 0.89 in. (23 mm) 0.20 in. (5 mm) $17.98
100319756
$26
100319756 1.0 in. NW50 1.02 in. (26 mm) 0.89 in. (23 mm) 0.20 in. (5 mm) $26
100319766
$26
100319766 1.5 in. NW50 1.52 in. (39 mm) 1.39 in. (35 mm) 0.20 in. (5 mm) $26
100319801
$87
100319801 3.0 in. NW80 3.27 in. (83 mm) 0.43 in. (11 mm) $87
100319803
$94
100319803 4.0 in. NW100 4.02 in. (102 mm) 3.87 in. (98 mm) 0.43 in. (11 mm) $94

Specifications

  • Component Type
    Bored Blank Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF

Features

Resources

Need help?

Contact an Applications Specialist by sending us an email
