ISO-MF Vacuum Flange Conical Reducers
Overview
- High conductance conical profile
- 304 Stainless Steel construction
- NW80-NW160 to NW63-NW100
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

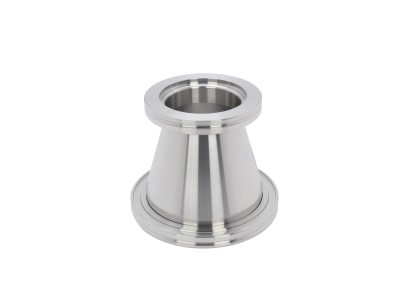

100764906 Conical Reducer, ISO-MF Flange Size NW80 to NW63, 304 Stainless Steel |
|
$261 |
|
|||
|

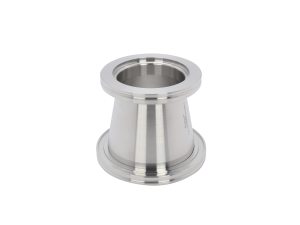

100764908 Conical Reducer, ISO-MF Flange Size NW100 to NW80, 304 Stainless Steel |
|
$309 |
|
|||
|

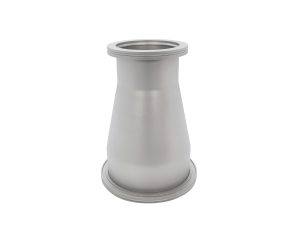

100764910 Conical Reducer, ISO-MF Flange Size NW160 to NW100, 304 Stainless Steel |
|
$541 |
|
|||
|
100764917 Conical Reducer, ISO-MF Flange Size NW100 to NW63, 304 Stainless Steel |
|
$299 |
|
|||
|
|
100764927 Conical Reducer, ISO-MF Flange Size NW160 to NW80, 304 Stainless Steel | $722 |
|
Specifications
| Models |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Component Type | Reducer | Reducer | Reducer | Reducer | Reducer | |
| Flange Type | ISO-MF | ISO-MF | ISO-MF | ISO-MF | ISO-MF | |
| Flange Size | NW80 | NW100 | NW160 | NW100 | NW160 | |
| Flange Size 2 | NW63 | NW80 | NW100 | NW63 | NW80 | |
| Length | 4.14 in. (105 mm) | 4.14 in. (105 mm) | 9.52 in. (242 mm) | 4.14 in. (105 mm) | 9.52 in. (242 mm) | |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | |
| Dimension "A" | 4.14 in. | 4.14 in. | 9.52 in. | 4.14 in. | 9.52 in. | |
| Dimension "B" | 2.87 in. | 3.83 in. | 5.78 in. | 3.83 in. | 5.78 in. | |
| Dimension "C" | 2.37 in. | 2.87 in. | 3.83 in. | 2.37 in. | 2.87 in. |
