ISO-MF Flange 90 Degree Elbows
Overview
Smooth radius 90 degree elbows have a radius that is equal to the pipe diameter. These elbows are used to make a right angle change of direction between two ISO-MF flange faces.
- 90° elbows with radius equal to pipe diameter
- 304 Stainless Steel construction
- NW63 to NW160 flange sizes
- Standard modulus
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100761608 90 Degree Elbow Fitting, NW80 Size ISO-MF Flange, Mitered | $471 |
|
||||
|
100764606 90 Degree Elbow Fitting, NW63 Size ISO-MF Flange, Smooth Radius |
|
$261 |
|
|||
|

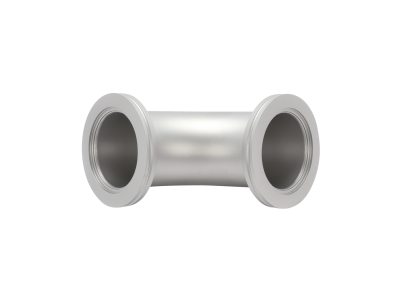

100764608 90 Degree Elbow Fitting, NW80 Size ISO-MF Flange, Smooth Radius |
|
$326 |
|
|||
|

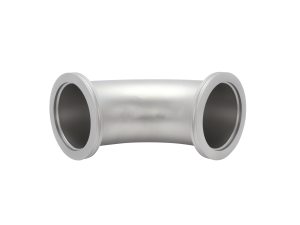

100764610 90 Degree Elbow Fitting, NW100 Size ISO-MF Flange, Smooth Radius |
|
$343 |
|
|||
|

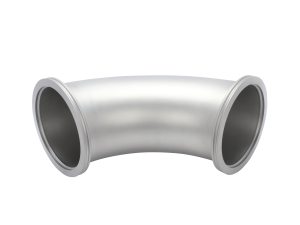

100764616 90 Degree Elbow Fitting, NW160 Size ISO-MF Flange, Smooth Radius |
|
$723 |
|
Specifications
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Component Type | Elbow | Elbow | Elbow | Elbow | |
| Flange Type | ISO-MF | ISO-MF | ISO-MF | ISO-MF | |
| Flange Size | NW63 | NW80 | NW100 | NW160 | |
| Modulus | 4.00 in. (101.6 mm) | 4.74 in. (120 mm) | 6.24 in. (158 mm) | 9.24 in. (235 mm) | |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | |
| Dimension "A" | 4.00 in. | 4.74 in. | 6.24 in. | 9.24 in. |
Features
Resources
Literature
- Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)
