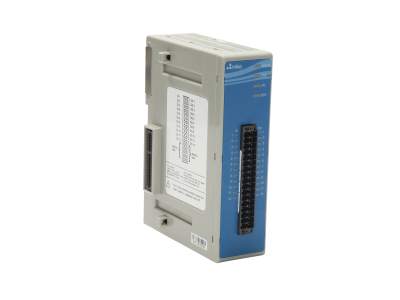

Digital Input/Output Modules
Overview
MKS digital input/output modules provide a compact and high density solution for integrating digital input and output channels with MKS PAC or CM modules. Each DIO module supports 12 digital inputs and 12 digital outputs.
- 12 digital inputs and 12 digital outputs
- compact and high density solution
- 0-24V source or sink
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
AS11893G-02 Digital IO Module, 12 Source Inputs, 12 Source Outputs, 24 VDC Logic | $458.00 |
|
||||
|
AS11893G-11 Digital IO Module, 12 Sink Inputs, 12 Sink Outputs, 24 VDC Logic | $457.80 |
|
Specifications
-
TypeDigital Input/Output Module
-
Number of Inputs12
-
Input TypeSink or Source
-
Number of Outputs12
-
Power Consumption@ 200mA ≥ 24V_IO@ 2.5Amp, 24V_CORE@ 0.15Amp (per module) Assuming all DOs are loaded
-
Input Isolation2.5 kVrms
-
DI refresh rate10µs or 1ms
-
Debounce FilterFixed to 4 cycles of DI Refresh Rate (10.8 µsec)
-
Logic Level24 VDC (8VDC - 30 VDC)
-
Maximum update rate25 µSec
-
Output TypeOpen collector sink/source
-
ProtectionESD to IEC 1000-4-2 ±4kV contact, DC + 5% (each channel)
-
Pull Up/Down Value22K
-
Sink Input Logic Level24VDC ±5%
-
Sink Input Nominal Load Impedance6 kOhm
-
Sink Input Current, Maximum OFF2.25mA (10.7 V)
-
Sink Input Current, Minimum ON3.3mA (4.5 V)
-
Sink Input Current, Maximum ON4.7mA
-
Sink Output Maximum thermal current limit (ON)2A per bank of 6
-
Sink Output Maximum Available Current Sink (ON)200mA
-
Sink Output Maximum Leakage Current (OFF)0.1mA (output tied to 24v)
-
Sink Output Maximum Voltage Drop (ON)Maximum 1.1v @ 200mA
-
Sink Output Minimum Thermal Current Limit (ON)1A per bank of 6
-
Sink Output Maximum Inductive Load Energy, 1Hz Cycled60mJ
-
Source Input Logic level24v
-
Source Input High Voltage Range OFF12.8V (2.15 mA)
-
Source Input Low Voltage Range ON15V (2.5 mA)
-
Source Input Input Current, Maximum ON4.7mA
-
Source Input Nominal Load Impedance6 kOhm
-
Source Output Maximum Available Current Source (ON)200mA
-
Source Output Maximum Thermal Current Limit (ON)2A per bank of 6
-
Source Output Maximum Leakage Current (OFF)0.1mA (output tied to ground)
-
Source Output Minimum Thermal Current Limit (ON)1A per bank of 6
-
Source Output Output High VoltageMinimum 23.7V @ 200mA
-
Source Output Maximum Inductive Load Energy, 1Hz Cycled60mJ
-
Operating Temperature0 to 55°C, with 2°C upper limit reduction per 1000 ft above sea level
-
Storage Temperature-40°C to 85°C
-
Altitude0-10,000 ft above sea level
-
Humidity5-85% non-condensing
-
Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
-
MountingDIN rail
Features
Resources
Drawings & CADs
- MKS DIO Digital Input/Output Module Model File (40.3 MB, STEP)
