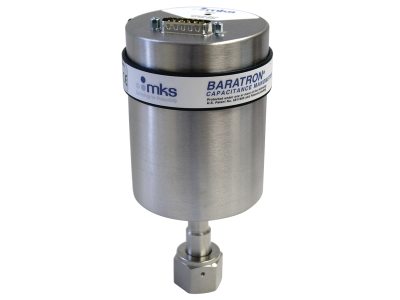

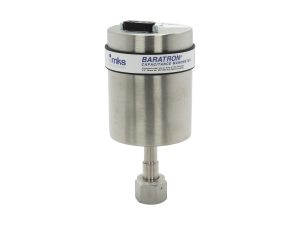

627H 0.02-25,000 Torr, Heated (45°C) Absolute Baratron® Capacitance Manometers
Overview

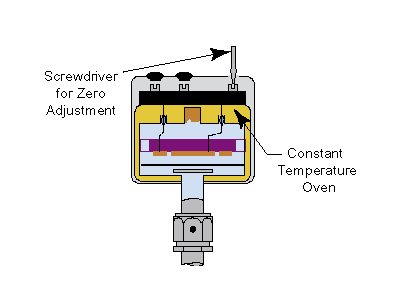

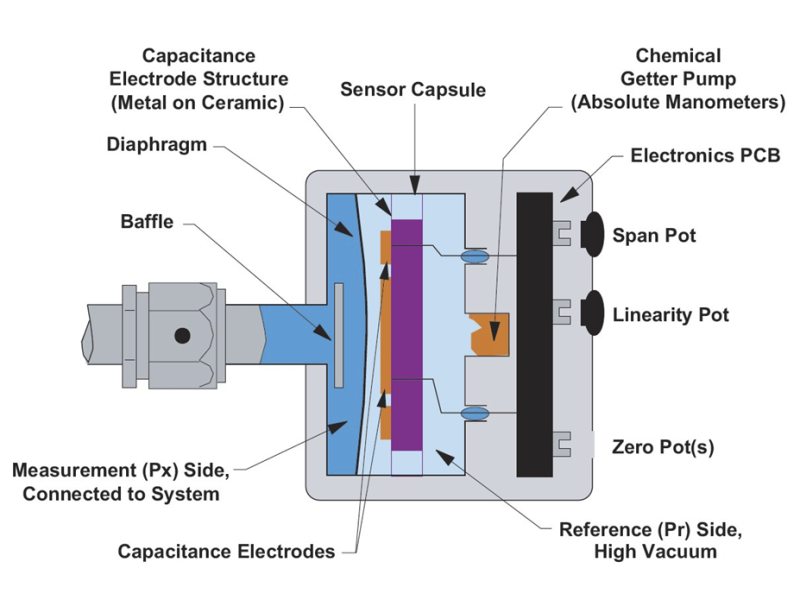

The 627H Heated (45°C) Absolute Baratron® Capacitance Manometer is temperature controlled to 45°C, accurate to 0.12% of Reading and includes updated temperature control electronics to provide superior long-term stability and repeatability. Optional heater and temperature status LED/switches indicate that the heater is in control.
- Temperature controlled to 45°C for 0.12% of reading accuracy
- 0 to 10 VDC analog output proportional to absolute pressure
- Full Scale ranges low as 20 mTorr for precise low pressure measurement
- All-Inconel corrosion-resistant wetted surfaces
- Integrated sump (US patent #5,822,685) provides particle protection
- Measures total pressure directly, independent of gas composition
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Heated Capacitance Manometer, 0.1 Torr, 45°C, 8 VCR, DB15 w/Thread Lock, Status LEDs, Vertical Calibration
$2,577.00
|
627H.1TBD2B Heated Capacitance Manometer, 0.1 Torr, 45°C, 8 VCR, DB15 w/Thread Lock, Status LEDs, Vertical Calibration | $2,577.00 |
|
|||
|
|
Heated Capacitance Manometer, 0.1 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Horizontal Calibration
$2,577.00
|
627H.1TBD6B Heated Capacitance Manometer, 0.1 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Horizontal Calibration | $2,577.00 |
|
|||
|
|
Heated Capacitance Manometer, 0.1 Torr, 45°C, NW16 ISO-KF, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Horizontal Calibration
$2,432.00
|
627H.1TDD5B Heated Capacitance Manometer, 0.1 Torr, 45°C, NW16 ISO-KF, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Horizontal Calibration | $2,432.00 |
|
|||
|
|
Heated Capacitance Manometer, 1,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Vertical Calibration
$2,432.00
|
627H13TBC1B Heated Capacitance Manometer, 1,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Vertical Calibration | $2,432.00 |
|
|||
|
|
Heated Capacitance Manometer, 1,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration
$2,577.00
|
627H13TBC2B Heated Capacitance Manometer, 1,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration | $2,577.00 |
|
|||
|
|
Heated Capacitance Manometer, 1,000 Torr, 45°C, NW16 ISO-KF, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration
$2,432.00
|
627H13TDC1B Heated Capacitance Manometer, 1,000 Torr, 45°C, NW16 ISO-KF, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration | $2,432.00 |
|
|||
|
Heated Capacitance Manometer, 10,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration
$2,779.00
|
627H14TBC1B Heated Capacitance Manometer, 10,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration | $2,779.00 |
|
|||
|
|
Heated Capacitance Manometer, 20 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Vertical Calibration
$2,432.00
|
627H21TBC1B Heated Capacitance Manometer, 20 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Vertical Calibration | $2,432.00 |
|
|||
|
|
Heated Capacitance Manometer, 20 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration
$2,577.00
|
627H21TBC2B Heated Capacitance Manometer, 20 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration | $2,577.00 |
|
|||
|
|
Heated Capacitance Manometer, 20 Torr, 45°C, NW16 ISO-KF, DB15 w/Thread Lock, 0-10 VDC, Vertical Calibration
$2,432.00
|
627H21TDC1B Heated Capacitance Manometer, 20 Torr, 45°C, NW16 ISO-KF, DB15 w/Thread Lock, 0-10 VDC, Vertical Calibration | $2,432.00 |
|
|||
|
Heated Capacitance Manometer, 2000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration
$2,779.00
|
627H23TBC1B Heated Capacitance Manometer, 2000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration |
|
$2,779.00 |
|
||
|
Heated Capacitance Manometer, 20,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration
$2,750.00
|
627H24TBC1B Heated Capacitance Manometer, 20,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration | $2,750.00 |
|
|||
|
Heated Capacitance Manometer, 5,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration
$2,779.00
|
627H53TBC1B Heated Capacitance Manometer, 5,000 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0-10 VDC, Status LEDs, Vertical Calibration | $2,779.00 |
|
Configuration Options
The following options are available for 627H Baratron® Heated Absolute Capacitance Manometers
Ordering Code Example: 627H01TBC1B
| Configuration Option | Option Code |
|---|---|
| 627H Absolute Capacitance Manometer. | 627H |
Full Scale Range |
|
| 0.02 Torr | U2T |
| 0.05 Torr | U5T |
| 0.1 Torr | .1T |
| 0.25 Torr | RET |
| 1 Torr | 01T |
| 2 Torr | 02T |
| 10 Torr | 11T |
| 20 Torr | 21T |
| 100 Torr | 12T |
| 1000 Torr | 13T |
| 2000 Torr | 23T |
| 5000 Torr | 53T |
| 10000 Torr | 14T |
| 15000 Torr | RBT |
| 20000 Torr | 24T |
| 25000 Torr | RCT |
Fittings |
|
| 0.5 in. OD Tube | A |
| 8 VCR female | B |
| 1.33 in. OD CF | C |
| NW16 ISO-KF (range < 5000 Torr) | D |
| 8 VCO female | E |
| 2.75 in. OD CF | L |
| NW25 ISO-KF (range < 5000 Torr) | Q |
Accuracy |
|
| 0.12% of Reading | C |
| 0.15% of Reading | D |
| 0.25% of Reading | E |
Options |
|
| Standard Configuration, vertical calibration 1 (ranges = 1 Torr) | 1 |
| Optional Temperature/Heater Status, vertical calibration | 2 |
| Standard Configuration, horizontal calibration 5 (ranges <1 Torr only) | 5 |
| Optional Temperature/Heater Status, horizontal calibration (ranges <1 Torr only) | 6 |
Connector |
|
| 15 pin Type "D" with Thread Locks | B |
| 15 pin Type "D" with Slide Locks | P |
Specifications
-
TypeVacuum/pressure Transducer
-
Measurement TypeAbsolute
-
Sensor TemperatureControlled to 45°C
-
Full Scale Pressure Ranges0.02, 0.05, 0.1, 0.25, 1, 2, 10, 20, 100, 1000, 2000, 5000, 10000, 15 000, 20000, 25000 Torr
-

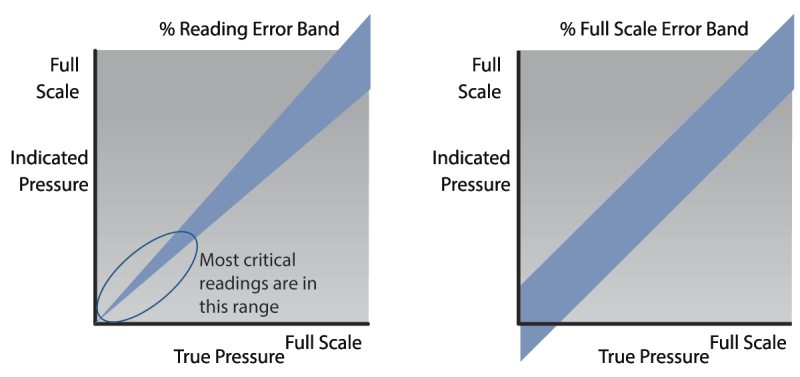

Accuracy0.12% of Reading
0.15% for 0.25, 0.1, and 0.05 Torr -
Resolution0.001% of Full Scale
0.002% of Full Scale for 0.02 and 0.05 Torr -
Analog Output0-10 VDC into >10K Ω load
-
Zero Temperature Coefficient0.002% of Full Scale/°C for 1-25000 Torr range
0.005% Full Scale/°C for 0.25 and 0.1 Torr
0.015% Full Scale/°C for 0.05 Torr
0.03% Full Scale/°C for 0.02 Torr
-
Span Temperature Coefficient0.02% of Reading/°C
-
Ambient Operating Temperature15-40°C
-
Volume6.3 cc
-
Warm-up Time2 hours for 25000 Torr Full Scale, 4 hours for 0.1 Torr Full Scale and lower
-
Overpressure Limit45 psia (310 kPa) or 120% Full Scale, whichever is greater
-
Exposed MaterialsInconel®
-
Power Requirements±15 VDC ±5% @ 0.25 Amps (max.)
-
ComplianceCE
