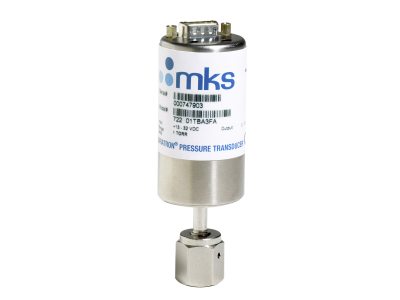

722C 1-25,000 Torr, General Purpose Absolute Baratron® Capacitance Manometer

The 722C 1-25,000 Torr, General Purpose Absolute Baratron® Capacitance Manometer is a compact, low-cost manometer for accurate, repeatable, and reliable measurement. Robust sensor construction allows high overpressure tolerances, reducing errors caused by line pressure spikes. The flexible, space-saving design of the 722C makes it the ideal solution for retrofit applications as well as new equipment designs.

Small footprint reduces system size
Overpressure limit assures no degradation in zero repeatability or performance
All-metal, all-welded construction exposing only Inconel® and stainless steel for high corrosion resistance
"Drop-in" replacement for several earlier Baratron® manometers

See All Features

Show Filters:

Showing 10 of 27 total products

Description	Compatibility	Full Scale Range	Fitting Type	Electrical Connector	Price
722C01TBA2FAVacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 0.5 in. Tube, DB9	UNIVERSAL	1 Torr	0.5 in. OD tube	9-pin D-sub	$1,400
722C01TBA2FJVacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 0.5 in. Tube, Terminal	UNIVERSAL	1 Torr	0.5 in. OD tube	5-pin terminal strip	$1,400
722C01TCE2FAVacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 8 VCR-F, DB9	UNIVERSAL	1 Torr	8 VCR female	9-pin D-sub	$1,491
722C01TCE2FJVacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 8 VCR-F, Terminal	UNIVERSAL	1 Torr	8 VCR female	5-pin terminal strip	$1,493
722C01TGA2FAVacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, NW16 ISO-KF, DB9	UNIVERSAL	1 Torr	NW16 ISO-KF	9-pin D-sub	$1,491
722C01TGA2FJVacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, NW16 ISO-KF, Terminal	UNIVERSAL	1 Torr	NW16 ISO-KF	5-pin terminal strip	$1,491
722C02TBA2FAVacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 0.5 in. Tube, DB9	UNIVERSAL	2 Torr	0.5 in. OD tube	9-pin D-sub	$1,248
722C02TBA2FJVacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 0.5 in. Tube, Terminal	UNIVERSAL	2 Torr	0.5 in. OD tube	5-pin terminal strip	$1,248
722C02TCE2FAVacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 8 VCR-F, DB9	UNIVERSAL	2 Torr	8 VCR female	9-pin D-sub	$1,338
722C02TCE2FJVacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 8 VCR-F, Terminal	UNIVERSAL	2 Torr	8 VCR female	5-pin terminal strip	$1,339

Show All

Configuration Options

The following options are available for the 722C Baratron® Absolute Capacitance Manometer.
Ordering Code Example: 722C12TCE2FJ

Configuration Option	Option Code
722C Absolute Capacitance Manometer	722C
Range Full Scale
1 Torr	01T
2 Torr	02T
10 Torr	11T
20 Torr	21T
30 Torr	31T
50 Torr	51T
100 Torr	12T
250 Torr	RDT
500 Torr	52T
1000 Torr	13T
2000 Torr (must be ordered with a fitting)	23T
5000 Torr (must be ordered with a fitting other than NW16KF)	53T
10,000 (must be ordered with a fitting other than NW16KF)	14T
20000 Torr (must be ordered with a fitting other than NW16KF)	24T
25000 Torr (must be ordered with a fitting other than NW16KF)	RCT
Fittings (compatible with)
0.5 in. (12.7 mm) OD tube	BA
0.25 in. VCR female	CD
8 VCR female	CE
Mini-CF, rotable	HA
NW16 ISO-KF	GA
Analog Output
0-10 VDC	2
0-5 VDC	3
Accuracy
0.5% of Reading	F
Electrical Connector
9-pin Type "D"	A
15-pin high density Type "D"	C
4-pin bayonet type, Bendix® -compatible	D
5-pin terminal strip	J
15-pin Type "D" on 6-inch cable	K

	Description
	722C Absolute Capacitance Manometer, Compact, 1 - 25,000 Torr, 722B Series

Specifications

Type
Vacuum/pressure Transducer
Measurement Type
Absolute
Full Scale Pressure Ranges
1-25,000 Torr (mmHg) (0.02-500 psia)
Output
0-5 VDC or 0-10 VDC into >10 kΩ load
Accuracy
0.5% of Reading
Zero Temperature Coefficient
0.008% of Full Scale/°C (10 Torr through 25,000 Torr)
0.020% of Full Scale (1 and 2 Torr)

Span Temperature Coefficient
0.04% of Reading/°C
Operating Temperature
0-50°C
15-40°C (1 and 2 Torr only)
Overpressure Limit
45 psia or 2x Full Scale, whichever is greater
Burst Pressure
10x Full Scale or 100 psi, whichever is greater
Exposed Materials
Inconel®
Compliance
Fully CE Compliant to EMC Directive 2004/108/EC1
Fully compliant to RoHS Directive 2002-95-EC

Features

Baratron® Capacitance Manometer Technology

Gas independent pressure measurement with a Baratron® capacitance manometer. Schematic shows the internal components and functional zones.

Capacitance manometers are electro-mechanical gauges that can measure both pressure and vacuum. The capacitance gauge translates a pressure-modulated movement in a thin diaphragm into an electrical signal proportional to the pressure. The pressure sensor is the thin diaphragm that is exposed to the pressure or vacuum being measured via the inlet tube. An electrode is mounted in the reference cavity behind the diaphragm. Pressure differences between the process and the reference cavity deflect the diaphragm slightly, changing the distance between it and the electrode. Variations in this distance produce variations in the capacitance between the diaphragm and the electrode creating an electrical signal that is proportional to the pressure change. Since differences in the capacitance signal are produced by physical changes within the manometer and not by changes in the gas properties, pressure measurements by the capacitance manometer are independent of the composition of the gas being measured.

Percent of Reading Accuracy

Accuracy is specified as a percent of Reading, not Full Scale, as seen in some of the lower performance devices. Percent of Reading accuracy provides you with an even more accurate output signal in the lower scale of the pressure range, where it is needed most.

Absolute Pressure Measurement

These Baratron® pressure transducers are referenced to vacuum for absolute pressure measurement. Applications include: vacuum furnaces, freeze-drying of fruits and vegetables, gas lasers, automotive component testing, bottle coatings, and vacuum distillation.

Corrosion Resistant Inconel® Construction

All-metal, all-welded construction exposes only Inconel and stainless steel to the gas media. This allows for high overpressure tolerances that reduce errors due to line pressure spikes. High burst pressure ratings contribute to overall system safety.

Accessories

Compatible Cables

Description	Compatibility	Price
RCB473S-1-10Manometer Cable, PDR-5B, PDR-D-1 or PDR-D-2 Display to Manometer Terminal Block, 10 ft., RoHS, Shielded	UNIVERSAL	$307
RCB2000S-1-M3Manometer Cable, PDR2000 controller to 626, 627, 628 or 722 Manometers, DB15, 30 ft., RoHS	UNIVERSAL	$557
RCB700S-2-10Manometer Cable, PDR-5B, PDR-D-1 or PDR-D-2 Display to 722 Manometer, DB9, 10 ft., RoHS, Shielded	UNIVERSAL	$352
RCB2000S-1-M1Manometer Cable, PDR2000 controller to 626, 627, 628 or 722 Manometers, DB15, 10 ft., RoHS, Shielded	UNIVERSAL	$389
RCB112S-2-10Manometer Cable, 651, 655, 660 or PR4000 Controllers to Manometers with Terminal Strip, 10 ft., RoHS, Shielded	UNIVERSAL	$184
RCB2000S-2-M1Manometer Cable, PDR2000 Controller to 722, 750, 850 or 852 Manometers, DB9, 10 ft., RoHS	UNIVERSAL	$368
RCB2000S-2-M2Manometer Cable, PDR2000 Controller to 722, 750, 850 or 852 Manometers, DB9, 20 ft., RoHS	UNIVERSAL	$473
RCB2000S-1-M2Manometer Cable, PDR2000 controller to 626, 627, 628 or 722 Manometers, DB15, 20 ft, RoHS.	UNIVERSAL	$609
RCB2000S-2-M3Manometer Cable, PDR2000 Controller to 722, 750, 850 or 852 Manometers, DB9, 30 ft., RoHS	UNIVERSAL	$609
RCB700S-1-10Manometer Cable, 660 or PR4000 Controllers to 727, 728, 740, 750 Manometers, 10 ft., RoHS, Shielded	UNIVERSAL	$389
RCB259S-5-10Manometer Cable, 651, 655, PR4000 Controllers to 631, 624, 625, 626, 627, 628, 722 (15 pin) Manometers, DB15, 10 ft., RoHS, Shielded	UNIVERSAL	$230
100016951Manometer Cable, 937B or 946 Controllers to 722 Manometers, DB9 Male to DB9 Female, 10 ft.	UNIVERSAL	$123
100016952Manometer Cable, 937B or 946 Controllers to 722 Manometers, DB9 Male to DB9 Female, 25 ft.	UNIVERSAL	$220
100016953Manometer Cable, 937B or 946 Controllers to 722 Manometers, DB9 Male to DB9 Female, 50 ft.	UNIVERSAL	$348

Power Supplies and Displays

Description	Compatibility	Price
AS11900G-03Pressure Input Module, 15 pin D-Sub Connector, 4 Channel	UNIVERSAL	$1,519
PR4000BF2V2Digital Power Supply, Display, 2 Channel, RS232, ±15VDC, 1.5 Amp	UNIVERSAL	$2,982
PR4000BF5V2Digital Power Supply, Display, 2 Channel, RS485, ±15VDC, 1.5 Amp	UNIVERSAL	$2,785
PR4000BF5V3Digital Power Supply, Display, 2 Channel, RS485, ±24VDC, 1.0 Amp	UNIVERSAL	$2,785
PR4000BF2V3Digital Power Supply, Display, 2 Channel, RS232, ±24VDC, 1.0 Amp	UNIVERSAL	$3,033
PR4000BS2V2Digital Power Supply, Display, 1 Channel, RS232, ±15VDC, 1.5 Amp	UNIVERSAL	$2,706
PR4000BS2V3Digital Power Supply, Display, 1 Channel, RS485, ±24VDC, 1.0 Amp	UNIVERSAL	$2,729
PDR2000AODigital Power Supply, Display, 2 Channels, RS232, ±15 VDC, 0.75 Amp	UNIVERSAL	$999
