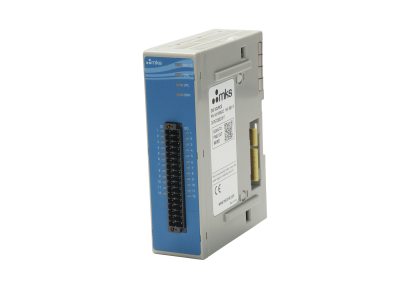

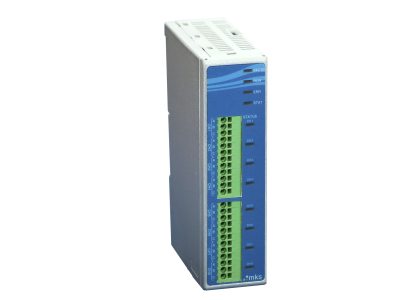

Pulse Width Modulating Slice Modules

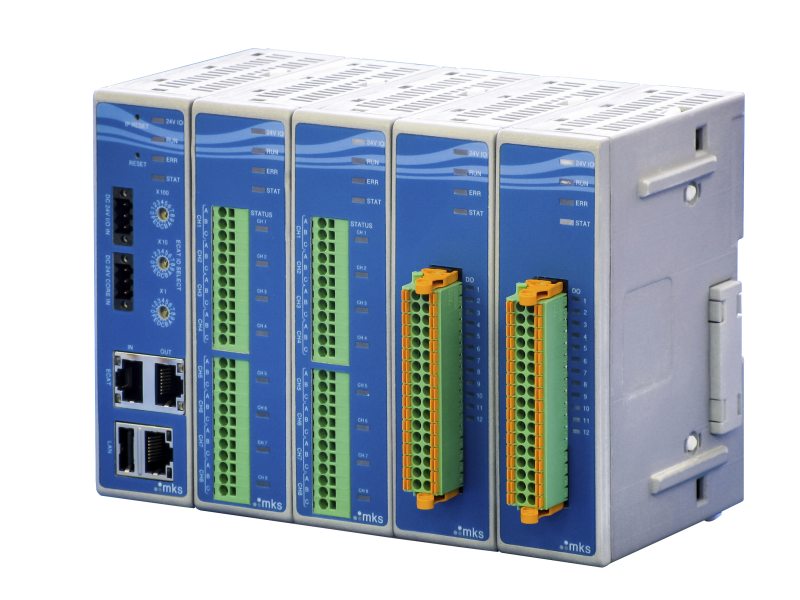

Our pulse width modulating slice for interfacing with solid state relays (SSR's) module is a compact and high density solution for integrating Pulse Width Modulating outputs with the MKS Automation Platform PAC or CM modules, or with the MultiTherm™ 2000. Each PWM module supports 12 digital inputs and 12 PWM outputs. PWM outputs are typically used in temperature control applications, where the Pulse Width Modulating output interfaces to a Solid State Relay (SSR), which is driving a heater.

Interface with solid state relays for temperature control
12 digital inputs and 12 PWM outputs
Fixed input terminal

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Output	Type	Connector	Avail.	Price
		AS11893G-41Pulse Width Modulating Slice Module	UNIVERSAL		Open collector sink/source	Pulse Width Modulating Slice Module	Terminal		$436

Specifications

Type
PWM Pulse Width Modulating Slice for Interfacing with Solid State Relays (SSR's)
Number of Inputs
12
Input Type
Sink or Source
Number of Outputs
12
Power Consumption
@ 200 mA ≥ 24 V_IO@ 2.5 Amp, 24 V_CORE@ 0.15 Amp Assuming all DOs are loaded
Control Method
0 = Synchronized Random Fire SCR
1 = Synchronized PWM zero cross
2 = PWM zero cross / no AC, 50 Hz
3 = PWM zero cross / no AC, 60 Hz
Input Isolation
2.5 kVrms
DI refresh rate
2.7 µSec
Debounce Filter
Fixed to 4 cycles of DI Refresh Rate (10.8 µSec)
Logic Level
24 VDC (8 - 30 VDC)
Maximum update rate
25 µSec
Output Type
Open collector sink/source
Output Resolution
0.01% Full Scale power
Protection
ESD to IEC 1000-4-2 ±4 kV contact, DC + 5% (each channel)
Pull Up/Down Value
22 K
Sink Input Logic Level
24 VDC ±5%
Sink Input Nominal Load Impedance
6 k-ohm
Sink Input Current, Maximum OFF
2.25 mA (10.7v )
Sink Input Current, Minimum ON
3.3 mA (4.5v)
Sink Input Current, Maximum ON
4.7 mA
Sink Output Maximum thermal current limit (ON)
2 A per bank of 6
Sink Output Minimum Available Current Sink (ON)
200 mA

Sink Output Maximum Leakage Current (OFF)
0.1 mA (output tied to 24v)
Sink Output Minimum Thermal Current Limit (ON)
1 A per bank of 6
Sink Output Maximum Inductive Load Energy, 1Hz Cycled
60 mJ
Sink Output Output Low Voltage (ON)
Max 1.1 V @ 200 mA
Source Input Logic level
24 V
Source Input High Voltage Range OFF
12.8 V (2.15mA)
Source Input Low Voltage Range ON
15 V (2.5 mA)
Source Input Input Current, Maximum ON
4.7 mA
Source Input Nominal Load Impedance
6 kOhm
Source Output High Voltage
Min 23.7 V @ 200mA
Source Output Maximum Thermal Current Limit (ON)
2 A per bank of 6
Source Output Maximum Leakage Current (OFF)
0.1 mA (output tied to Ground)
Source Output Minimum Thermal Current Limit (ON)
1 A per bank of 6
Source Output Maximum Inductive Load Energy, 1Hz Cycled
60 mJ
Source Output Minimum Available Current Source (ON)
200 mA
Operational Environment Temperature
0 to 55 °C, with 2 °C upper limit reduction per 1000 ft above sea level
Storage Temperature
-40 to 85°C
Altitude
up to 2000 meters
Humidity
5 - 85% non-condensing
Dimensions
35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
Mounting
DIN rail

Features

MKS Automation Platform

These modules are part of the MKS Automation Platform that provides a modular, scalable and configurable solution to meet your automation and control requirements. Designed to provide a complete automation solution to improve operational and productivity efficiencies, the Automation Platform enables faster implementations, provides lowest total cost of ownership, and improves utilization of existing tools and assets.
