ISO-KF Aluminum Long Weld Stub Vacuum Flanges
Overview
- 40 mm butt-weld stub
- Aluminum Type 6061T6 construction
- NW10 to NW50 flange sizes
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100310201 ISO-KF Weld Stub Flange, NW16, 0.5 in. Tube OD, 1.58 in. Length, Aluminum |
|
$13.13 |
|
|||
|

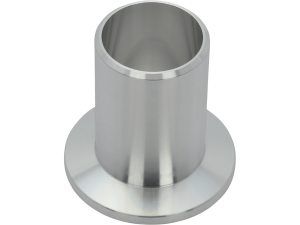

100310203 ISO-KF Weld Stub Flange, NW25, 1.0 in. Tube OD, 1.58 in. Length, Aluminum |
|
$14.01 |
|
|||
|

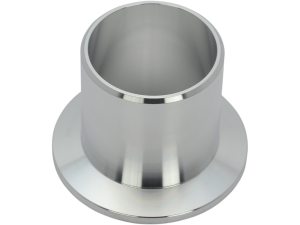

100310205 ISO-KF Weld Stub Flange, NW40, 1.5 in. Tube OD, 1.58 in. Length, Aluminum |
|
$17.64 |
|
|||
|

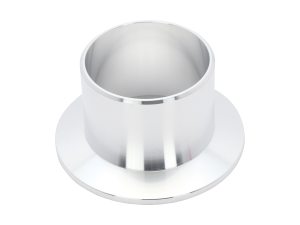

100310206 ISO-KF Weld Stub Flange, NW50, 2.0 in. Tube OD, 1.58 in. Length, Aluminum |
|
$19.40 |
|
|||
|

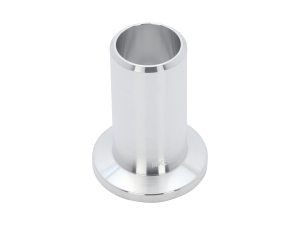

100310211 ISO-KF Weld Stub Flange, NW16, 0.75 in. Tube OD, 1.58 in. Length, Aluminum |
|
$12.46 |
|
Specifications
-
Component TypeLong Weld Stub Vacuum Flange
-
SeriesSeries 31
-
MaterialAluminum
-
Flange TypeISO-KF
-
Length1.58 in. (40 mm)
Features
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
