ISO-KF Aluminum Short Weld Stub Vacuum Flanges

ISO-KF Aluminum Short Weld Stub Vacuum Flanges

Products
Features
Resources
Contact Us

Overview

Aluminum short weld stubs have a 13 or 19 mm tube stub and a NW10 to NW50 size ISO-KF vacuum flange. They are used to butt-weld an ISO-KF flange to Stainless Steel tubing.

13 or 19 mm butt-weld stub
Aluminum Type 6061T6 construction
NW10 to NW50 flange sizes

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Tube OD	Length	Wall Thickness	Availability	Featured Item	Price		Brand
		100310101 ISO-KF Weld Stub Flange, NW16, 0.5 in. Tube OD, 0.5 in. Length, Aluminum $9.48 Show	100310101 ISO-KF Weld Stub Flange, NW16, 0.5 in. Tube OD, 0.5 in. Length, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW16	0.5 in.	0.50 in. (12.7 mm)	0.065 in. (1.7 mm)	Show		$9.48
		100310103 ISO-KF Weld Stub Flange, NW25, 1.0 in. Tube OD, 0.5 in. Length, Aluminum $10.36 Show	100310103 ISO-KF Weld Stub Flange, NW25, 1.0 in. Tube OD, 0.5 in. Length, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	1.0 in.	0.50 in. (12.7 mm)	0.065 in. (1.7 mm)	Show		$10.36

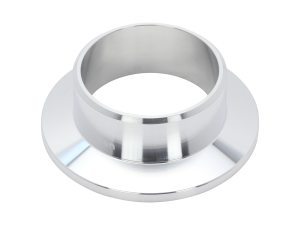

		100310105 ISO-KF Weld Stub Flange, NW40, 1.5 in. Tube OD, 0.75 in. Length, Aluminum $13.13 Show	100310105 ISO-KF Weld Stub Flange, NW40, 1.5 in. Tube OD, 0.75 in. Length, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	1.5 in.	0.75 in. (38.1 mm)	0.083 in. (2.1 mm)	Show		$13.13

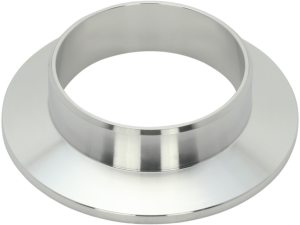

		100310106 ISO-KF Weld Stub Flange, NW50, 2.0 in. Tube OD, 0.75 in. Length, Aluminum $20.84 Show	100310106 ISO-KF Weld Stub Flange, NW50, 2.0 in. Tube OD, 0.75 in. Length, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	2.0 in.	0.75 in. (38.1 mm)	0.083 in. (2.1 mm)	Show		$20.84

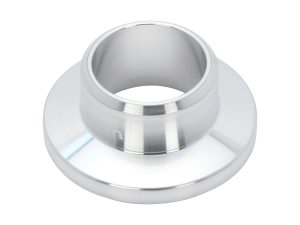

		100310111 ISO-KF Weld Stub Flange, NW16, 0.75 in. Tube OD, 0.5 in. Length, Aluminum $9.48 Show	100310111 ISO-KF Weld Stub Flange, NW16, 0.75 in. Tube OD, 0.5 in. Length, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW16	0.75 in.	0.50 in. (12.7 mm)	0.065 in. (1.7 mm)	Show		$9.48

Show All

Specifications

Component Type

Short Weld Stub Vacuum Flange
Series

Series 31

Material

Aluminum
Flange Type

ISO-KF

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
