ISO-KF Stainless Steel Conical Reducers

ISO-KF Stainless Steel Conical Reducers

Products
Features
Resources
Contact Us

Overview

Stainless steel conical reducers have different sized ISO-KF flange sizes on each end. A high conductance conical profile is used between the two flange sizes.

High conductance conical profile
304 Stainless Steel construction
NW25-NW50 to NW16-NW40

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Flange Size 2	Inner Diameter	Availability	Featured Item	Price		Brand
		100313711 REDUCER,NW16,TO NW25,SST Conical Flange Reducer, ISO-KF Size NW25 to NW16, 304 Stainless Steel $54 Show	100313711 REDUCER,NW16,TO NW25,SST Conical Flange Reducer, ISO-KF Size NW25 to NW16, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	NW16	0.62 in. (16 mm)	Show		$54

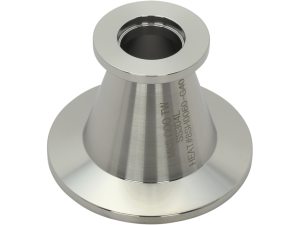

		100313712 Conical Flange Reducer, ISO-KF Size NW40 to NW16, 304 Stainless Steel $60 Show	100313712 Conical Flange Reducer, ISO-KF Size NW40 to NW16, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	NW16	0.62 in. (16 mm)	Show		$60

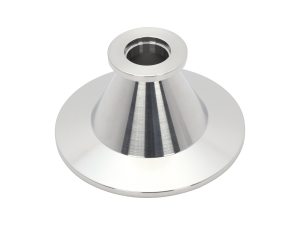

		100313713 Conical Flange Reducer, ISO-KF Size NW50 to NW16, 304 Stainless Steel $67 Show	100313713 Conical Flange Reducer, ISO-KF Size NW50 to NW16, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	NW16	0.62 in. (16 mm)	Show		$67

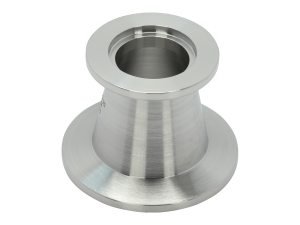

		100313714 REDUCER,KF,NW25-NW40,304L Conical Flange Reducer, ISO-KF Size NW40 to NW25, 304 Stainless Steel $58 Show	100313714 REDUCER,KF,NW25-NW40,304L Conical Flange Reducer, ISO-KF Size NW40 to NW25, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	NW25	0.87 in. (22 mm)	Show		$58

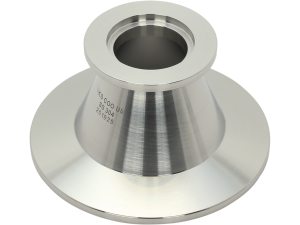

		100313715 Conical Flange Reducer, ISO-KF Size NW50 to NW25, 304 Stainless Steel $62 Show	100313715 Conical Flange Reducer, ISO-KF Size NW50 to NW25, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	NW25	0.87 in. (22 mm)	Show		$62
		100313716 Conical Flange Reducer, ISO-KF Size NW50 to NW40, 304 Stainless Steel $67 Show	100313716 Conical Flange Reducer, ISO-KF Size NW50 to NW40, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	NW40	1.34 in. (34 mm)	Show		$67

Show All

Specifications

Component Type

Conical Reducer
Series

Series 31
Material

304 Stainless Steel

Flange Type

ISO-KF
Length

1.57 in. (40 mm)

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
