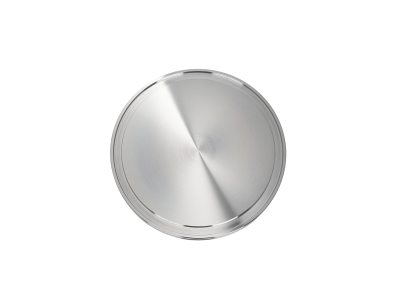

ISO-MF Blank Vacuum Flanges
Overview
ISO-MF blank-off flanges are used to close off unused NW63 to NW500 ISO-MF vacuum flange ports. They are compatible with ISO single and double flange clamps or rotatable bolt rings.
- Close off unused ISO-MF flange ports
- 304 Stainless Steel construction
- NW63 to NW500 flange sizes
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100760106 ISO-MF Blank Vacuum Flange, NW63 Size, 304 Stainless Steel |
|
$69 |
|
|||
|
100760108 ISO-MF Blank Vacuum Flange, NW80 Size, 304 Stainless Steel |
|
$45 |
|
|||
|
100760110 ISO-MF Blank Vacuum Flange, NW100 Size, 304 Stainless Steel |
|
$101 |
|
|||
|
100760116 ISO-MF Blank Vacuum Flange, NW160 Size, 304 Stainless Steel |
|
$136 |
|
|||
|
|
100760120 ISO-MF Blank Vacuum Flange, NW200 Size, 304 Stainless Steel | $219 |
|
||||
|
|
100760125 ISO-MF Blank Vacuum Flange, NW250 Size, 304 Stainless Steel | $497 |
|
||||
|
|
100760132 ISO-MF Blank Vacuum Flange, NW320 Size, 304 Stainless Steel | $3,614 |
|
||||
|
|
100760140 ISO-MF Blank Vacuum Flange, NW400 Size, 304 Stainless Steel | $3,153 |
|
||||
|
|
100760150 ISO-MF Blank Vacuum Flange, NW500 Size, 304 Stainless Steel | $3,805 |
|
Specifications
-
Component TypeBlank-off Flange
-
SeriesSeries 76
-
Flange TypeISO-MF
-
Material304 Stainless Steel
Features
Resources
Literature
- Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)
