ISO-MF Long Weld Stub Vacuum Flanges

ISO-MF Long Weld Stub Vacuum Flanges

Products
Features
Resources
Contact Us

Overview

ISO-MF flange long weld stubs have a 100 mm tube stub and a NW63 to NW500 size ISO vacuum flange. They are used to butt-weld an ISO-MF flange to Stainless Steel tubing.

100 mm butt-weld stub
304 Stainless Steel construction
NW63 to NW500 flange sizes

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Tube OD	Inner Diameter	Availability	Featured Item	Price		Brand
		100760406 ISO-MF Weld Stub Flange, NW63, 2.5 in. Tube OD, 3.94 in. Length, 304 S.S. $115 Show	100760406 ISO-MF Weld Stub Flange, NW63, 2.5 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW63	2.5 in.	2.37 in. (60 mm)	Show		$115
		100760408 ISO-MF Weld Stub Flange, NW80, 3.0 in. Tube OD, 3.94 in. Length, 304 S.S. $129 Show	100760408 ISO-MF Weld Stub Flange, NW80, 3.0 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW80	3.0 in.	2.87 in. (73 mm)	Show		$129

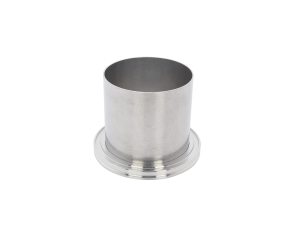

		100760410 ISO-MF Weld Stub Flange, NW100, 4 in. Bore, 0.065 in. Wall, 3.94 in. Length $139 Show	100760410 ISO-MF Weld Stub Flange, NW100, 4 in. Bore, 0.065 in. Wall, 3.94 in. Length	UNIVERSAL	0.0	1.0	0.0		0.0	NW100	4.0 in.	3.87 in. (96 mm)	Show		$139

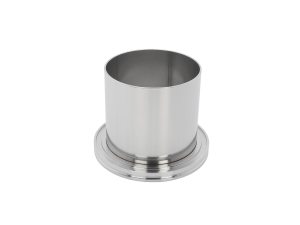

		100760411 ISO-MF Weld Stub Flange, NW100, 4 in. Bore, 0.083 in. Wall, 3.94 in. Length $201 Show	100760411 ISO-MF Weld Stub Flange, NW100, 4 in. Bore, 0.083 in. Wall, 3.94 in. Length	UNIVERSAL	0.0	1.0	0.0		0.0	NW100	4.0 in.	3.87 in. (96 mm)	Show		$201

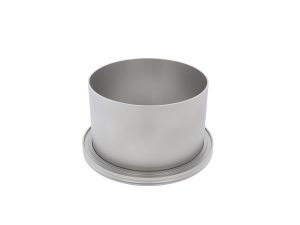

		100760416 ISO-MF Weld Stub Flange, NW160, 6.0 in. Tube OD, 3.94 in. Length, 304 S.S. $198 Show	100760416 ISO-MF Weld Stub Flange, NW160, 6.0 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW160	6.0 in.	5.83 in. (146 mm)	Show		$198
		100760420 ISO-MF Weld Stub Flange, NW200, 8.0 in. Tube OD, 3.94 in. Length, 304 S.S. $422 Show	100760420 ISO-MF Weld Stub Flange, NW200, 8.0 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW200	8.0 in.	7.76 in. (197 mm)	Show		$422
		100760425 ISO-MF Weld Stub Flange, NW250, 10 in. Tube OD, 3.94 in. Length, 304 S.S. $750 Show	100760425 ISO-MF Weld Stub Flange, NW250, 10 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW250	10.0 in.	9.75 in. (248 mm)	Show		$750
		100760432 ISO-MF Weld Stub Flange, NW320, 12.75 in. Tube OD, 3.94 in. Length, 304 S.S. $2,178 Show	100760432 ISO-MF Weld Stub Flange, NW320, 12.75 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW320	12.75 in.	12.42 in. (315 mm)	Show		$2,178
		100760440 ISO-MF Weld Stub Flange, NW400, 16 in. Tube OD, 3.94 in. Length, 304 S.S. $2,666 Show	100760440 ISO-MF Weld Stub Flange, NW400, 16 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW400	16.0 in.	15.62 in. (397 mm)	Show		$2,666
		100760450 ISO-MF Weld Stub Flange, NW500, 20 in. Tube OD, 3.94 in. Length, 304 S.S. $4,236 Show	100760450 ISO-MF Weld Stub Flange, NW500, 20 in. Tube OD, 3.94 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW500	20.0 in.	19.62 in. (498 mm)	Show		$4,236

Show All

Specifications

Component Type

Weld Stub Flange
Series

Series 76
Flange Type

ISO-MF

Material

304 Stainless Steel
Length

3.94 in. (100 mm)

Features

Resources

Literature

Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)
