ISO-MF to ISO-KF Step Profile Flange Adapters
Overview
ISO-MF flange adapters use a step profile to adapt ISO-MF vacuum flanges to smaller size ISO-KF flanges.
- Adapt ISO-MF flanges to ISO-KF flanges
- Step profile
- 304 Stainless Steel construction
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100762606 ISO-MF Flange Adapter, NW63 ISO-MF to NW40 ISO-KF, Step Profile |
|
$185 |
|
|||
|

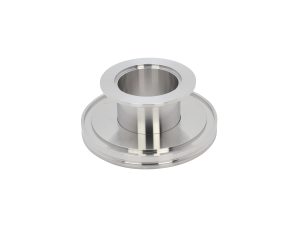

100762608 ISO-MF Flange Adapter, NW80 ISO-MF to NW50 ISO-KF, Step Profile |
|
$234 |
|
|||
|
|
100762616 ISO-MF Flange Adapter, NW80 ISO-MF to NW40 ISO-KF, Step Profile | $218 |
|
||||
|

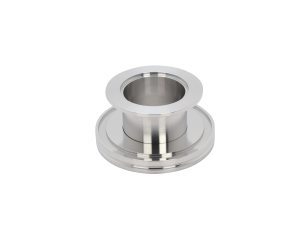

100762617 ISO-MF Flange Adapter, NW63 ISO-MF to NW50 ISO-KF, Step Profile |
|
$198 |
|
|||
|
100762618 ISO-MF Flange Adapter, NW100 ISO-MF to NW50 ISO-KF, Step Profile |
|
$269 |
|
|||
|

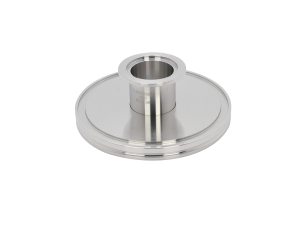

100762620 ISO-MF Flange Adapter, NW100 ISO-MF to NW40 ISO-KF, Step Profile |
|
$242 |
|
Specifications
-
Component TypeStep Profile Flange Adapter
-
SeriesSeries 76
-
Flange TypeISO-MF to ISO-KF
-
Material304 Stainless Steel
-
Length1.77 in. (45 mm)
Features
Resources
Literature
- Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)
