ISO-MF Vacuum Flange Tees

ISO-MF Vacuum Flange Tees

Products
Features
Resources
Contact Us

Overview

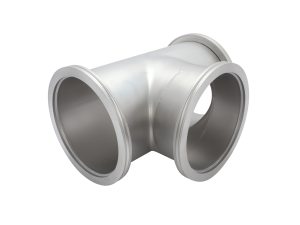

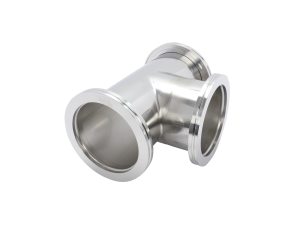

These tee fittings have the same size ISO-MF vacuum flange on all three ports. Tees are a common component of vacuum piping systems and are used to provide a 90 degree branch.

Tees for same size ISO-MF flanges
304 Stainless Steel construction
NW63 to NW320 flange sizes
Standard face to centerline distance

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Length	Modulus	Availability	Featured Item	Price		Brand
		100761406 Tee Fitting, NW63 Size ISO-MF Vacuum Flange, 304 Stainless Steel $370 Show	100761406 Tee Fitting, NW63 Size ISO-MF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW63	6.92 in. (176 mm)	3.46 in. (88 mm)	Show		$370
		100761408 Tee Fitting, NW80 Size ISO-MF Vacuum Flange, 304 Stainless Steel $497 Show	100761408 Tee Fitting, NW80 Size ISO-MF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW80	7.72 in. (196 mm)	3.86 in. (98 mm)	Show		$497
		100761410 Tee Fitting, NW100 Size ISO-MF Vacuum Flange, 304 Stainless Steel $514 Show	100761410 Tee Fitting, NW100 Size ISO-MF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW100	8.50 in. (216 mm)	4.25 in. (108 mm)	Show		$514
		100761416 Tee Fitting, NW160 Size ISO-MF Vacuum Flange, 304 Stainless Steel $784 Show	100761416 Tee Fitting, NW160 Size ISO-MF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW160	10.86 in. (276 mm)	5.43 in. (138 mm)	Show		$784
		100761420 Tee Fitting, NW200 Size ISO-MF Vacuum Flange, 304 Stainless Steel $1,323 Show	100761420 Tee Fitting, NW200 Size ISO-MF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW200	13.22 in. (336 mm)	6.61 in. (168 mm)	Show		$1,323
		100761425 Tee Fitting, NW250 Size ISO-MF Vacuum Flange, 304 Stainless Steel $2,041 Show	100761425 Tee Fitting, NW250 Size ISO-MF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW250	16.38 in. (416 mm)	8.19 in. (208 mm)	Show		$2,041
		100761432 Tee Fitting, NW320 Size ISO-MF Vacuum Flange, 304 Stainless Steel $5,746 Show	100761432 Tee Fitting, NW320 Size ISO-MF Vacuum Flange, 304 Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW320	25.20 in. (640 mm)	12.60 in. (320 mm)	Show		$5,746

Show All

Features

Resources

Literature

Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)
