MKS PAC Power Supply Modules are a compact solution for supplying additional power to the MKS Automation Platform. Each PWR module requires two 24 VDC power inputs rated at 5A for the Core and rated at 12A current for the IOs. The Power Supply Module is required to power to the MKS Automation Platform PAC family.
- Supplies additional power to the MKS Automation Platform
- Requires 24 VDC power
- Compact solution See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

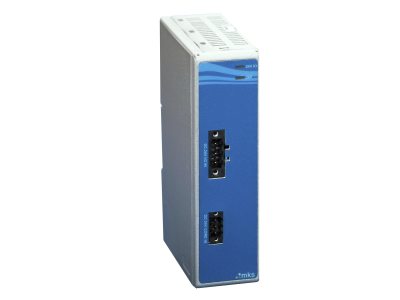

 | AS11840G-02Power Supply Module, 24VDC |
Specifications
- TypePower Supply Module
- Number of IO modules supported by Power Supply5, Max 20 MKS PAC I/O modules
- Output Voltage Range18-30 VDC
- CPU Core Power Connector(3-pin connector P2)
- CPU Voltage18-30 VDC
5 Amps(max)
Fast Electronic Over current protection shutdown @ 5 Amp @ 2 msec
Poly fuse 30 V @ 5 Amps - IO Power3-pin connector P1
- Input Voltage18-30 VDC
12 Amps(max)
Fast Electronic Over current protection shutdown @ 12.5 Amps @ 2msec
Fast blow fuse @ 15 Amp (trip 30 Amp @ 2 msec)
- Operating Temperature0 to 50°C
- Storage Temperature-40 to 85°C
- AltitudeUp to 2000 meters
- Humidity5-95% (non-condensing)
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
- ComplianceVibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos: IP 40 or higher
Approvals: CE
Features
MKS Automation Platform
These modules are part of the MKS Automation Platform that provides a modular, scalable and configurable solution to meet your automation and control requirements. Designed to provide a complete automation solution to improve operational and productivity efficiencies, the Automation Platform enables faster implementations, provides lowest total cost of ownership, and improves utilization of existing tools and assets.
Resources
Literature
MKS Automation Platform(474.7 kB, PDF)
Manuals
PWR Power Supply Module Pin-outs(66.5 kB, PDF)
Drawings & CADs
MKS PWR Power Supply Module Model File(36.5 MB, STEP)
