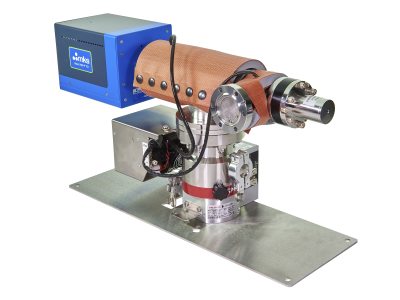

Vision 2000-P™ XD High Sensitivity Residual Gas Analyzers for Select Pressure & PVD Processes
Overview

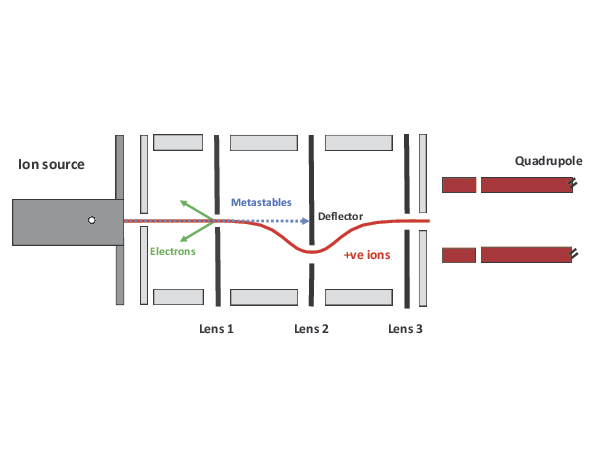

The Vision 2000-P™ XD system is designed to monitor critical gas species at a selected pressure, from base vacuum up to 10 Torr. It is ideally suited to monitor vacuum integrity, contamination levels, or dynamics of specific process-related gases within semiconductor and thin film PVD process tools, and to alert operators about conditions that can negatively impact product yield. The Vision 2000-P XD also incorporates V-lens™ technology, taking the proven performance of the Vision 2000-P system to a new level of sensitivity and reliability, previously unachievable with conventional quadrupole mass spectrometry systems (QMS).
- PVD contamination monitoring (inc. hydrocarbons) to sub-ppm levels

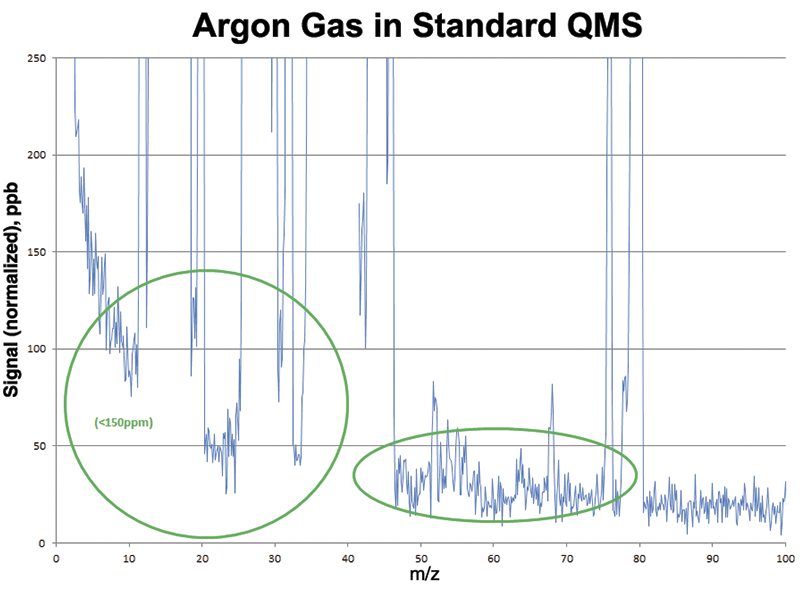

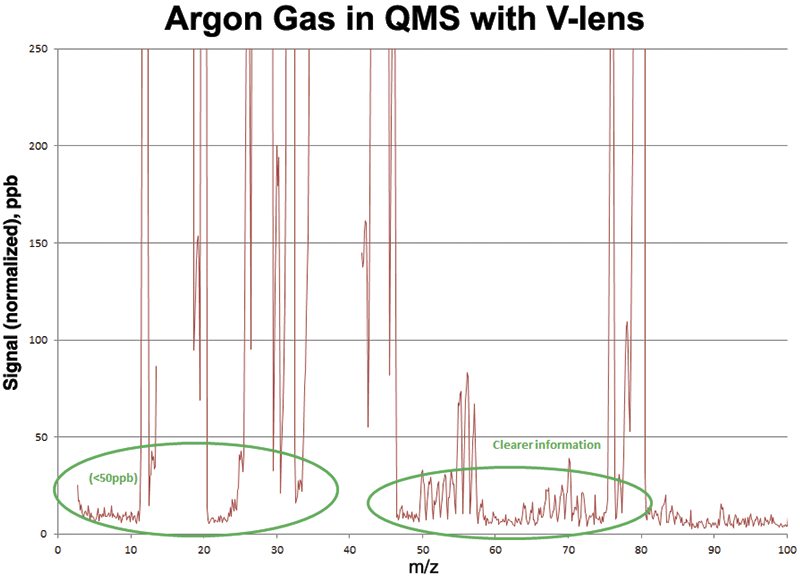

- Cleaner baseline and lower noise across the mass scale
- Up to 10 times increased sensitivity at lower masses (<15ppb)

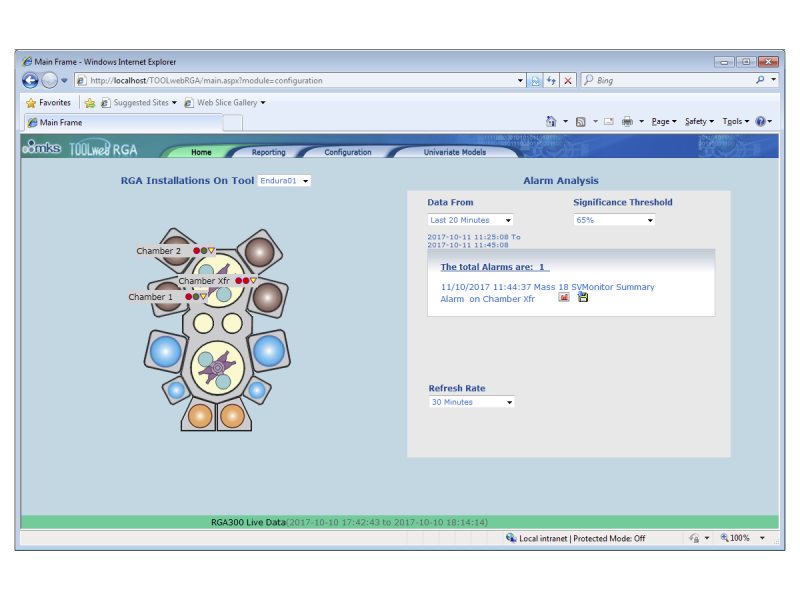

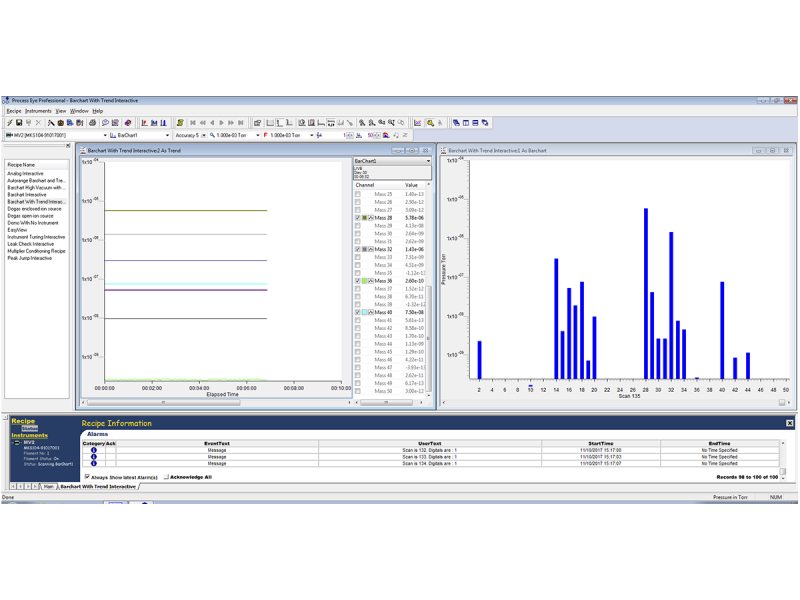

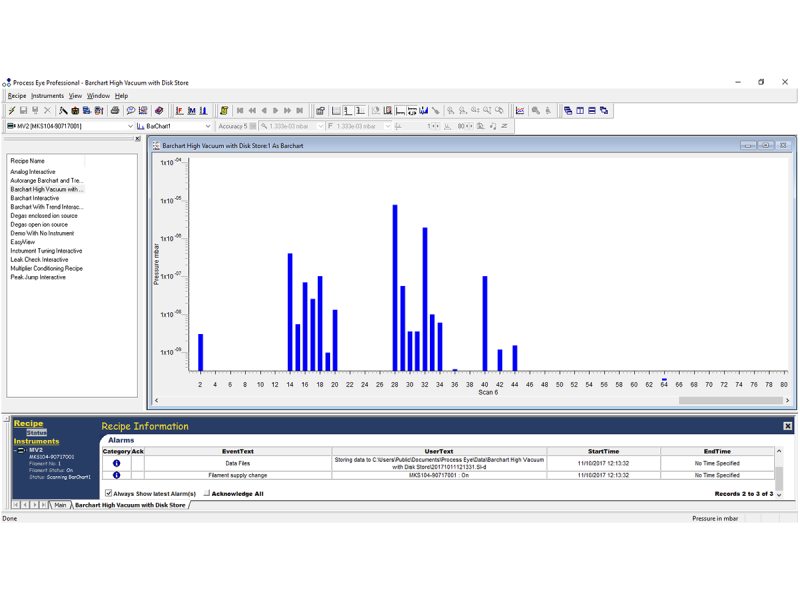

- Process Eye™ Professional software for data acquisition, interpretation, recall & alarming
- Pressure selection and response time optimized with inlet valve and orifice options
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
VISION-2000-P-XD Process Monitor, High Sensitivity, Select Pressure and PVD Applications |
|
Specifications
-
Mass Range1-100, 1-200, or 1-300 amu
-
Ion SourceHigh conductance closed ion source
-
FilamentsReplaceable twin Tungsten or Thoria filaments
-
Mass FilterDouble filter (1'' “RF only” pre-filter with 4'' main filter)
-
DetectorDual (Faraday and secondary electron multiplier)
-
Maximum Analyzer Operating Pressure7.6e-3 Torr (1e-2 mbar) at the ion source inlet (standard), higher pressure optional
-
Minimum Detectable Partial Pressure<2e-11 Torr (for total pressures <1 x e-4 Torr on inlet)
-
Minimum Detectable Concentration<15ppb (specified with Argon or Nitrogen for non-interfering peaks)
-
Mass StabilityBetter than ±0.1 amu over 8 hours
-
ResolutionBetter than 10% valley between peaks of equal height throughout the mass range
-
Mounting FlangeDN35CF (70mm/2.75'' OD) Conflat® flange
-
Vacuum Hardware60 l/s turbomolecular pump with high conductance analyzer housing, inlet system, right angle valve, automated vacuum controller (RVC) completely interlocked and integrated.
-
Analyzer Housing Base PressureBetter than 5e-9 Torr after bakeout
-
Bakeout Temperature and Bakeout JacketIncluded for 180°C bakeout
-
Operating TemperatureElectronics: 10-40°C, 80% RH (non-condensing)
-
Weight33 lbs. (15 kg) to bolt on Process System
-
Mobile RGA PlatformOptional RGA trolley to improve versatility (footprint 18x24'', 455x604 mm)
-
Pneumatics60-80 psig CDA
-
Power Requirements88-264 VAC, 47/63 Hz, 600 Watts
-
LED Status IndicationInterlock status, filament emission, SEM, power and communications
-
I/O Capability4 analog inputs and 2 outputs (plus 1 dedicated gauge input). Optional support for a large number of both analog and digital inputs and outputs, including relay control.
-
Other FacilitiesLeak check headset socket, external filament trip socket, instrument reset
-
SoftwareProcess Eye Professional fully network compatible control platform generating under 32bit or 64bit Microsoft® Windows® XP, Vista, Server 2008 or Windows 7* (*recommended)
-
CommunicationEthernet CAT-5e
-
PC RequirementsIntel® Pentium IV® or AMD Athlon XP 1.2GHz, 1GB RAM, 120 GB hard drive
-
Simultaneous Multi-SensorProcess Eye Professional client/server configuration offers flexible multi-sensor operation process system and customer requirements.
-
Shipping Weight44 lbs (20 Kg); can vary depending upon configuration.
-
Foreline PumpDry diaphragm standard; Other options available.
-
ComplianceCE
